Chevy Silverado Brake Line Set 2002 3500 Ext Cab 8ft Bed 6.0L BLC-151-SS2B Stainless Steel
Chevy Silverado Brake Line Set 2002 3500 Ext Cab 8ft Bed 6.0L BLC-151-SS2B Stainless Steel
Delivery Time & Rates
Install this pre bent 2002 Silverado brake line set in no time!

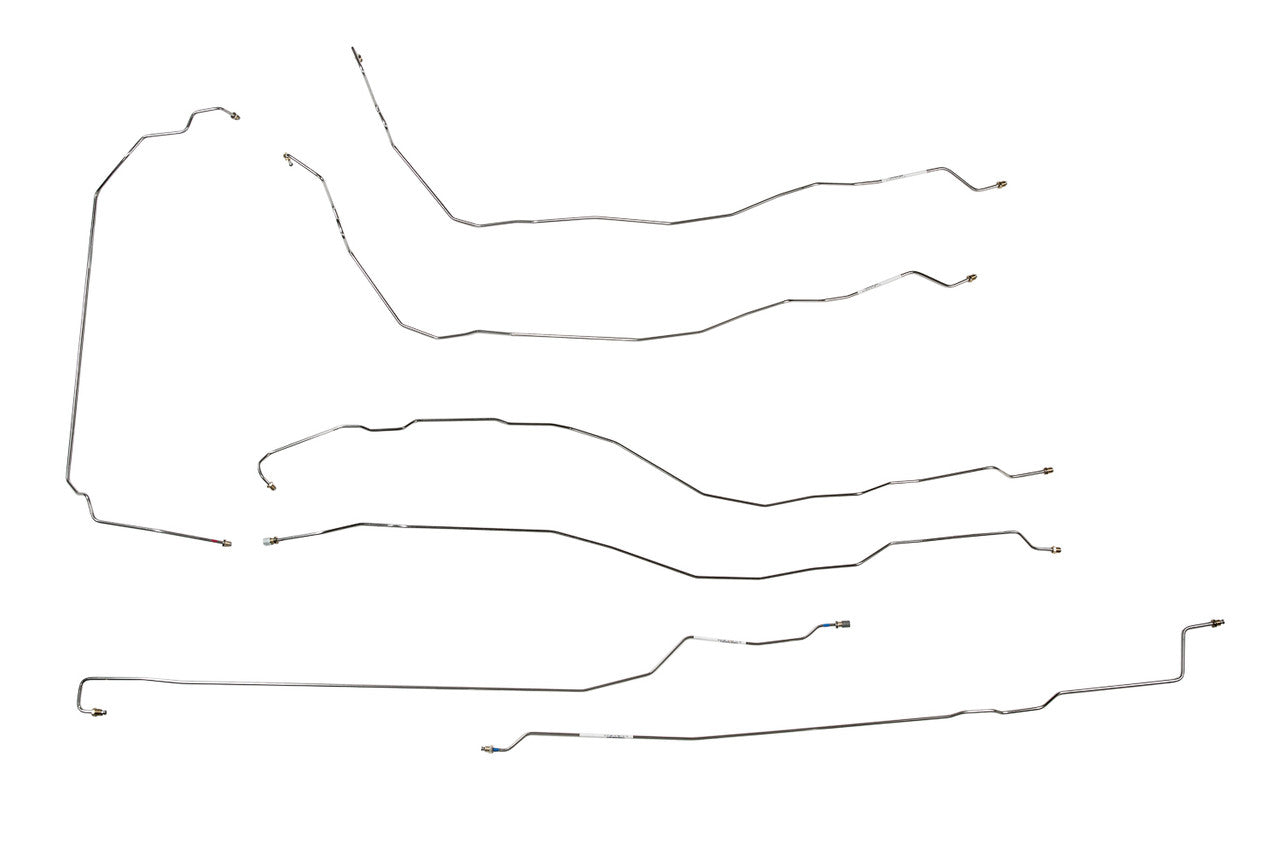

Stainless Steel Brake Line Set Chevy Silverado 3500 SRW 2002 Ext Cab 8ft Bed for 6.0L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC149-01-SS, BLC149-02-SS, BLC125-03-SS, BLC149-04A-SS, BLC151-05A-SS and BLC151-05B-SS. See the video below on how to remove the shipping bend
- Weight: 6

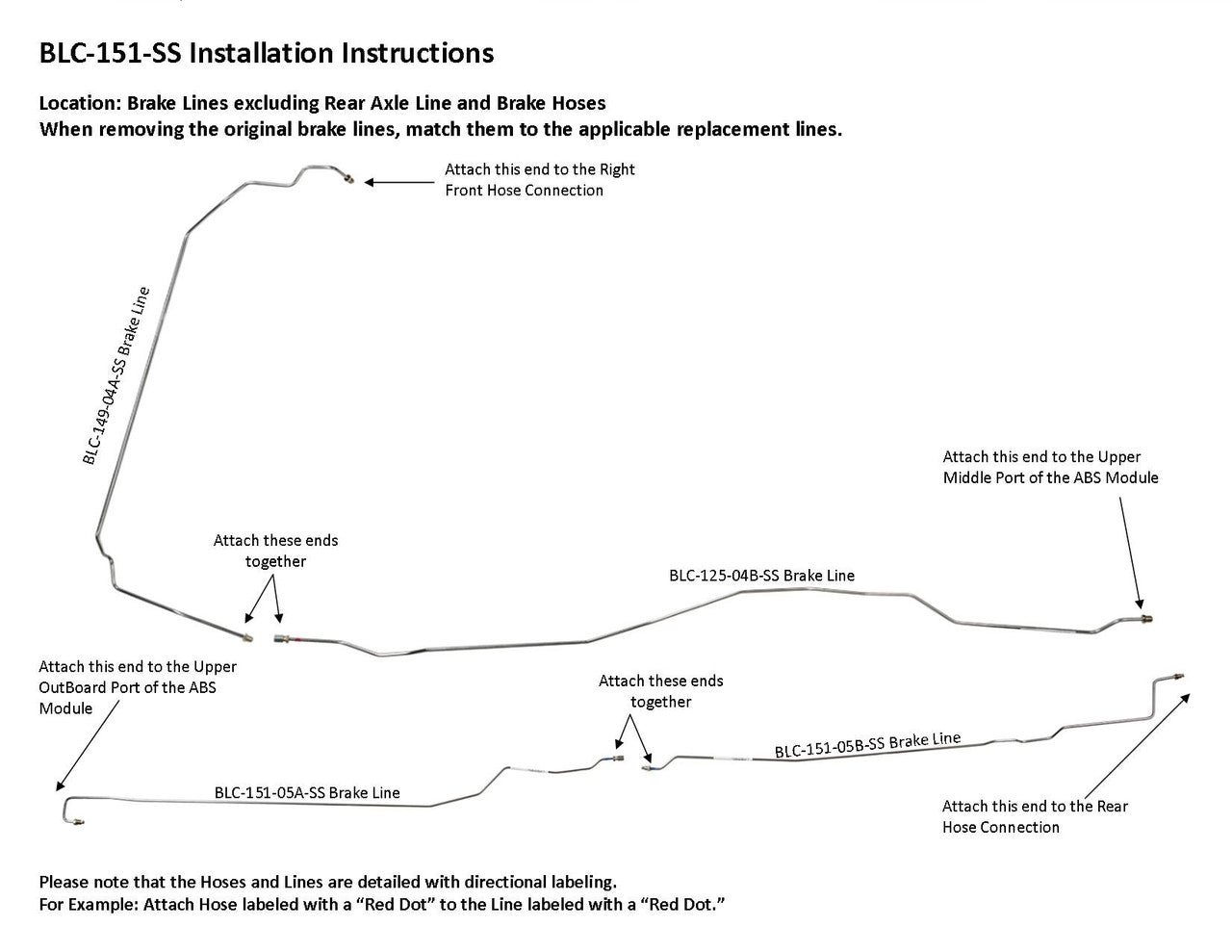

- Installation Instructions
Complete set excluding Hoses and Rear Axle Set

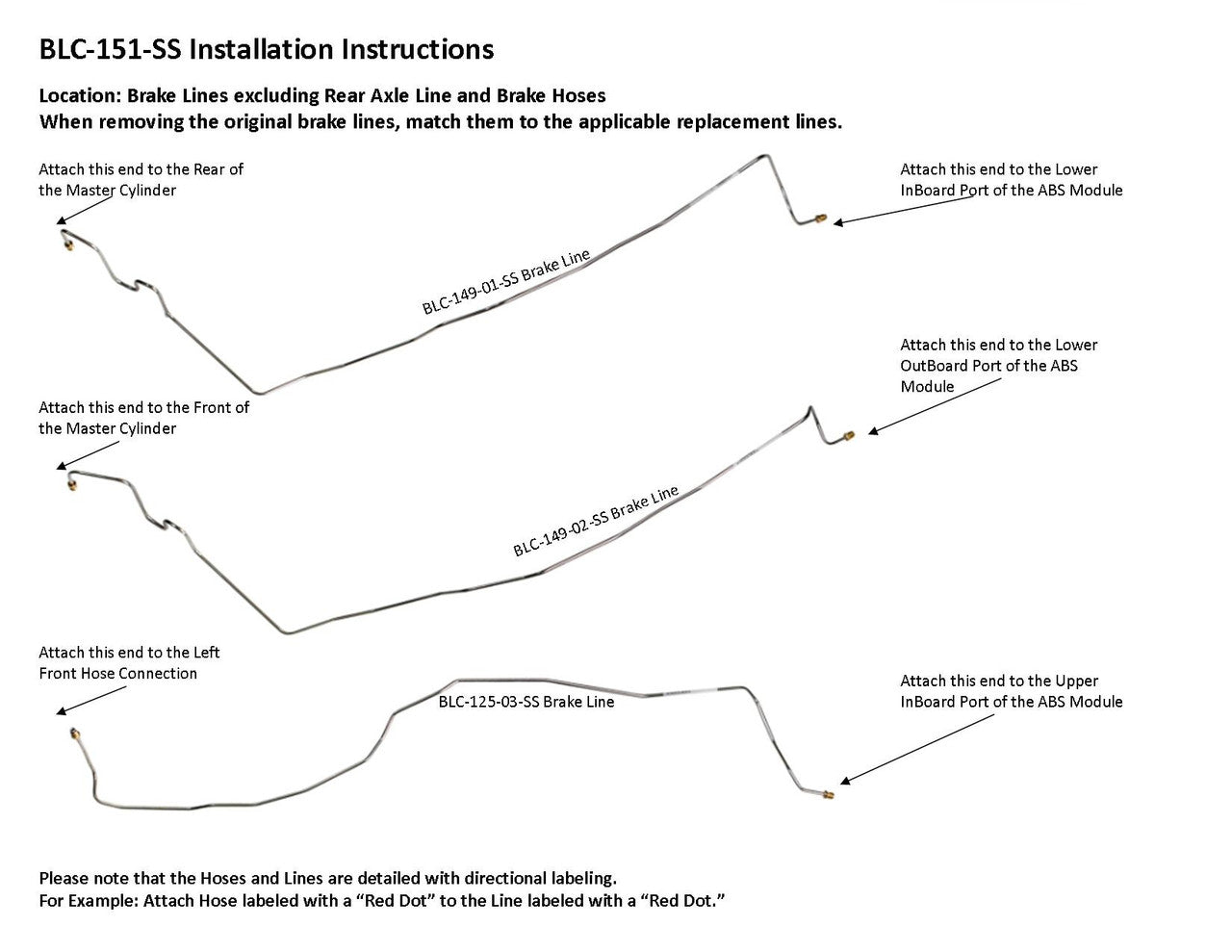

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of the ABS Module, 1 Master Secondary Line from Front of Master Cylinder to Lower Outboard Port of the ABS Module, Left Front Line from Hose Connection to Upper Inboard Port of the ABS, Right Front Line from Hose Connection to Upper Middle Port of the ABS (2 easy to install sections), Rear Line from Hose Connection to Upper Outboard Port of the ABS Module (2 easy to install sections), Excludes Rear Axle Crossover Line
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
