Name: Chevy Silverado 1500 Transmission Line Set 2012 4.3L TCL-161-SS1E Stainless Steel
Brand: Lines - To - Go
SKU: TCL-161-SS1E
Price: 144.95 USD
Availability: InStock

Year Make & Model

Chevy Silverado 1500 Transmission Line Set 2012 4.3L TCL-161-SS1E Stainless Steel

Price

SALE:

Save $36.24

Delivery Time & Rates

Install this pre bent 2012 transmission cooler line set in no time!

Transmission Cooler Line Chevrolet Silverado 1500 2012 w/o Auxiliary Cooler 4.3L

Please note: You may want to check the condition of your transmission connectors before receiving your new transmission lines as these often will seize over time and you will not be able to install your new transmission lines when they arrive. Part #6469-01

SKU: TCL-161-SS1E

Weight: 4
Installation Instructions

Box Dimensions 46" x 11" x 7"

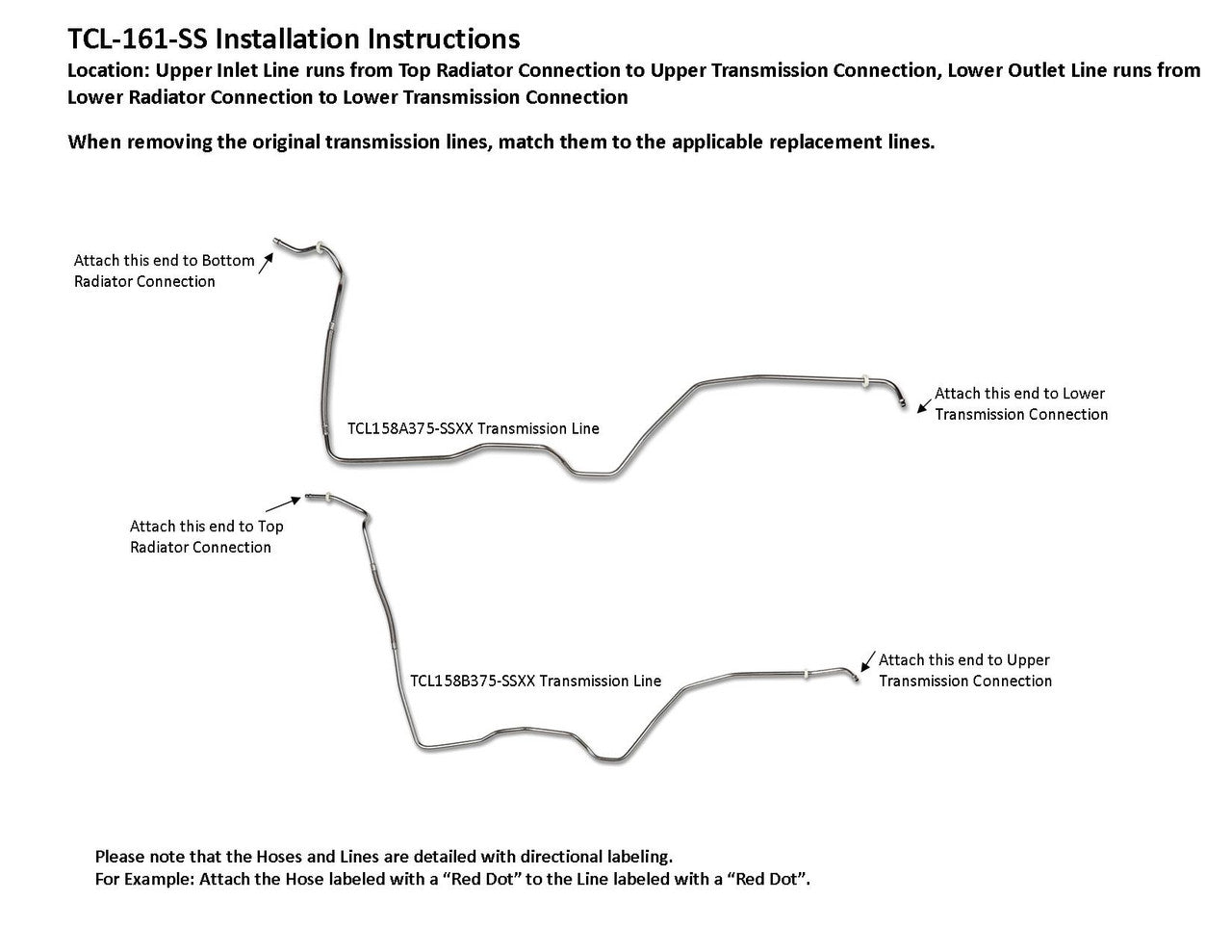

Installation Instructions

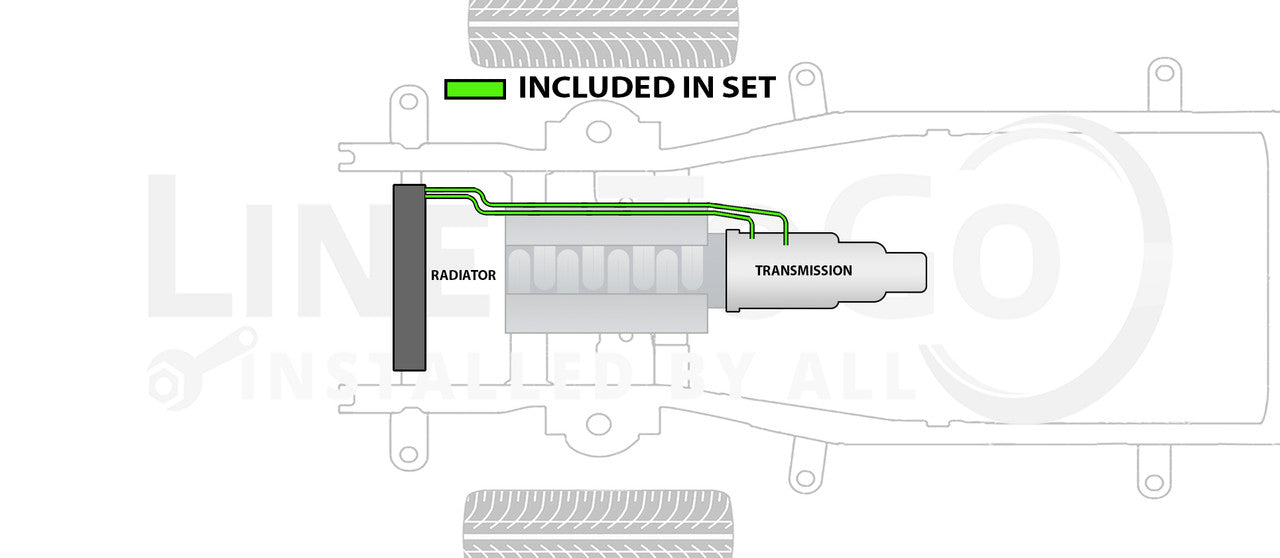

Upper Inlet Line runs from Top Radiator Connection to Upper Transmission Connection, Lower Outlet Line runs from Lower Radiator Connection to Lower Transmission Connection

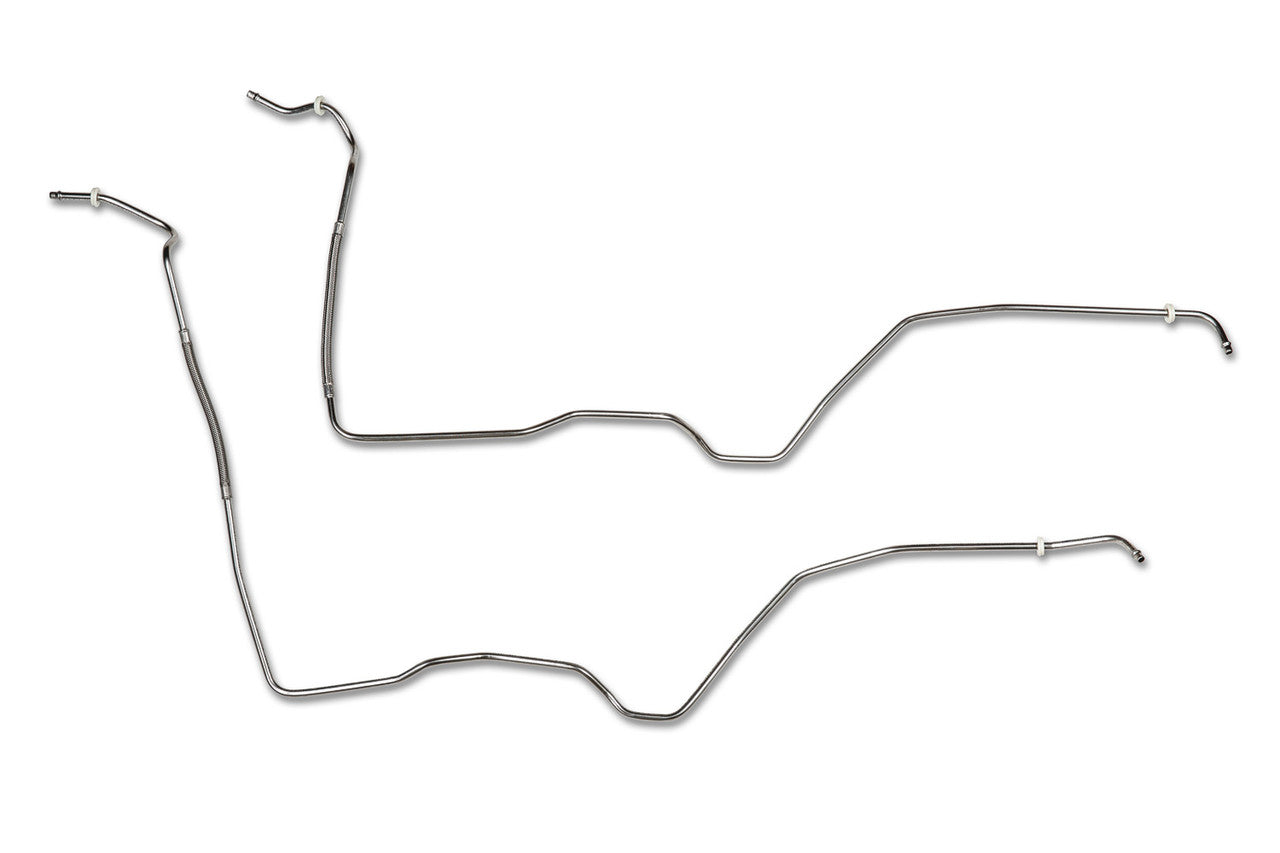

1 Upper Inlet Line 3/8", 1 Lower Outlet Line 3/8"

25999417, 22802047

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
