Chevy S10 Pick Up Front Fuel Line Set 2002 4WD 4.3L FL441-D2F
Automatic
Chevy S10 Pick Up Front Fuel Line Set 2002 4WD 4.3L FL441-D2F
Automatic
Delivery Time & Rates
Fuel Line Set 2002 Chevy S10 Pick UP 4WD 4.3L Automatic
Please Note: This is more difficult to install than the average set of front fuel lines as the transmission cross member should be removed and the transmission/engine assembly needs to be angled down to make the installation
FL442-A is another replacement option. The lines are made from Stainless Steel Braided Teflon which is flexible and can be routed between the engine and the fire wall down over and along the transmission and transfer case
Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them
Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines
If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector

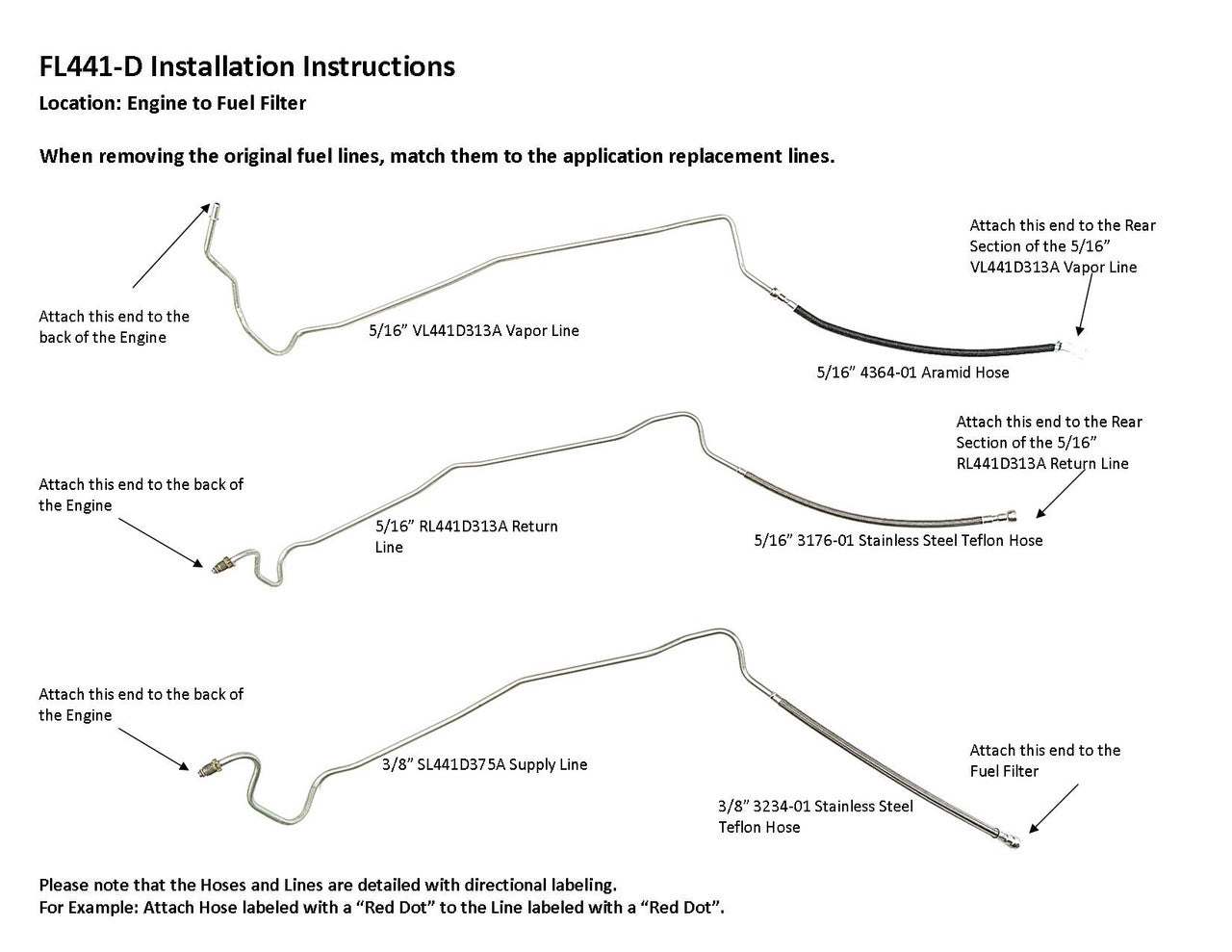

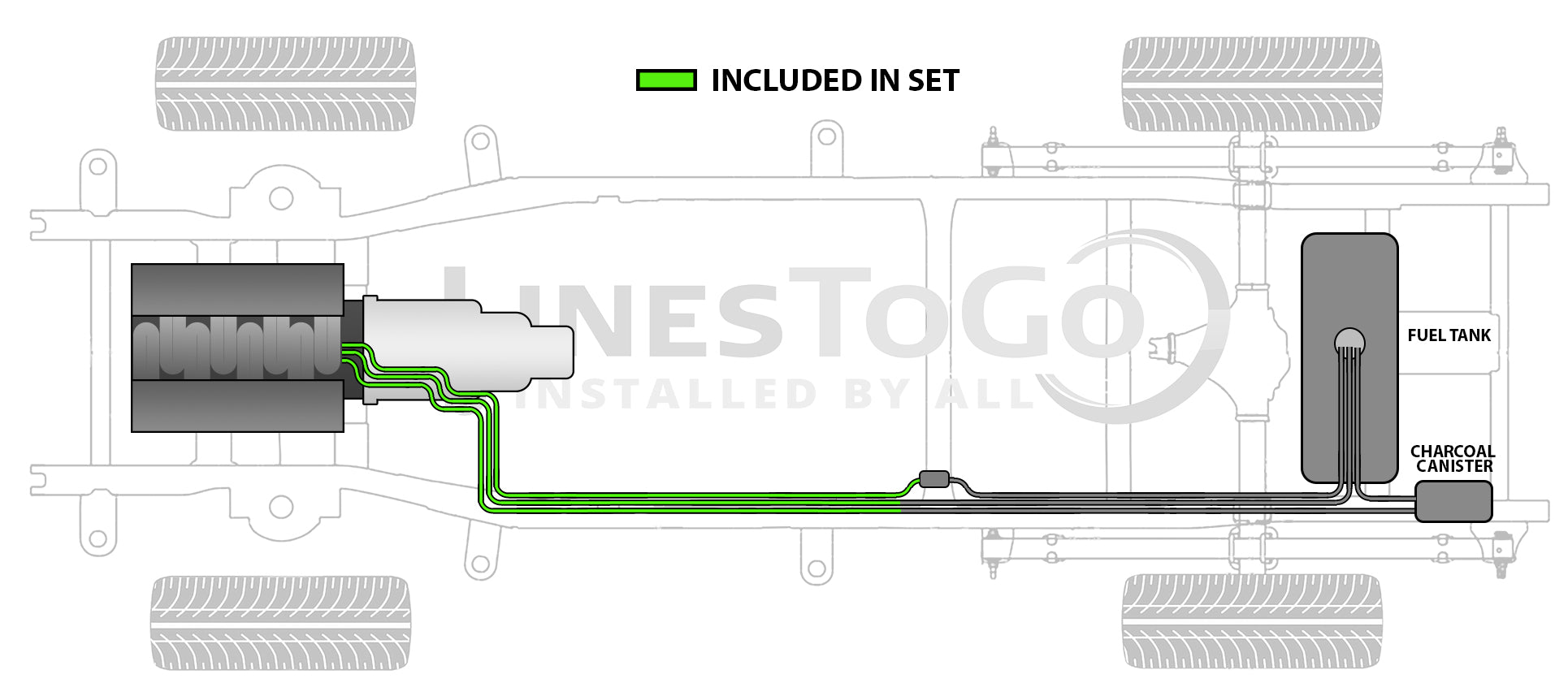

Engine to Fuel Filter

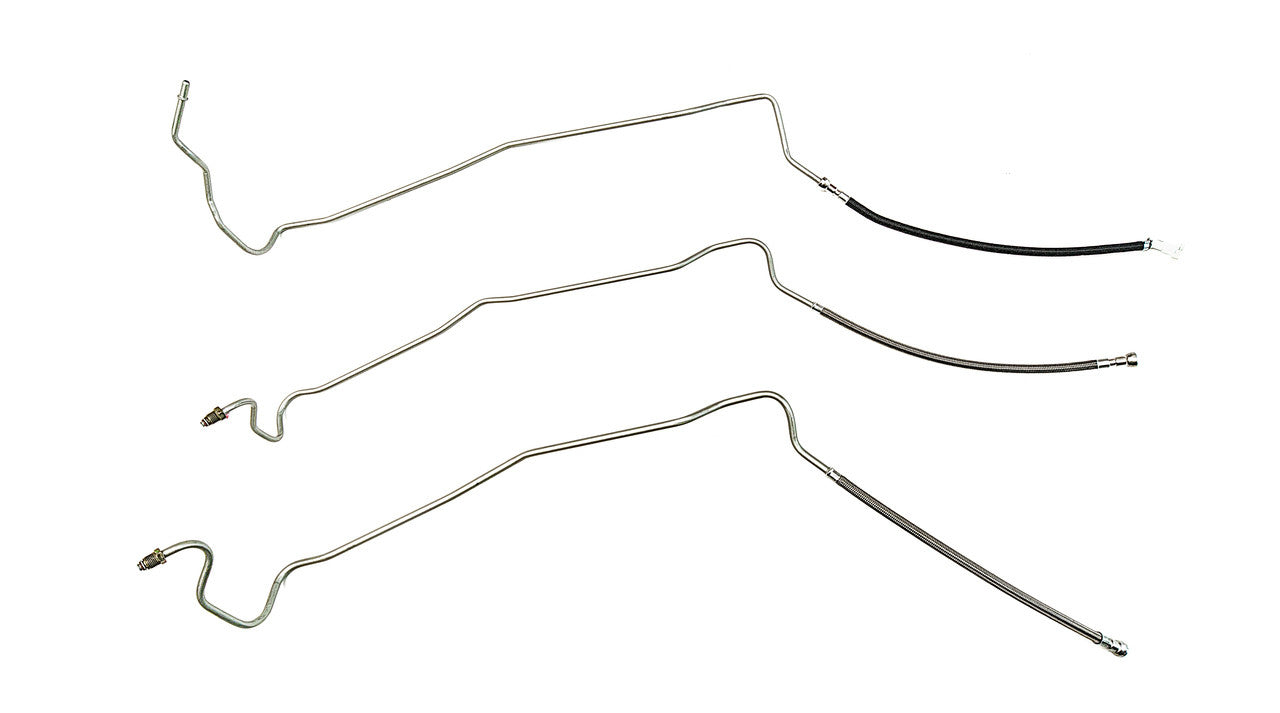

1 supply line 3/8", 1 return line 5/16", 1 vapor line 5/16" (Direct OEM Replacement)
Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
