Name: Chevy Monte Carlo LS Fuel Line Set 2004 3.4L FL254-A7K
Brand: Lines - To - Go
SKU: FL254-A7K
Price: 192.95 USD
Availability: InStock

Year Make & Model

Chevy Monte Carlo LS Fuel Line Set 2004 3.4L FL254-A7K

Price

SALE:

Save $48.24

Delivery Time & Rates

Fuel Line Set 04 Chevrolet Monte Carlo LS 3.4L engines.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

SKU: FL254-A7K

Weight: 6

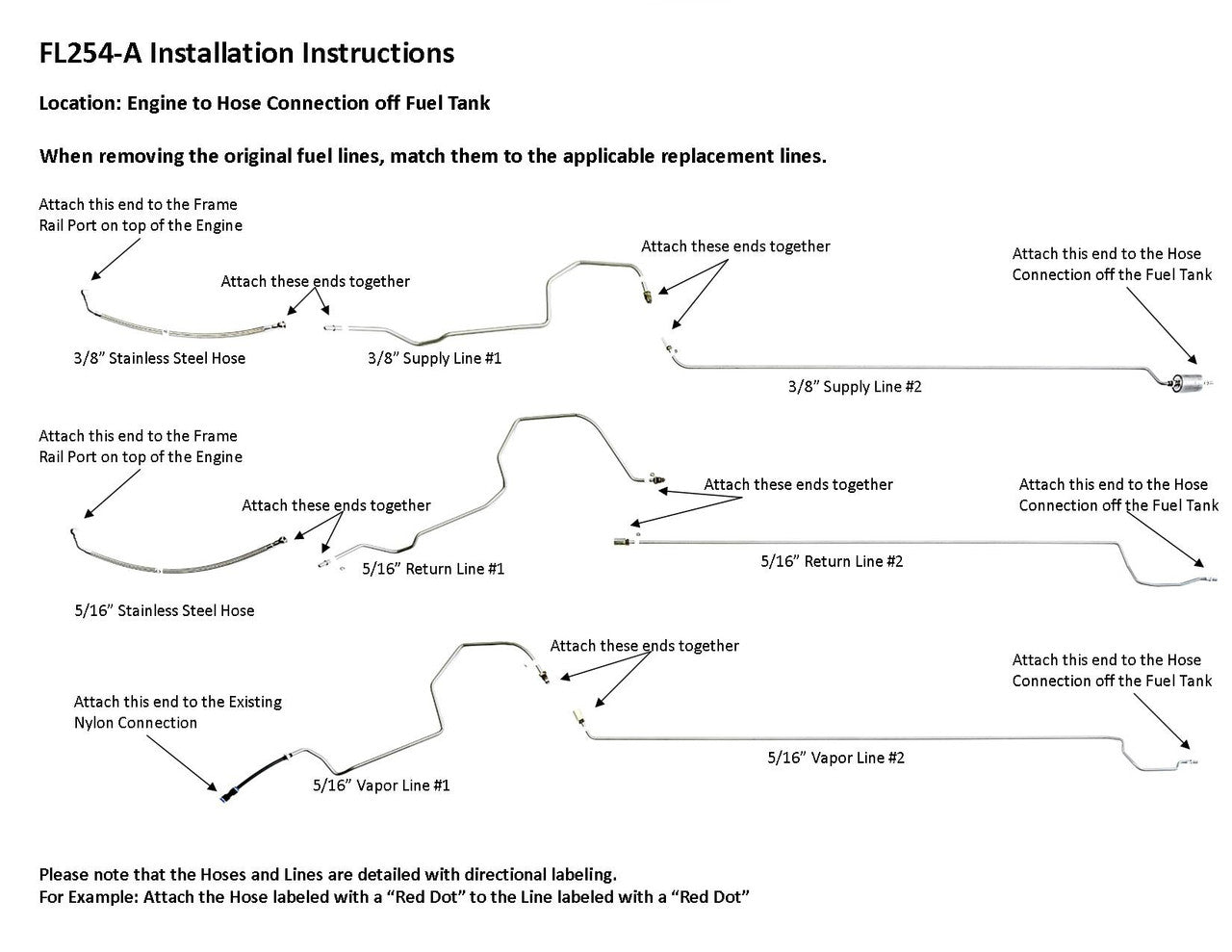

Installation Instructions

Box Dimensions 39" x 11" x 7"

Product Warranty 1 Year

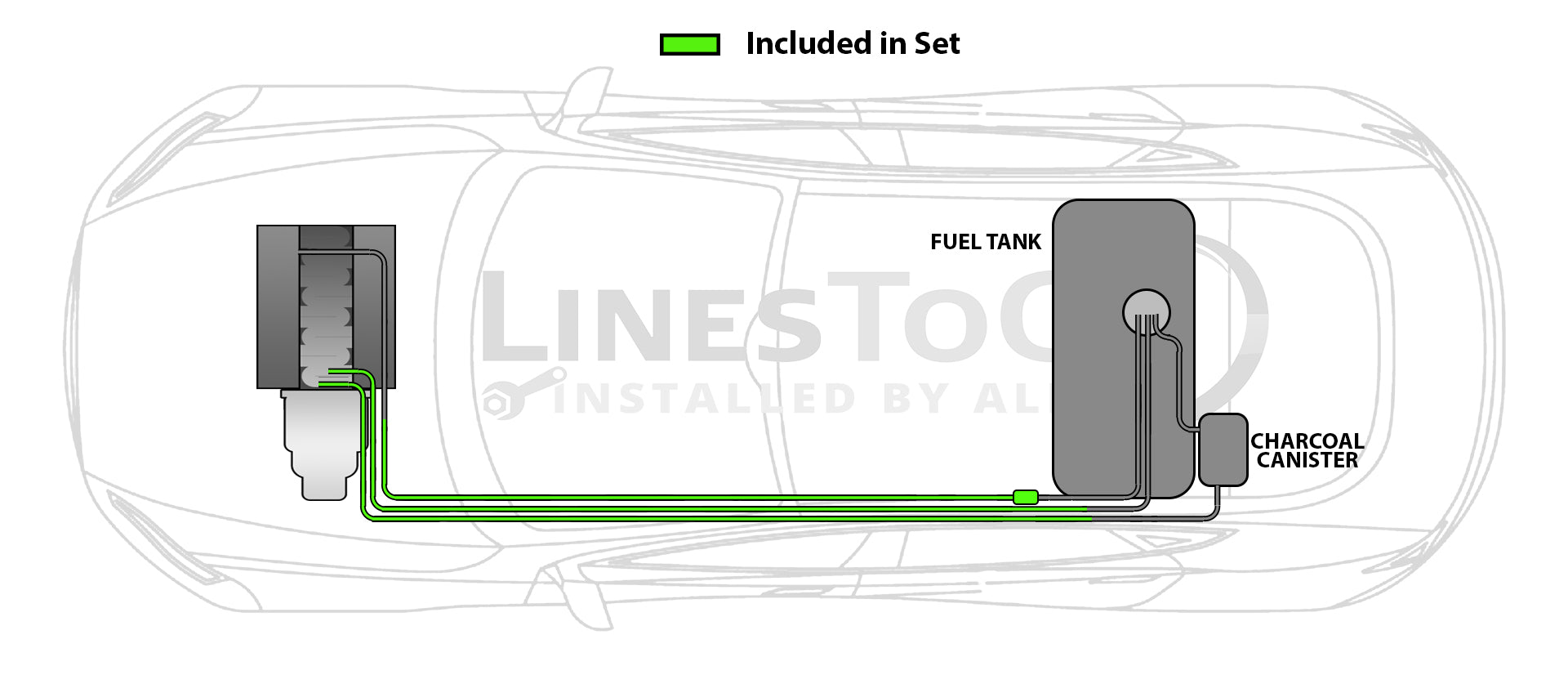

Engine to Fuel Tank

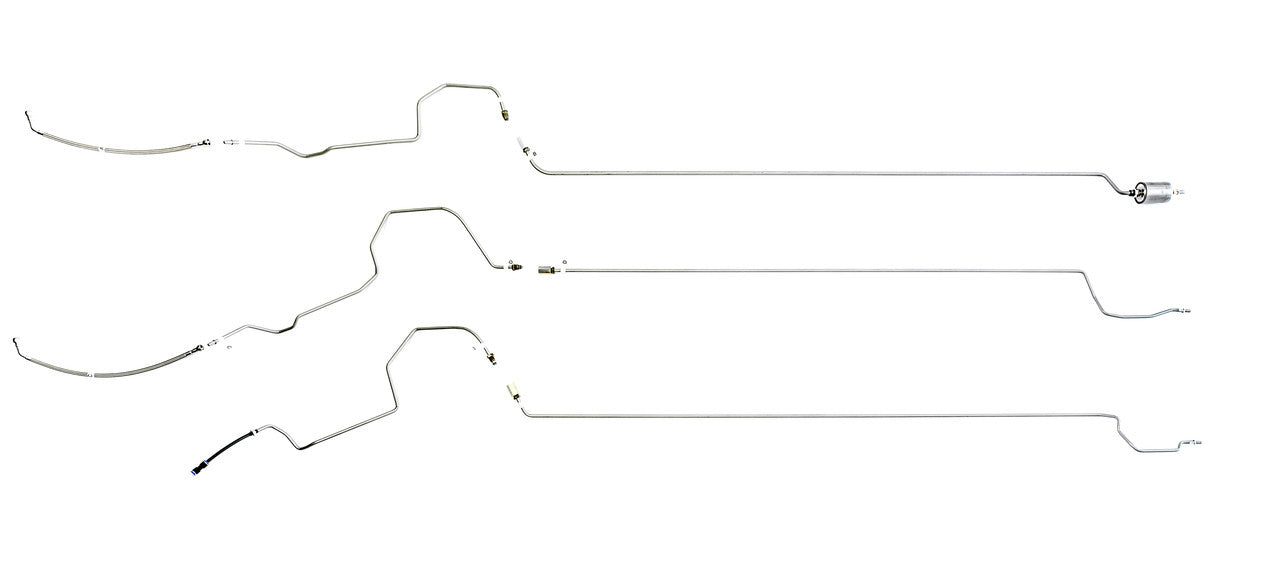

1 supply line 3/8" (in 2 easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line 5/16" (in 2 easy to install sections), hoses to engine connection, nylon line with union, 3 unions, 1 fuel filter

10330348, 10330347, 10346522

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
