Fuel Line Set 2005 Montana 3.4L

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

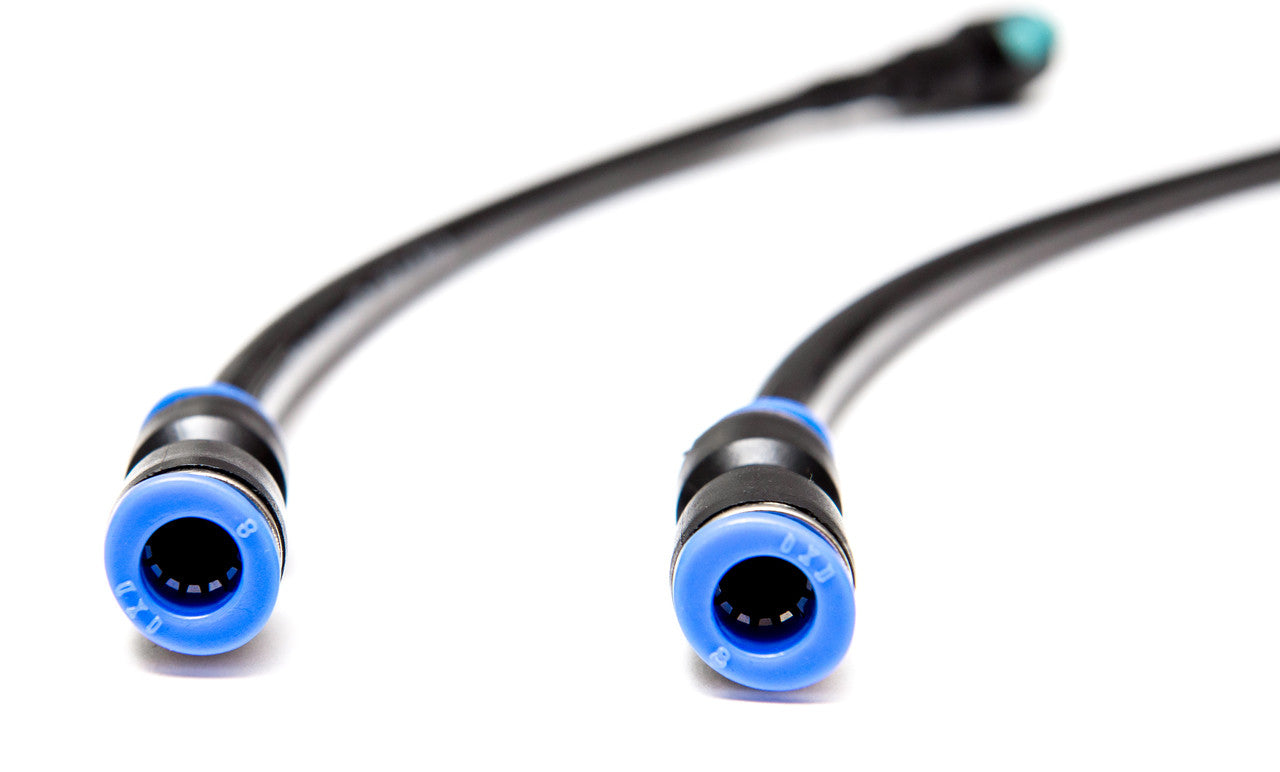

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Connection at Sending Unit Repair Kit: This may only be required if you are replacing the sending unit.

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

6093-01 includes 1 - 3/8” Nylon Line, 1 union, 1 - 90 degree quick connector 3/8"

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

SKU: FL484-B6B
Box Dimensions 39" x 28" x 6"
Product Warranty 1 Year

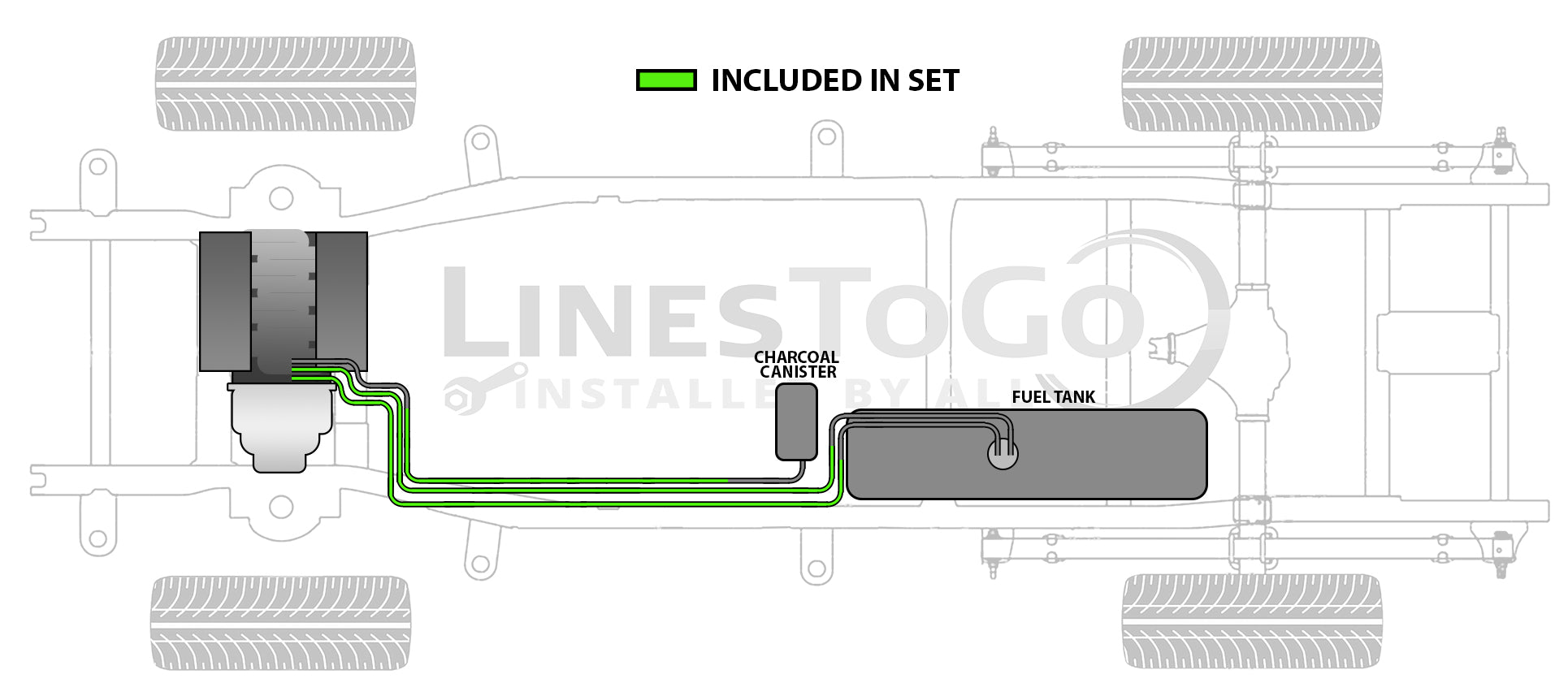

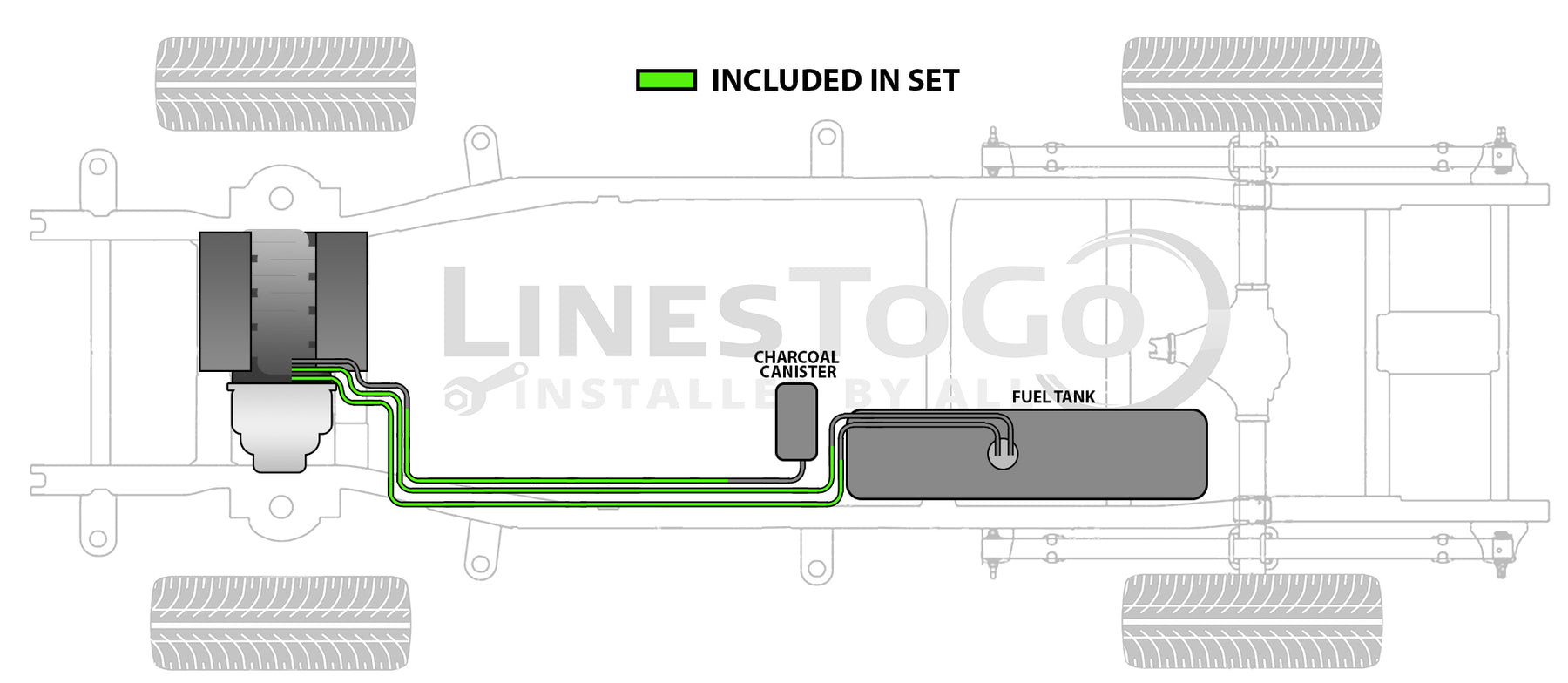

Engine to Hose Connection off Fuel Tank

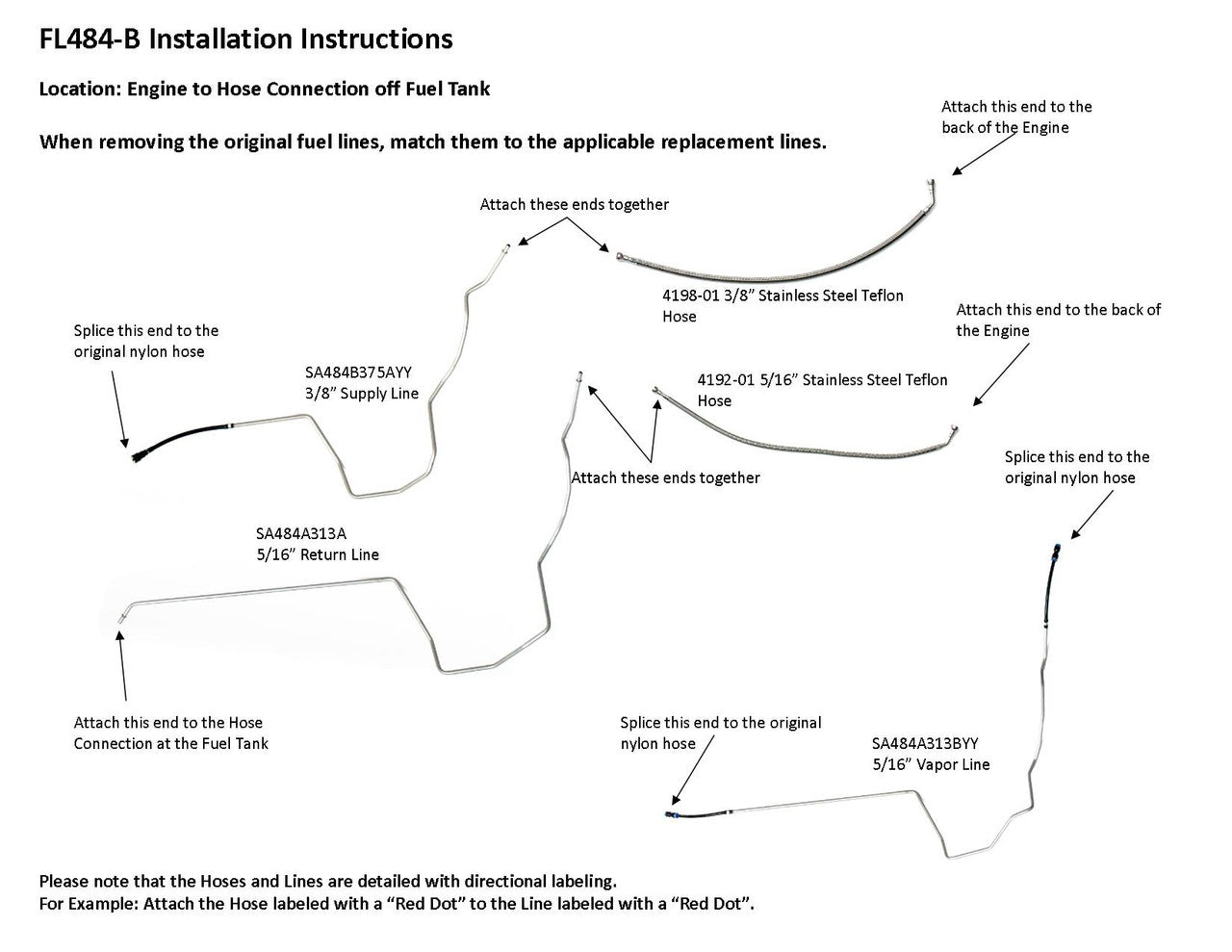

1 supply line 3/8", 1 return line 5/16", 1 vapor line 5/16", hoses to engine connection

10382741

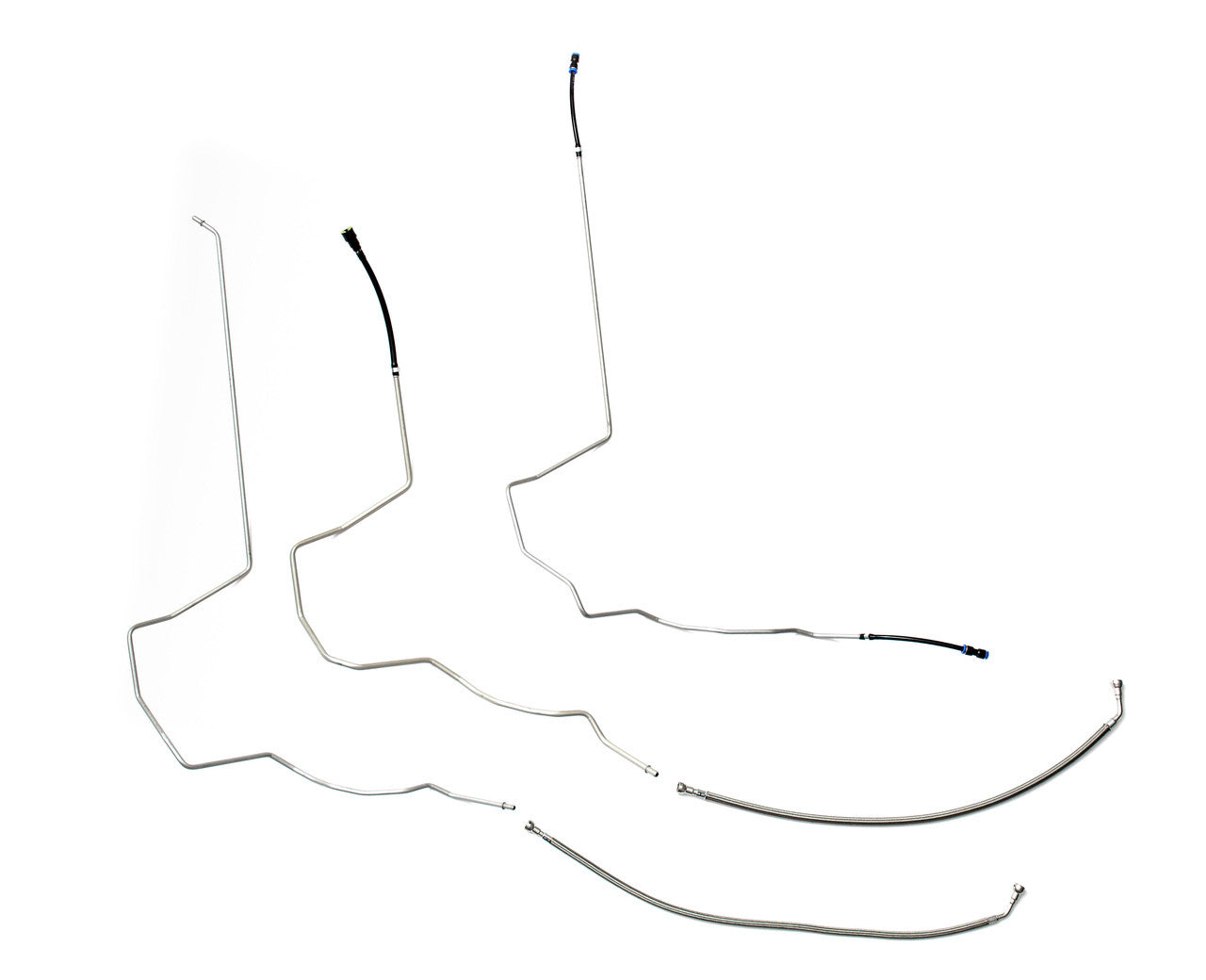

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
