Product Overview

Install this pre bent 1996 transmission cooler line set in no time!

Transmission Cooler Line Chevrolet Lumina LS 1996 w/Automatic Transmission w/o Auxiliary Cooler Set 3.1L 3.8L 4 Door Only

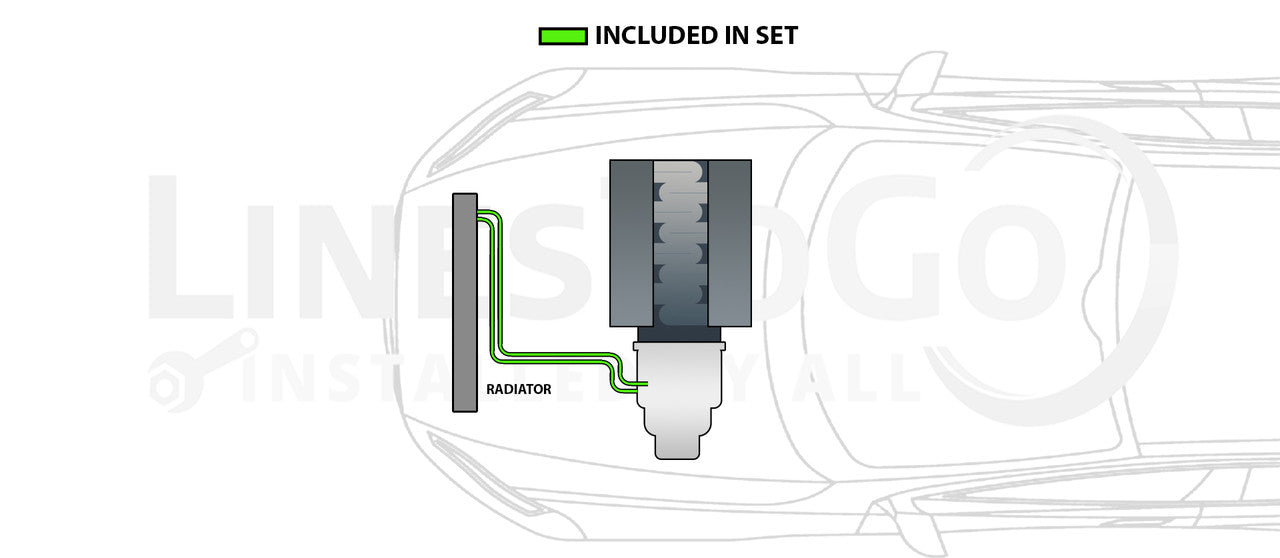

Location: Upper Outlet Line from Transmission Connection to Upper Radiator Cooler Connection, Lower Inlet Line from Transmission Connection to Lower Radiator Cooler Connection

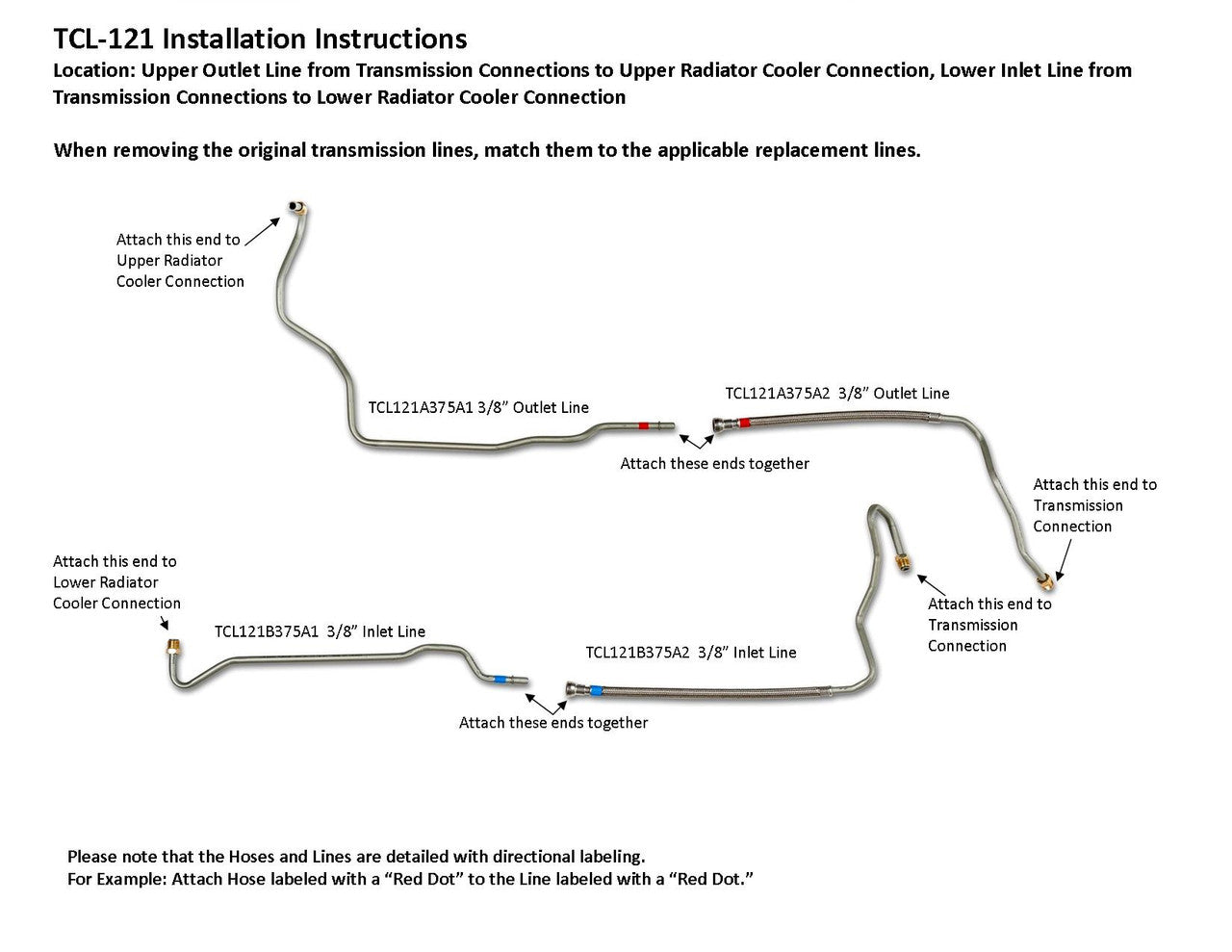

Please Note: Before installing your transmission line, shipping bends will need to be removed from the line labeled TCL121A375A1. See the video below on how to remove the shipping bend.

OEM Part Number: 10273666, 10290000

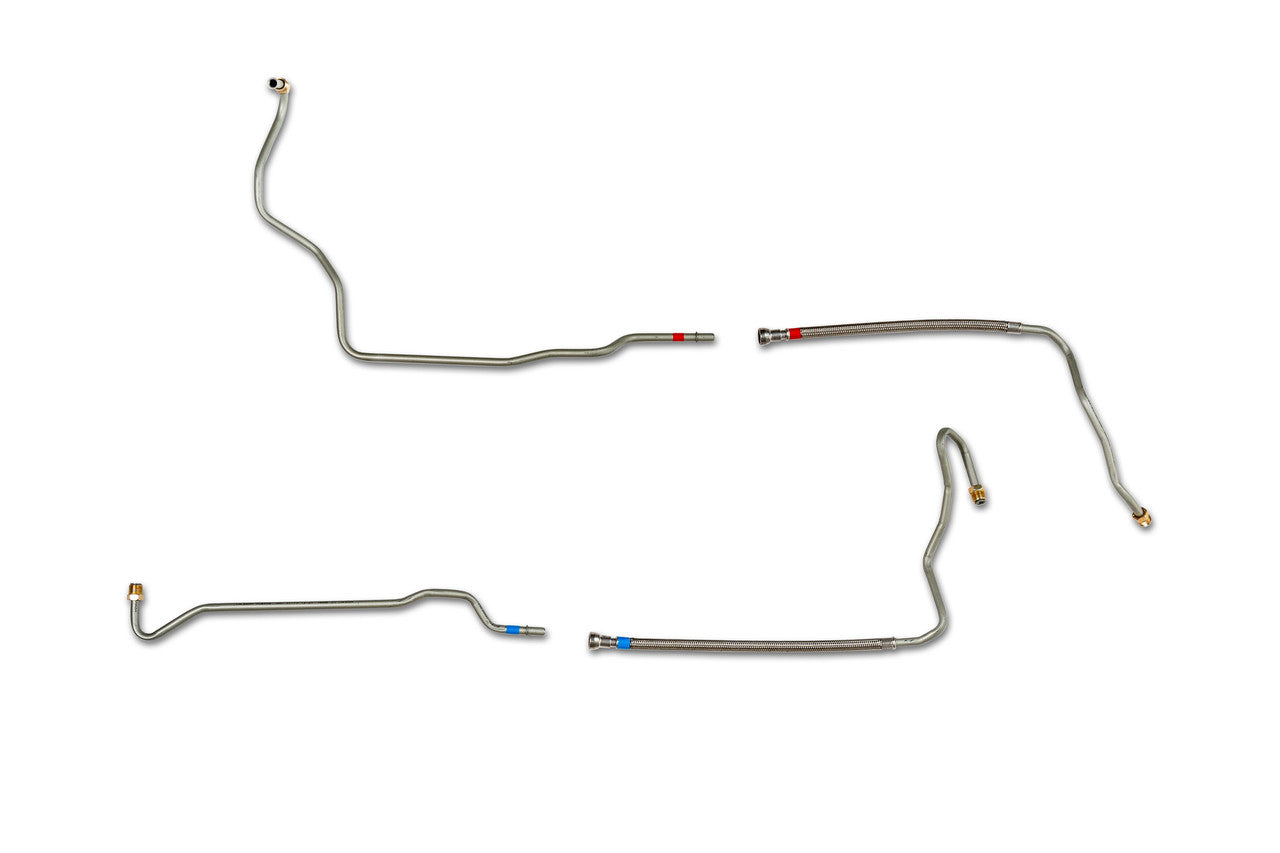

Included in Set: 1 Upper Outlet Line 3/8" (in 2 easy to install sections), 1 Lower Inlet Line 3/8" (in 2 easy to install sections)

Tube Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 20" x 12" x 7"
