Shuttle Bus / School Bus Applications (w/RPO Code ANC, ANX or B3D), w/Rear Mounted 40 Gal Tank (w/RPO N23, NH4 or NLD), or w/Rear Mounted 60 Gal Tank (w/RPO Code NH5 or NN4) and w/o RPO Code JPR (Fuel Tank Relocated - Forward Mounted Tank)

SALE:
Save $74.74
/
  • In stock, ready to ship
  • Inventory on the way

Delivery Time & Rates

Shipping calculated at checkout.

Shop LinesToGo for 2009 Chevrolet truck fuel lines -

Fuel Line Set 2009 Chevy Kodiak C4500/5500 for Reg and Cutaway Cab & Chassis WBs for Shuttle Bus / School Bus Applications (w/RPO Code ANC, ANX or B3D), w/Rear Mounted 40 Gal Tank (w/RPO N23, NH4 or NLD), or w/Rear Mounted 60 Gal Tank (w/RPO Code NH5 or NN4) and w/o RPO Code JPR (Fuel Tank Relocated - Forward Mounted Tank) for 6.6L Duramax Diesel Engines.

Please Note: This application is for vehicles without RPO Code JPR (NO forward Mounted Tank) – If you are unsure, please call us with your VIN to ensure proper fitment.

SKU: FL688-A1D
Box Dimensions 56" x 6" x 4"

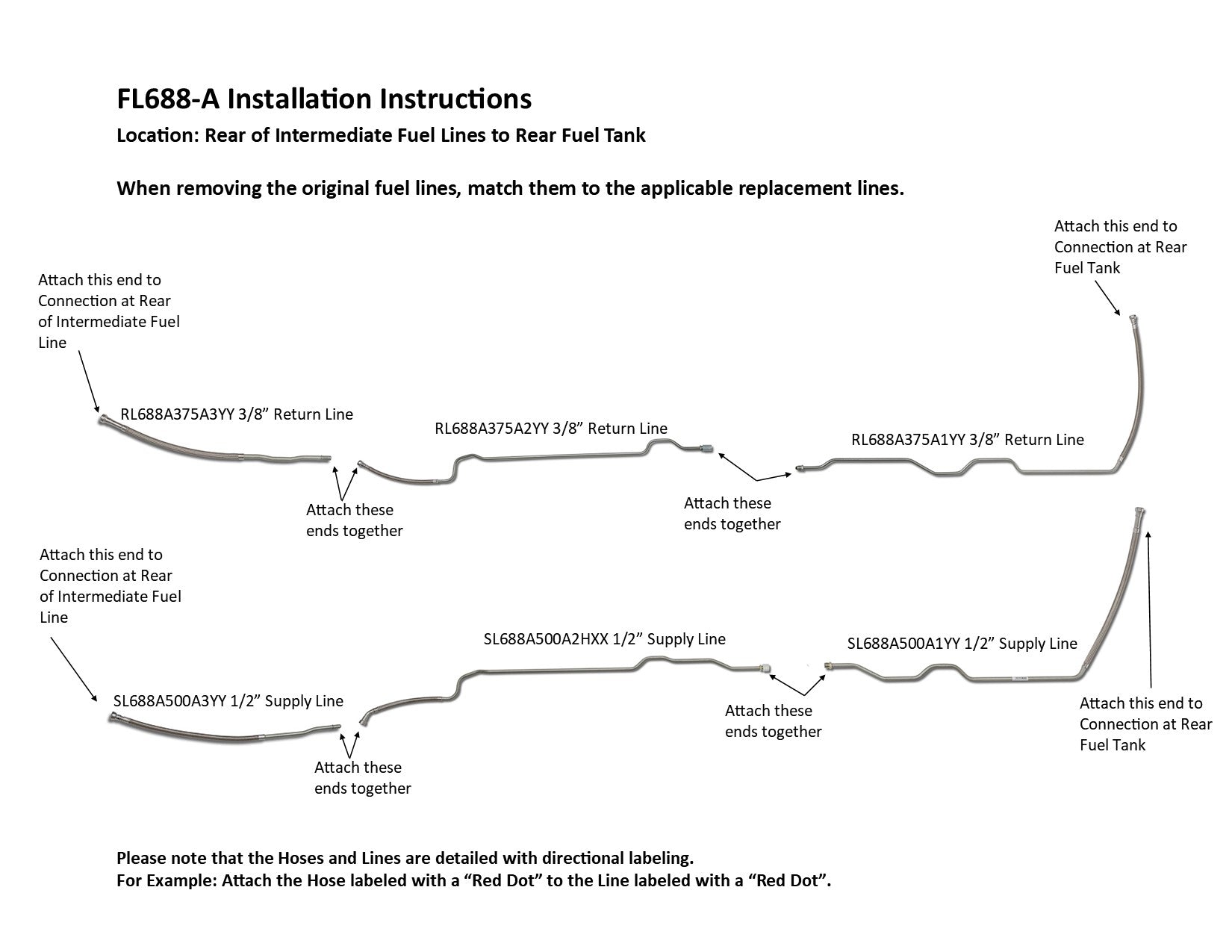

Rear of Intermediate Fuel Lines to Rear Fuel Tank

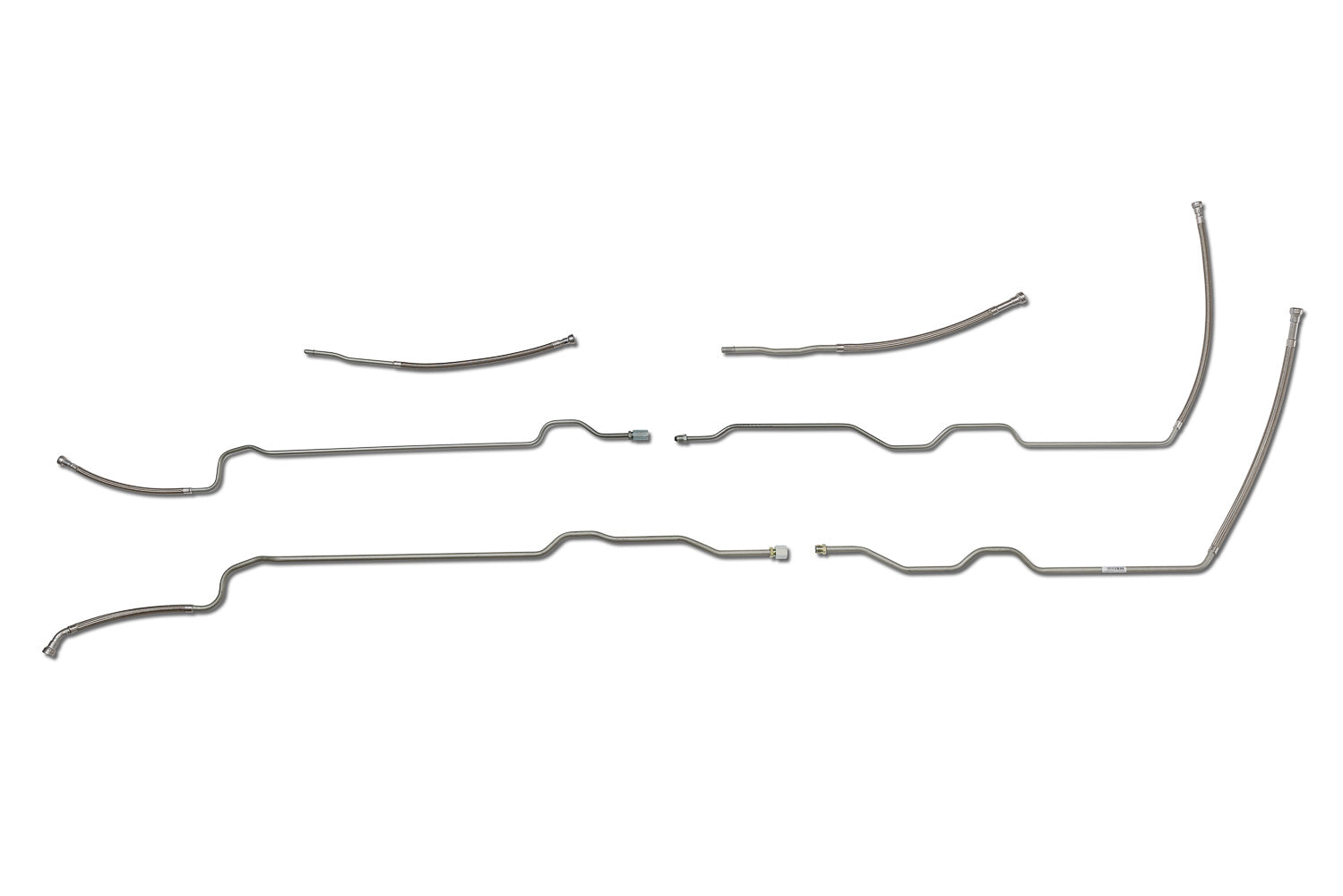

1 Supply Line 1/2" (in 3 easy to install sections), 1 Return Line 3/8" (in 3 easy to install sections), Hoses to Connection at Rear of Intermediate Fuel Line, Hoses to Rear Fuel Tank

25893271

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
