Chevy Kodiak Brake Line Set 2003 C6500/7500 2WD Reg Cab & Chassis 224" WB 6.6L BLC-204-SS1O Stainless Steel
w/Hydraulic Brakes w/10,000 LBS Front Axle or w/12,000 LBS Front Axle
Chevy Kodiak Brake Line Set 2003 C6500/7500 2WD Reg Cab & Chassis 224" WB 6.6L BLC-204-SS1O Stainless Steel
w/Hydraulic Brakes w/10,000 LBS Front Axle or w/12,000 LBS Front Axle
Delivery Time & Rates
Brake Line Set Stainless Steel 2003 Chevrolet Kodiak C6500/7500 2WD Reg Cab & Chassis 224" WB 6.6L w/Hydraulic Brakes w/10,000 LBS Front Axle or w/12,000 LBS Front Axle
Please Note: Before installing your brake lines, a shipping bend will need to be removed from the lines labeled BLC204-04A-SS and BLC204-06A-SS. See the video below on how to remove the shipping bend

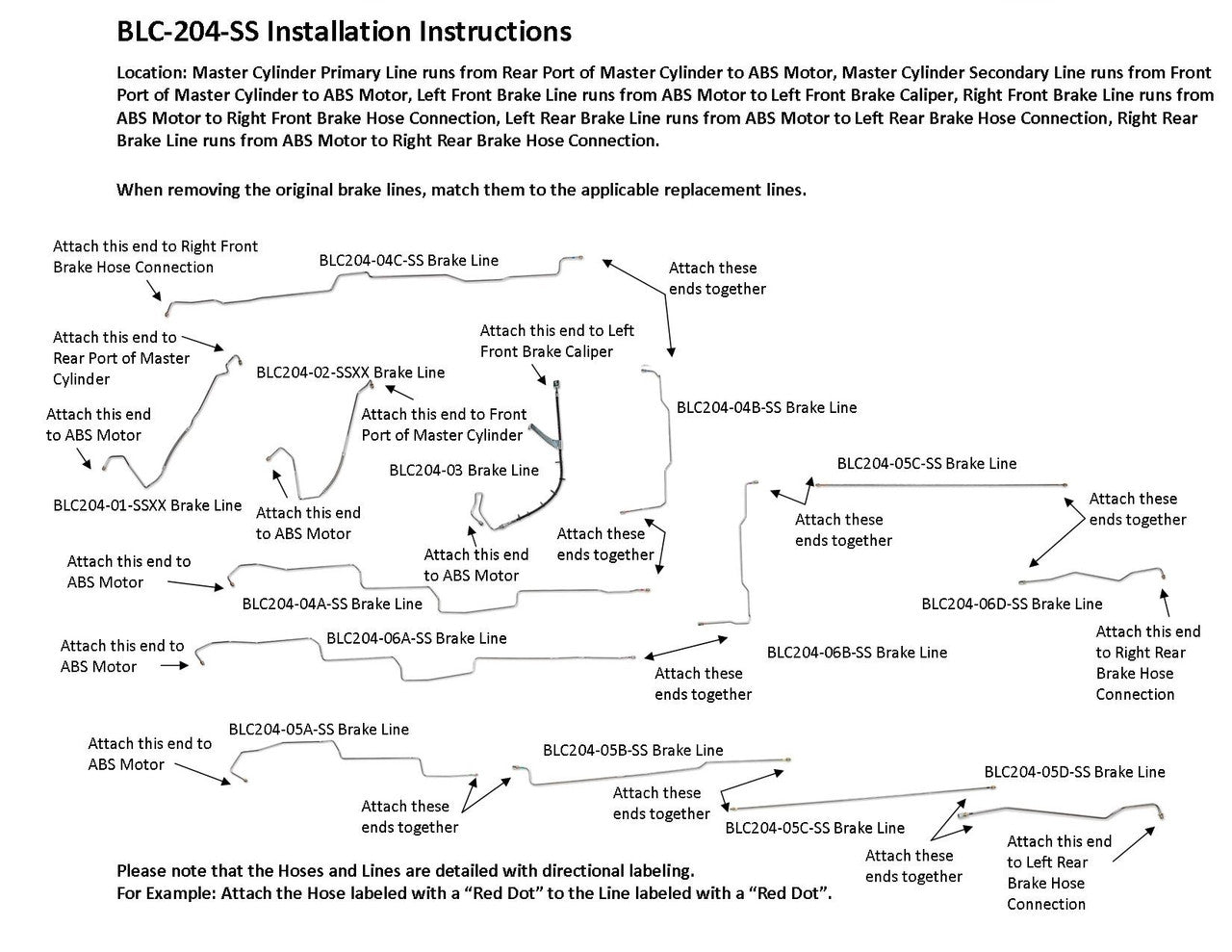

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Caliper, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from ABS Motor to Right Rear Brake Hose Connection

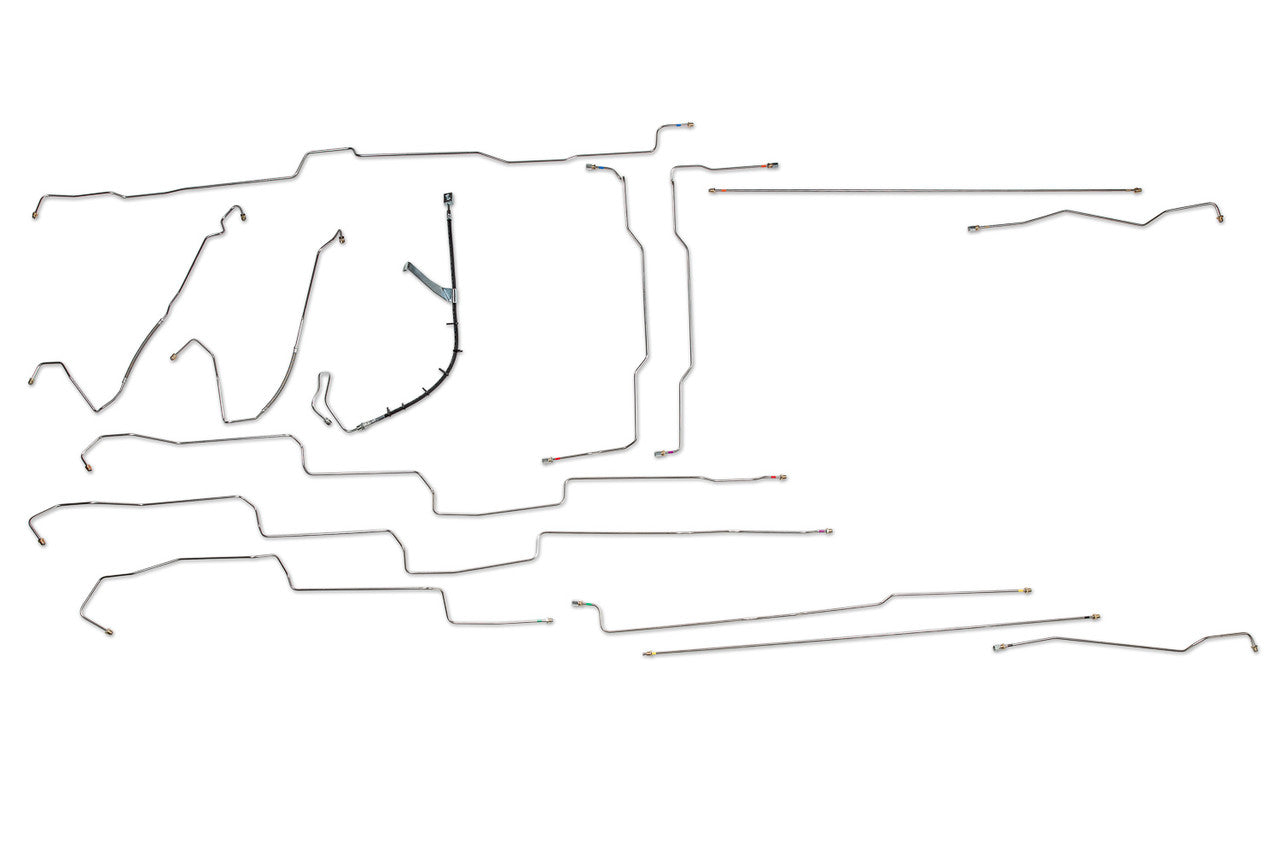

1 Master Cylinder Primary Line 1/4", 1 Master Cylinder Secondary Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 3 easy to install sections), 1 Left Rear Brake Line 1/4" (in 4 easy to install sections), 1 Right Rear Brake Line 1/4" (in 4 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
