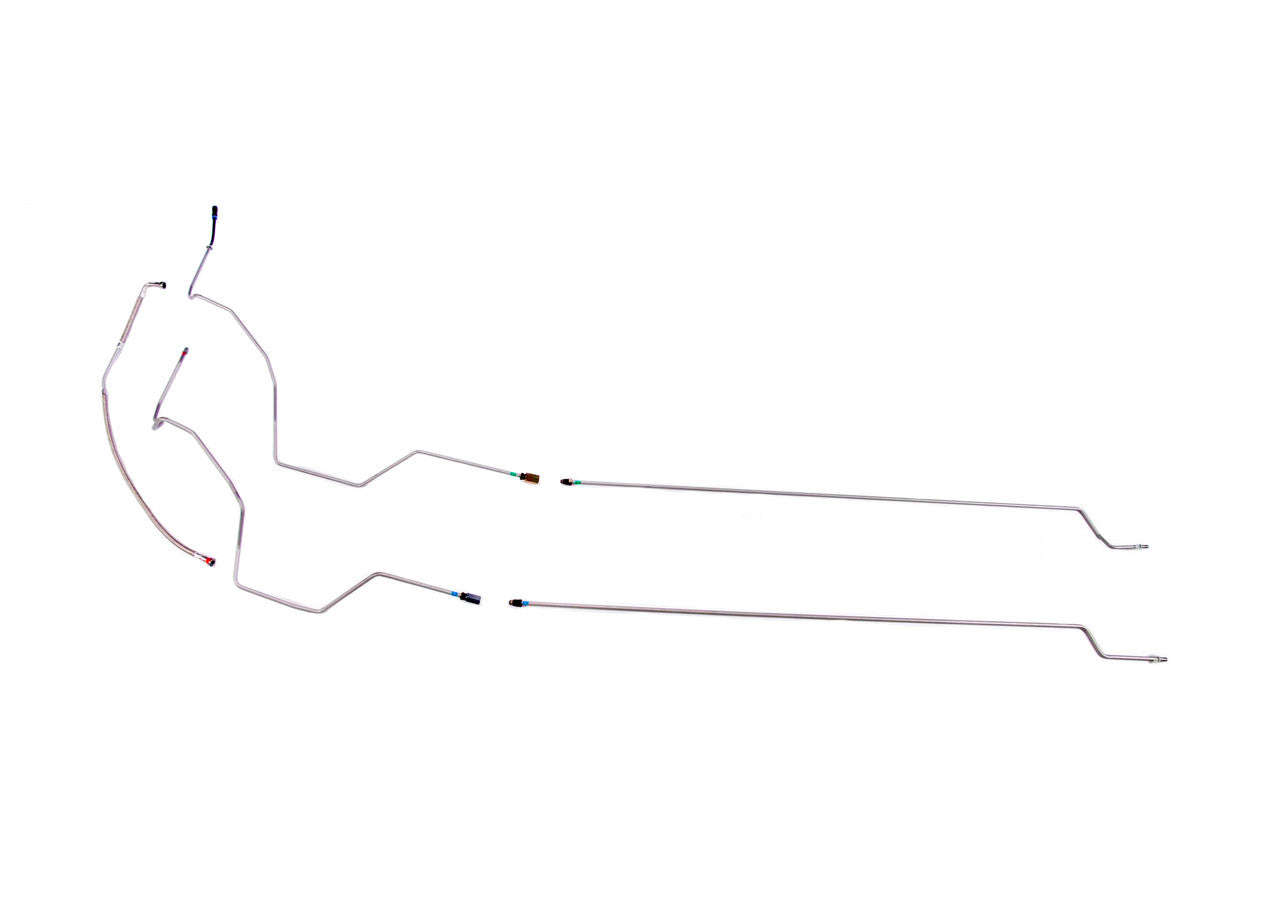

This fuel line is made for the 2006 Chevy Impala LS, LT, Police, and SS models with 4 doors for 3.5L engines.. The FL254-C2 is designed to be installed easily and be durable.

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

6093-01 includes 1 nylon line 3/8", 1 union, 1 quick connector 3/8"  90 degree

Repair Kit (Connection at Sending Unit): This may only be required if you are replacing the sending unit.

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

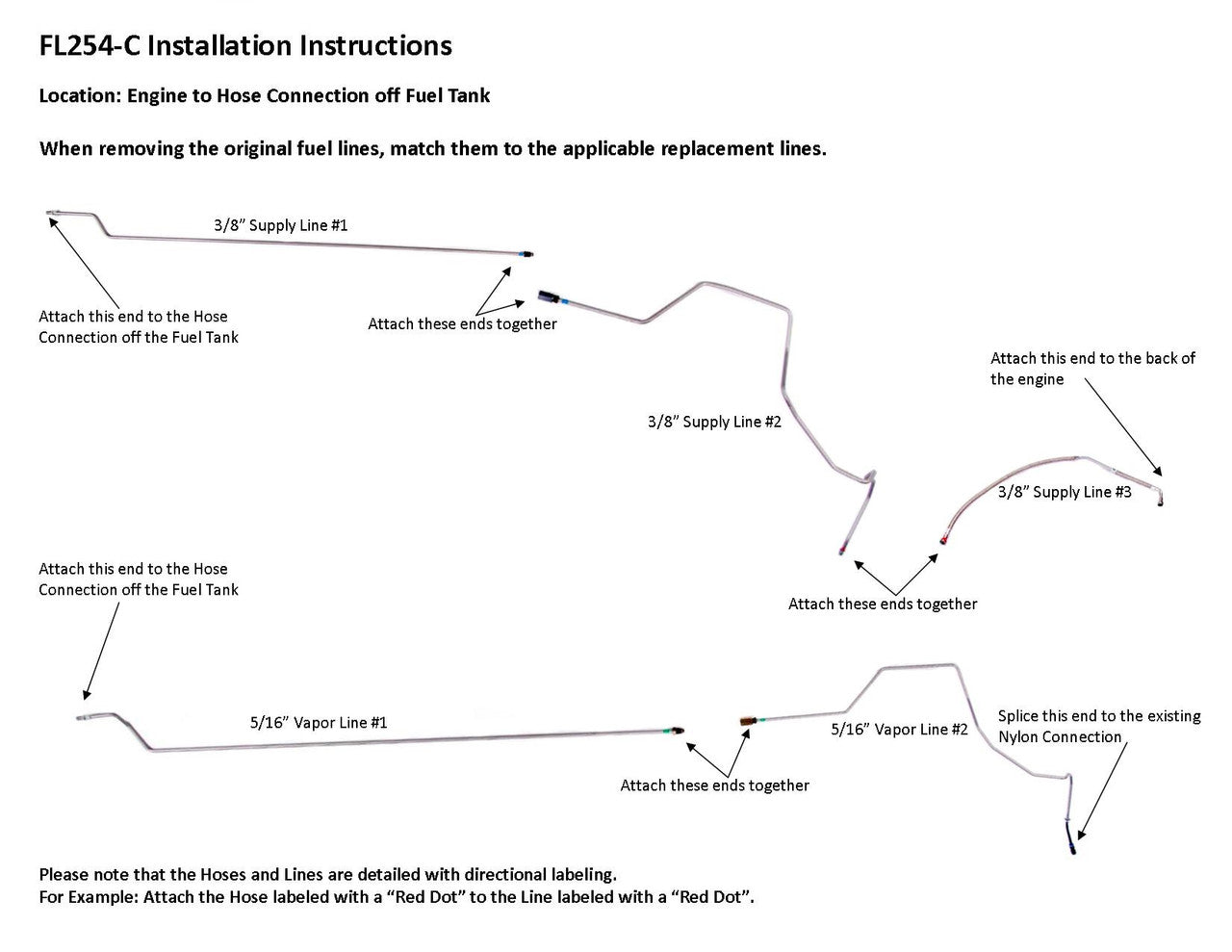

Please Note: Before installing your fuel line, shipping bends will need to be removed from the lines labeled SA254C313B2 and SA254C375B2. See the video below on how to remove the shipping bend
