Fuel Line Set for 2008 Chevy Impala LS. FL254-B5B Fuel Line Set for 2008 Chevy Impala LS with 4Dr and 3.5L engines.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

SKU: FL254-B5B
Box Dimensions 57" x 11" x 7"
Product Warranty 1 Year

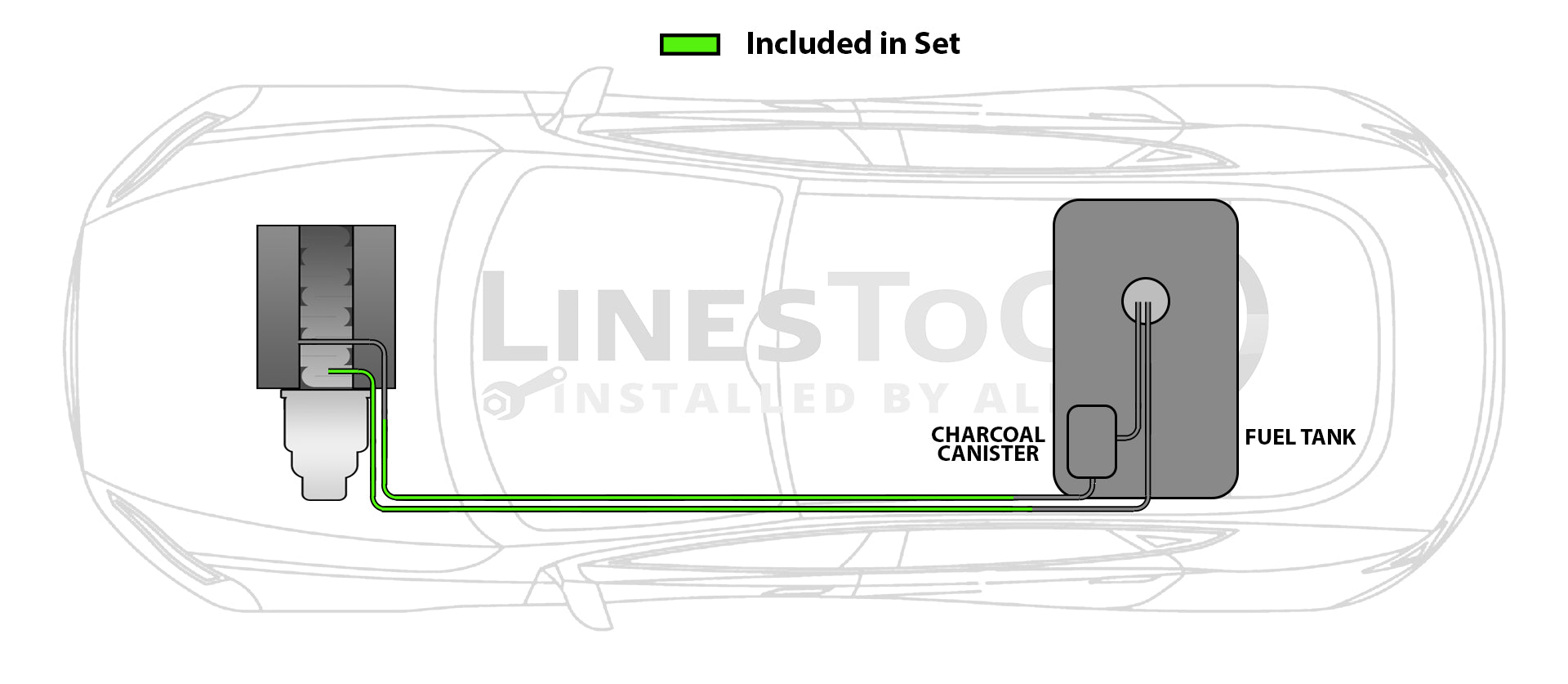

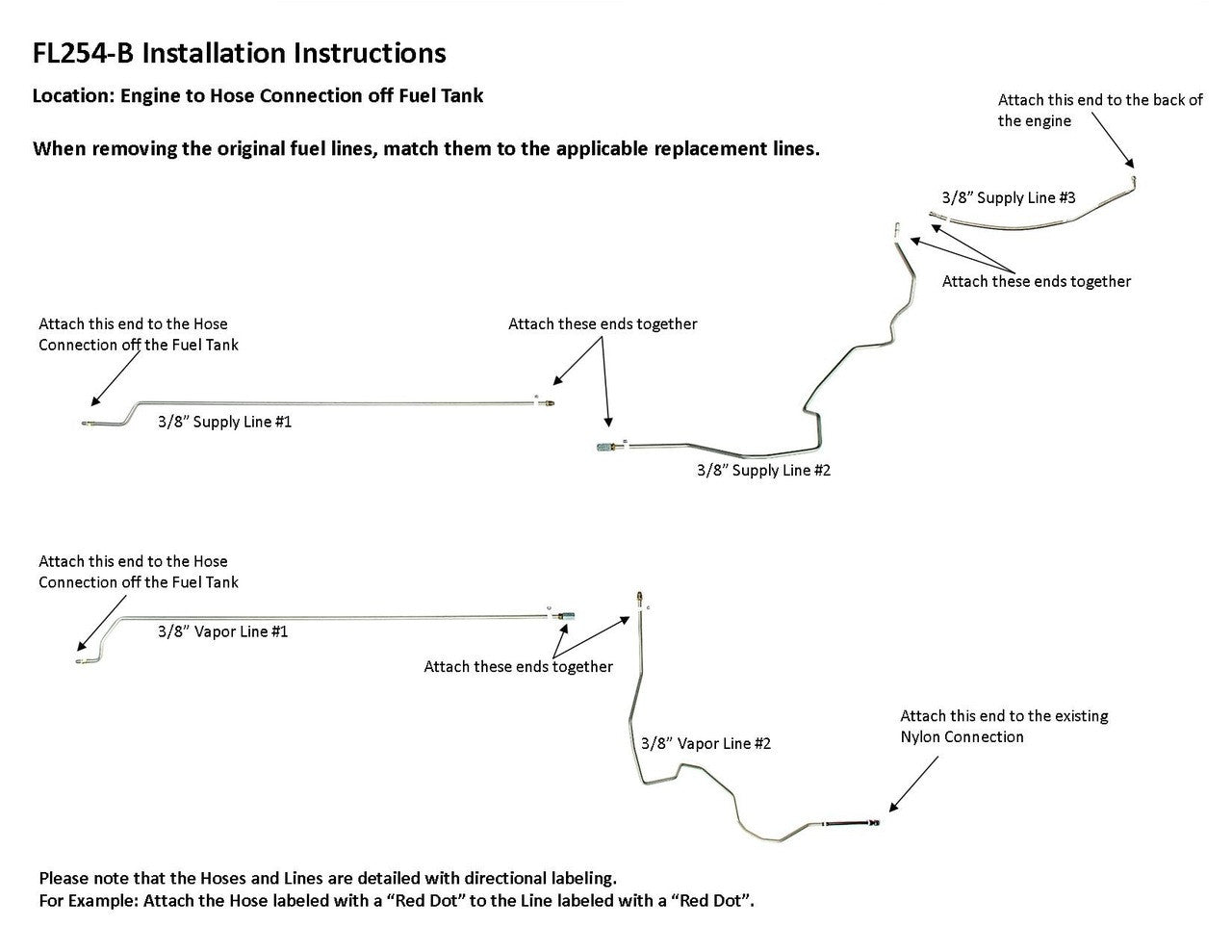

Engine to Hose Connection off Fuel Tank

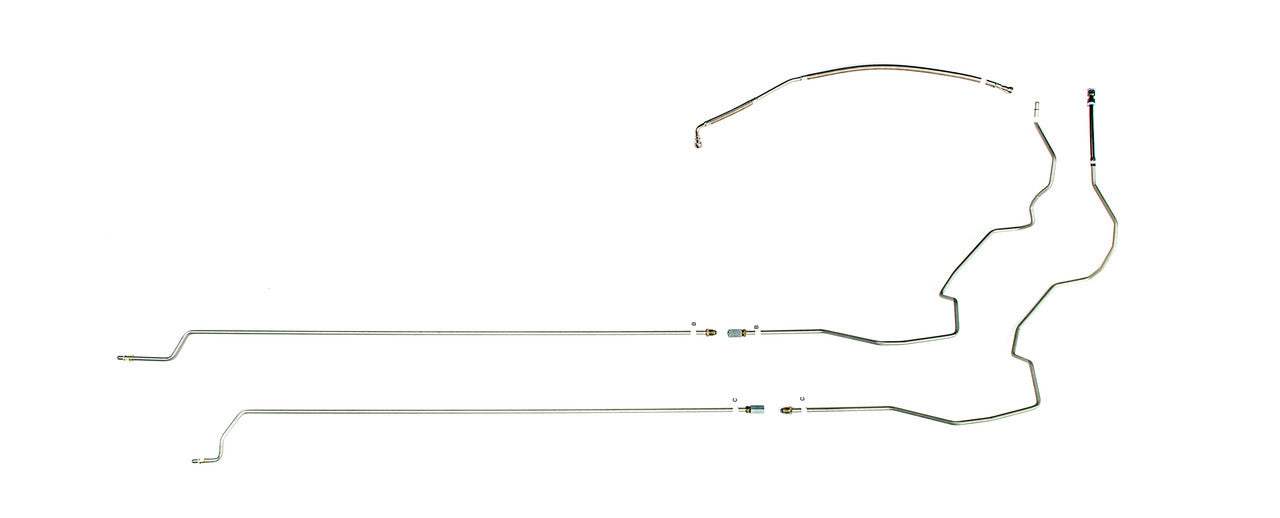

1 supply line 3/8" (in 2 easy to install sections), 1 vapor line 3/8" (in 2 easy to install sections), hoses to engine connection, nylon line with union

20846958, 15943694, 15837245

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
