Chevy Impala Base Fuel Line Set 2000 3.8L FL254-E2A

Non Supercharged w/Rear Drum Brakes

Chevy Impala Base Fuel Line Set 2000 3.8L FL254-E2A
Chevy Impala Base Fuel Line Set 2000 3.8L FL254-E2A
Chevy Impala Base Fuel Line Set 2000 3.8L FL254-E2A
Chevy Impala Base Fuel Line Set 2000 3.8L FL254-E2A
Chevy Impala Base Fuel Line Set 2000 3.8L FL254-E2A
Chevy Impala Base Fuel Line Set 2000 3.8L FL254-E2A

Chevy Impala Base Fuel Line Set 2000 3.8L FL254-E2A

Non Supercharged w/Rear Drum Brakes

MSRP: from
SALE: from
Save $48.24
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL254-E2A
  • Weight: 6

Chevrolet 2000 Impala Base w/Rear Drum Brakes fuel lines for 3.8L Non Supercharged engine.

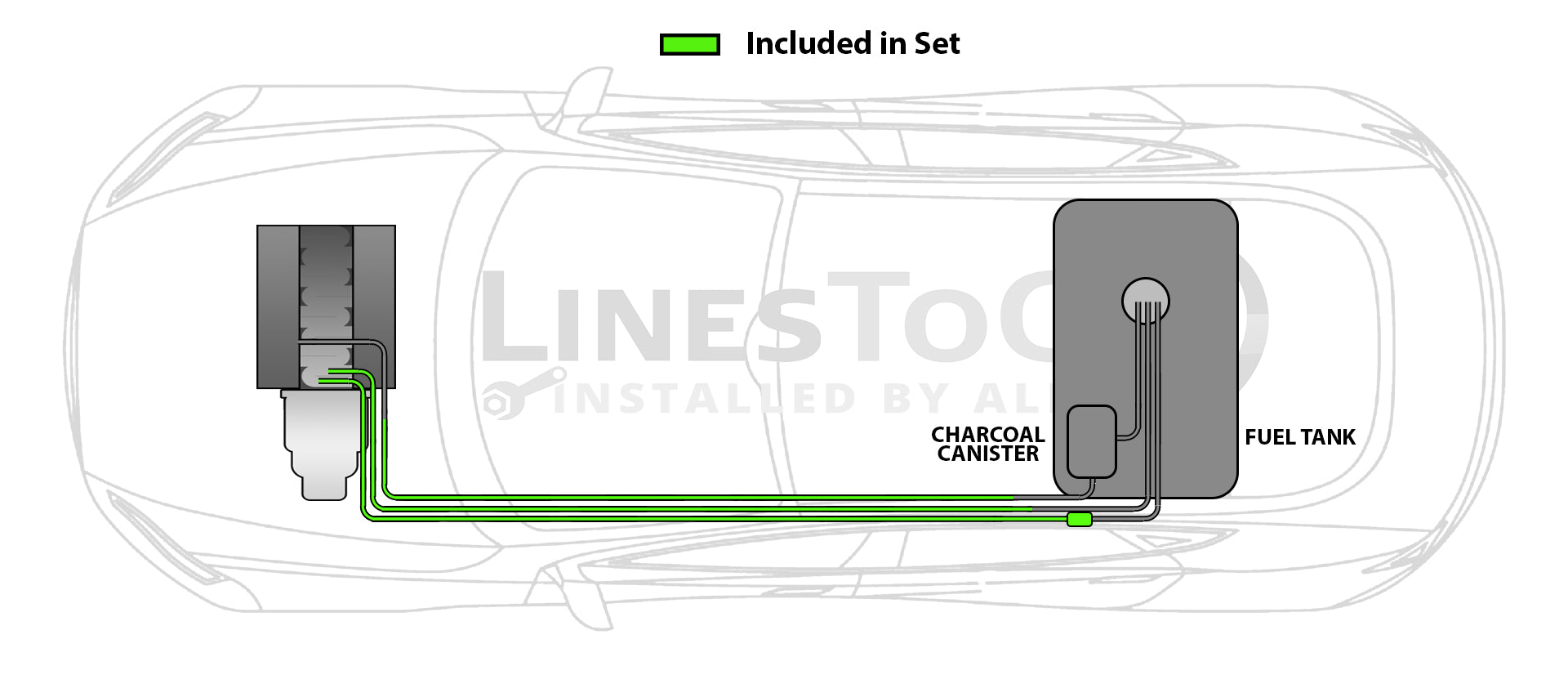

Location: Engine to Hose Connection off Fuel Tank

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SA254A375B, SA254A313BB, and SA254A313CB. See the video below on how to remove the shipping bend.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

Nylon Installation Instructions:

 Step 1                                                  Step 2                                                       Step 3

nylon1.jpg                      nylon2.jpg                        nylon3.jpg

Cut the new nylon hose                   Cut the original nylon hose             Use the original nylon hose with connector
in the same position as                    in the same position as                     and attach it with supplied union to the
the original nylon hose.                   the new nylon hose.                           new nylon hose.



OEM Part Number15279854, 15279855, 10346523

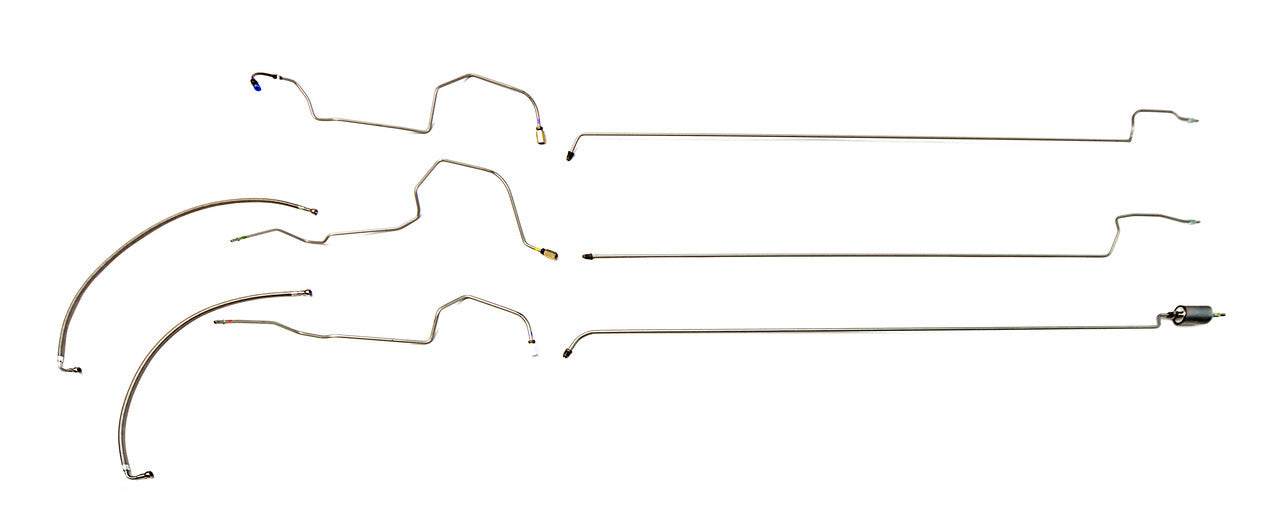

Included in Set: 1 supply line 3/8" (in 2 easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line 5/16" (in 2 easy to install sections), hoses to engine connection, nylon line with union, 3 unions, 1 fuel filter

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 39" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
