Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C

w/o External Fuel Filter

Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C
Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C

Chevy HHR Fuel Line Set 2011 2.2L FL255-C1C

w/o External Fuel Filter

SALE:
Save $41.39
/

Delivery Time & Rates

Shipping calculated at checkout.

Delivery Time & Rates

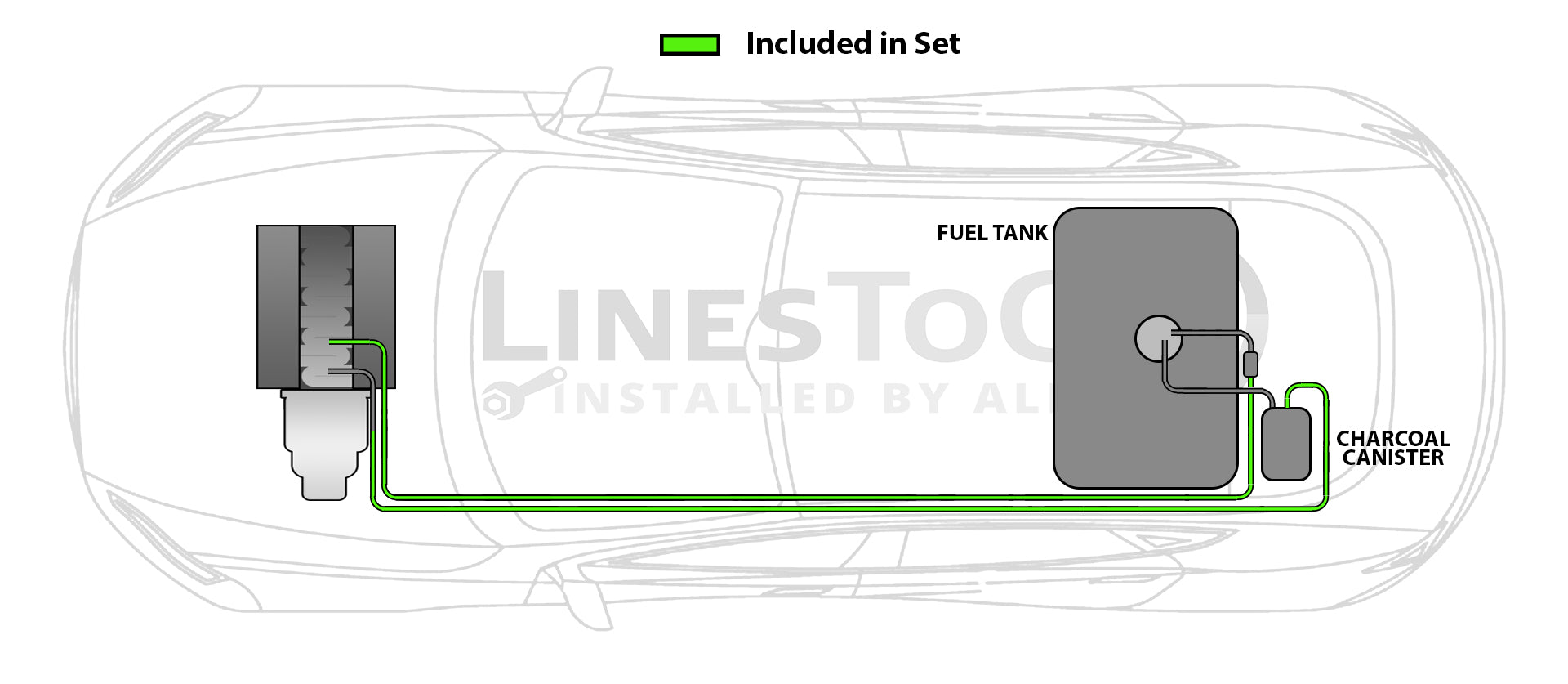

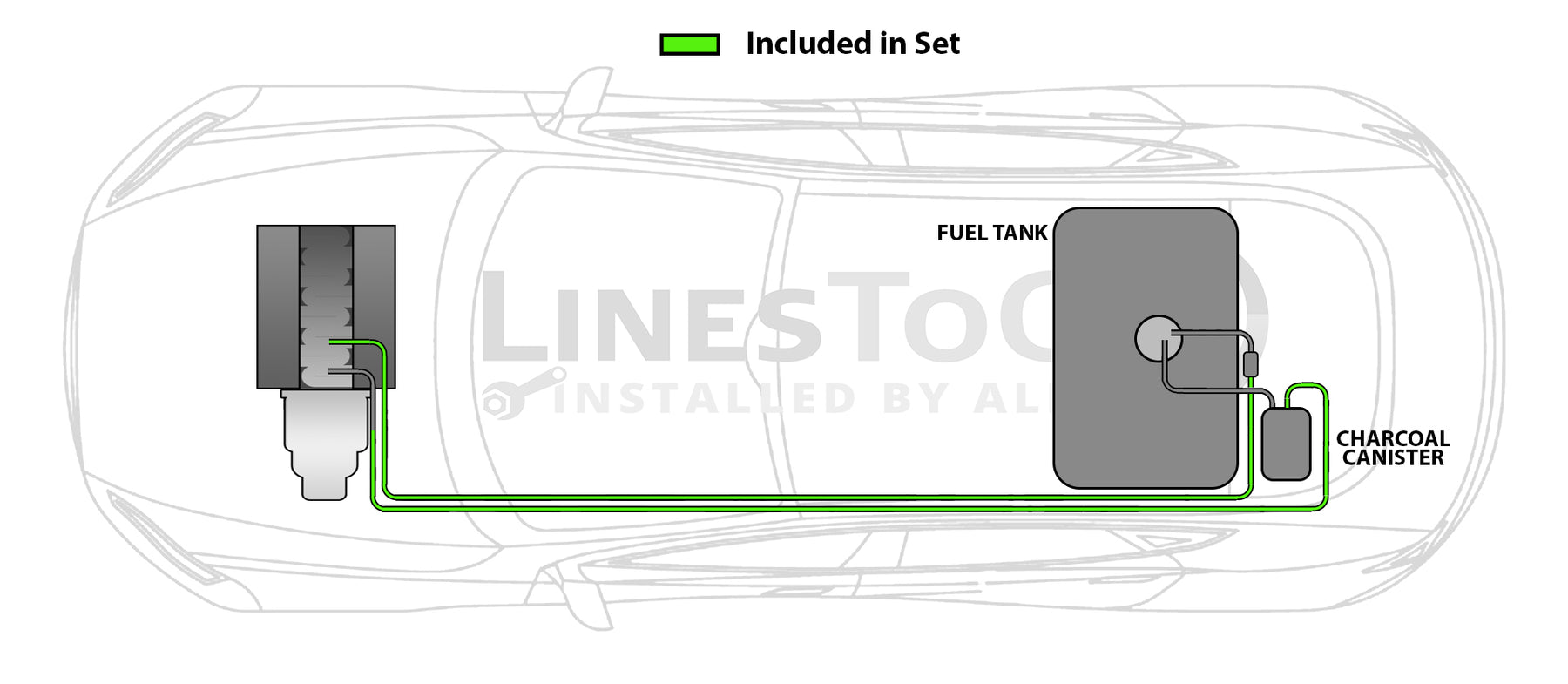

Shop LinesToGo Fuel Line Set for 2011 Chevy HHR. FL255-C1C Fuel Line Set for 2011 Chevy HHR with 2.2L engines w/o External Fuel Filter.

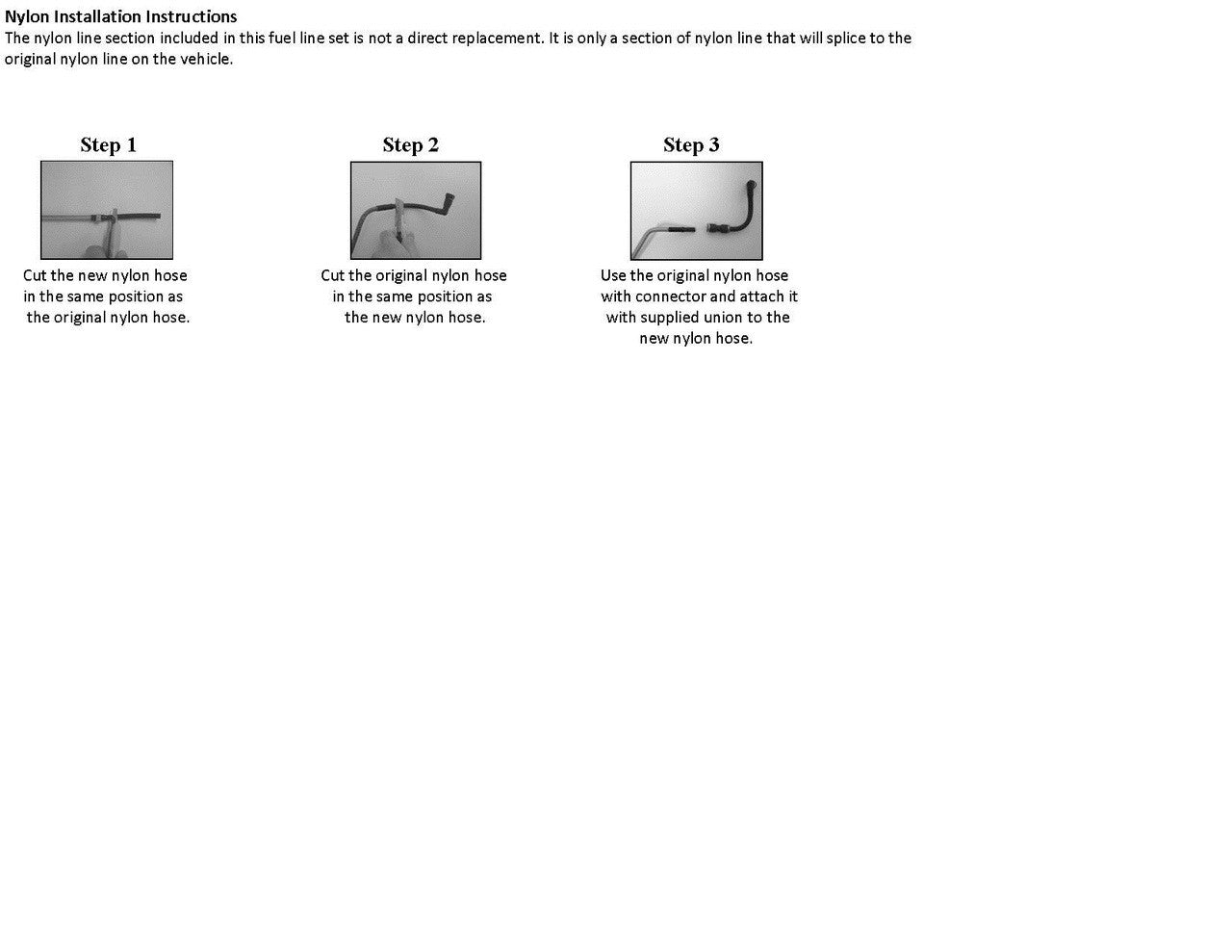

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

6093-01 includes 1 nylon line 3/8", 1 union, 1 quick connector 3/8"  90 degree

Repair Kit (Connection at Sending Unit): This may only be required if you are replacing the sending unit.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

SKU: FL255-C1C
Box Dimensions 46" x 11" x 7"

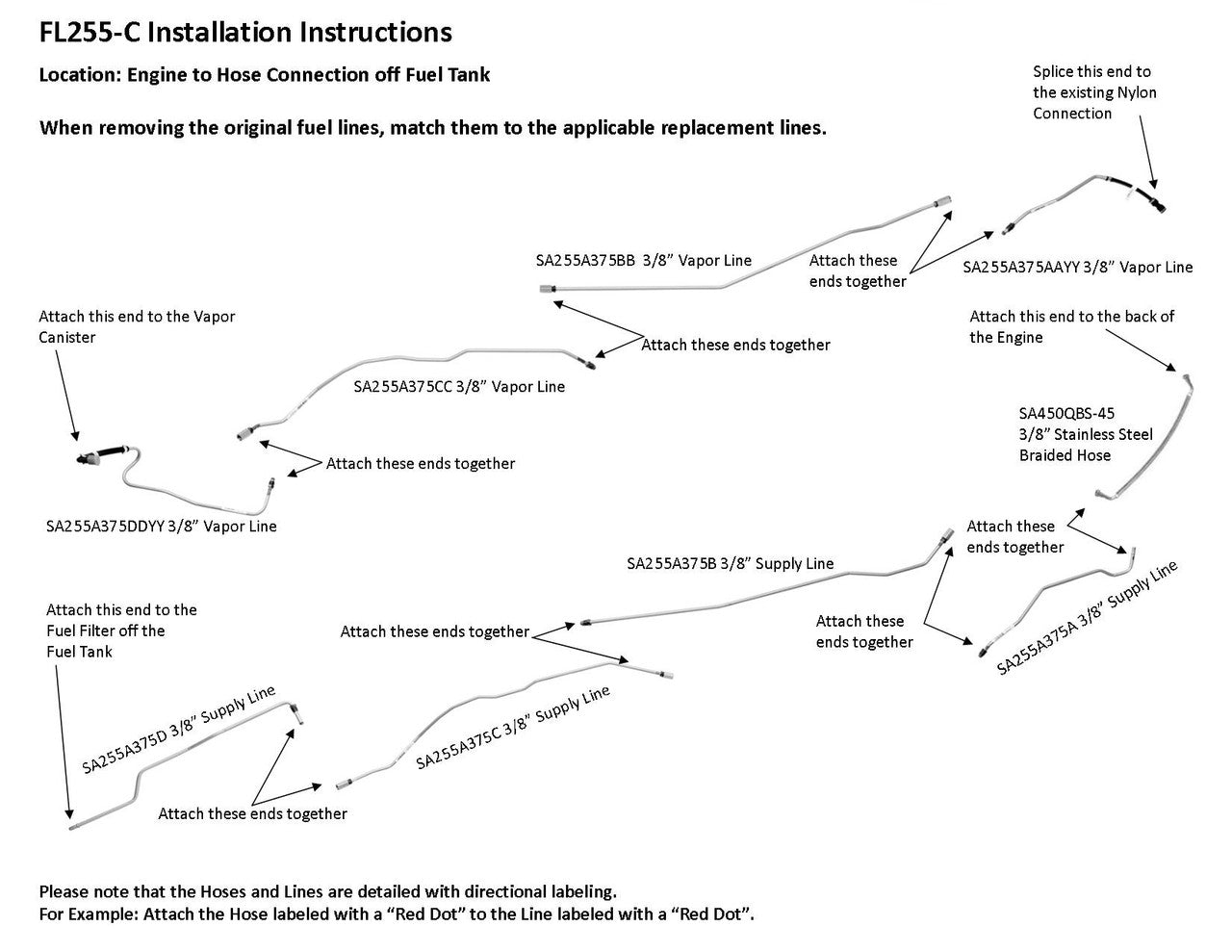

Engine to Hose Connection off Fuel Tank

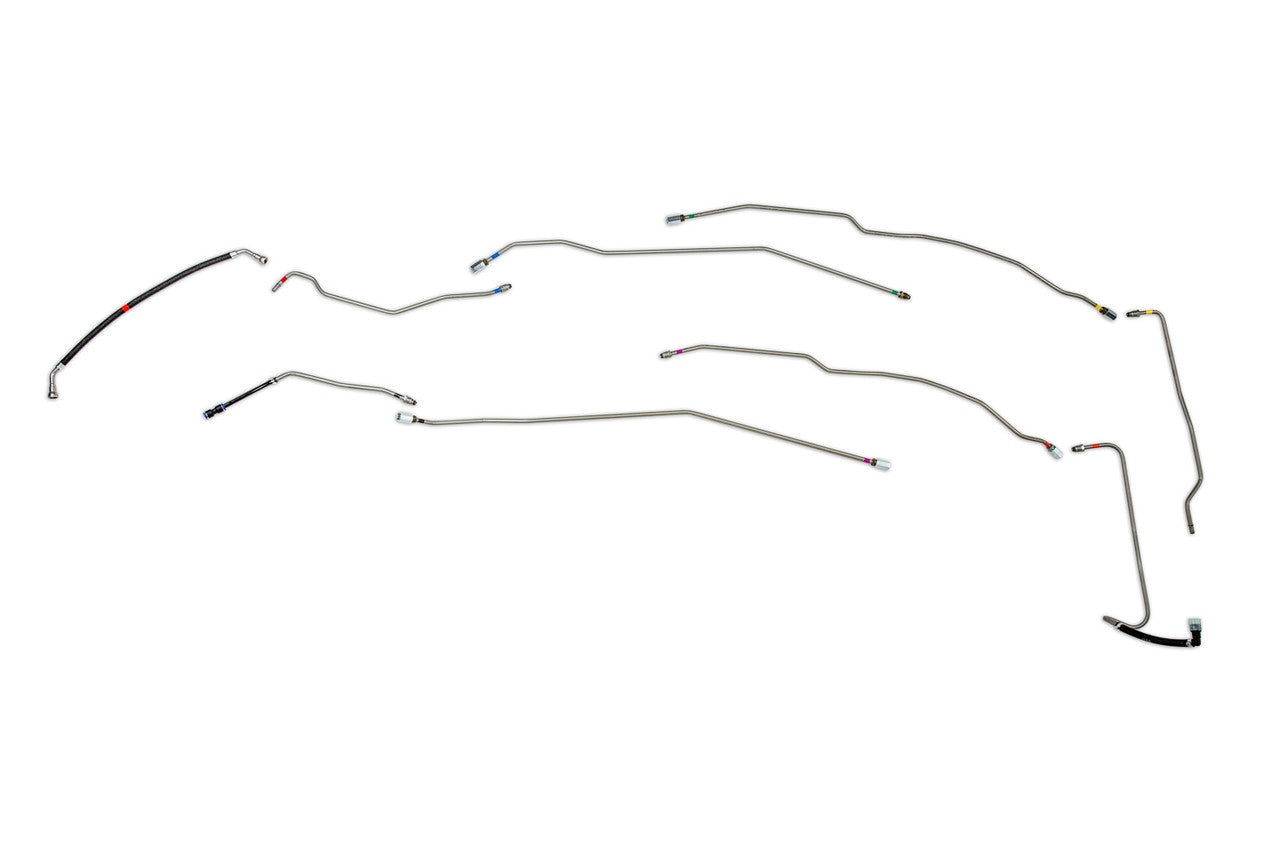

1 supply line 3/8" ( in 4 easy to install sections), 1 vapor line 3/8" ( in 4 easy to install sections), hose to engine connection, nylon lines with unions, 6 unions

15283296, 15938811

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses are made from Aramid Braided Teflon with OE style fittings: SA450QBS-45

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-504250

Avoid Ordering The Wrong Part

1-855-781-5992 (Toll Free)

Complete The Job With

Sale
3070-01 Nylon Line Repair Kit 2 Nylon Lines 3/8"
Save $13.75
Sale
6093-01 Nylon Line Repair Kit 1 Nylon Line 3/8" 90 Degree Connector
Save $12.50

Overall rating: 4.8636365 / 5 from 22 reviews.

AI Generated Review Summary

Summary topics

Review topics: [quality, service, fit, problems, lines, parts, price].

Review highlights

Reviews

FUEL LINE

"FIT GREAT EASY TO UNDERSTAND INSTALL"

— Neil L. (5/5)

Lines to go saved the day.

"I live in the rust belt, so the fuel lines on my 2011 HHR rusted through and began to leak. Some people just cut out the rusted part and put rubber fuel line in its place. I wasn't comfortable doing that. And the dealer wanted $950 for OEM fuel and vapor lines. And they are a one-piece line. I can't imagine how much work that would have been to put a one-piece line in. Thankfully lines to go had exactly what I needed. Shipping was fast and free. The order arrived the next day. The lines are broken down into sections and super simple to install. And Price was unbeatable. This is the second time I've used their fuel lines. I highly recommend them."

— Jay G. (5/5)

Once you figure out that

"Once you figure out that the colors don’t match the way it says and you figure out which line is which, it all fits together well and was leak free."

— Andrew W. (4/5)

Was an almost perfect fit

"Was an almost perfect fit to this 2010 hhr had to trim the hose side at the evap canister and slightly bend at the firewall but overall a good time saving kit"

— Trenton T. (5/5)

The parts ordered were delivered

"The parts ordered were delivered on time, and for a reasonable price. You were hands down the best price over others such as Rock Auto, Napa, and for sure General Motors. The fuel lines fit very well, and my personal mechanic complemented how they were made to fit just as your ad suggested: "Original GM Parts". My mechanic mentioned that he will definitely use your service in the future, and I definitely will refer you to others. Very satisfied customer."

— John K. (5/5)

They fit very well, a

"They fit very well, a great choice if you need fuel lines for these vehicles."

— Robert F. (5/5)

Worked good

"Worked good"

— Steve L. (5/5)

Excellent service, I received my

"Excellent service, I received my parts in less than 48 hours in undamaged packaging. Parts were easy to find and order online.Bonus is the part was almost 1/2 price compared to GM. Highly recommended! Thanks everyone."

— Cathy Q. (5/5)

Good quality, good fit, great

"Good quality, good fit, great service Original order had (1) piece missing, but the great Lady got me a replacement over night. Cost me a little down time but these things happen and the good part is that it was taken care of quickly. Would definitely use them again. Thanks"

— Larry P. (4/5)

Easy install great product

"Easy install great product"

— Micah H. (5/5)

Q&A
