w/o External Fuel Filter

SALE:
Save $41.39
/

Delivery Time & Rates

Shipping calculated at checkout.

Delivery Time & Rates

Shop LinesToGo Fuel Line Set for 2009 Chevy HHR. FL255-C2B Fuel Line Set for 2009 Chevy HHR with 2.0L w/o External Fuel Filter.

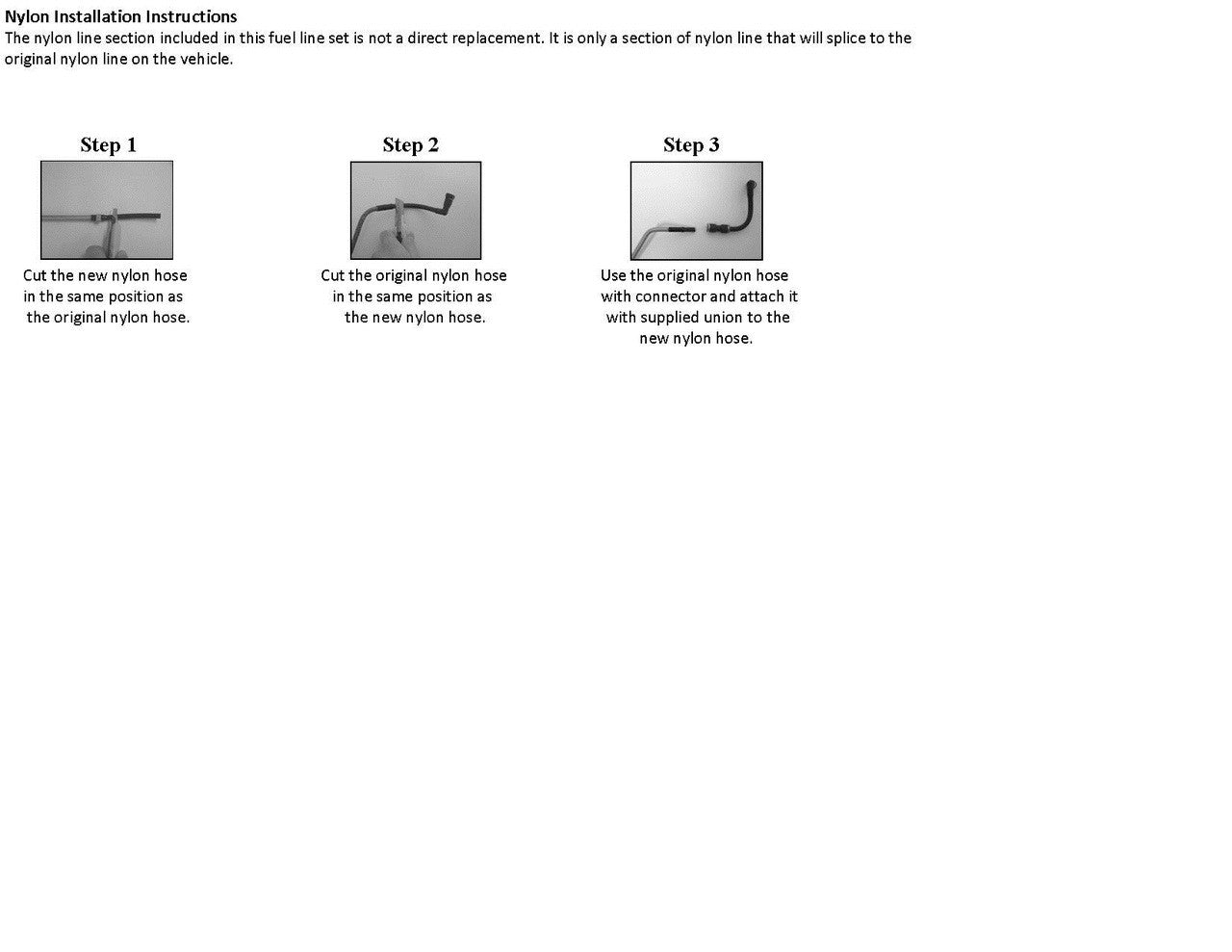

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

6093-01 includes 1 nylon line 3/8", 1 union, 1 quick connector 3/8"  90 degree

Repair Kit (Connection at Sending Unit): This may only be required if you are replacing the sending unit.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

SKU: FL255-C2B
Box Dimensions 46" x 11" x 7"

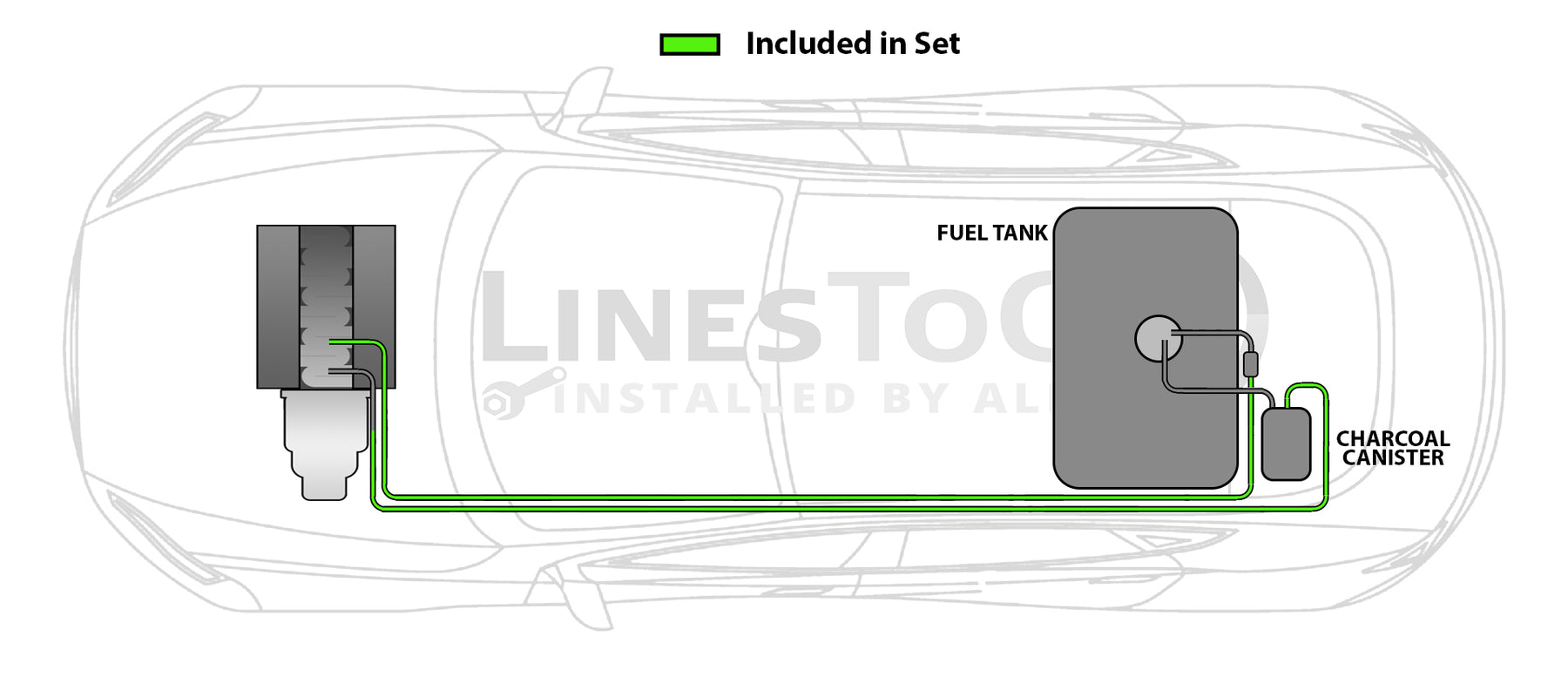

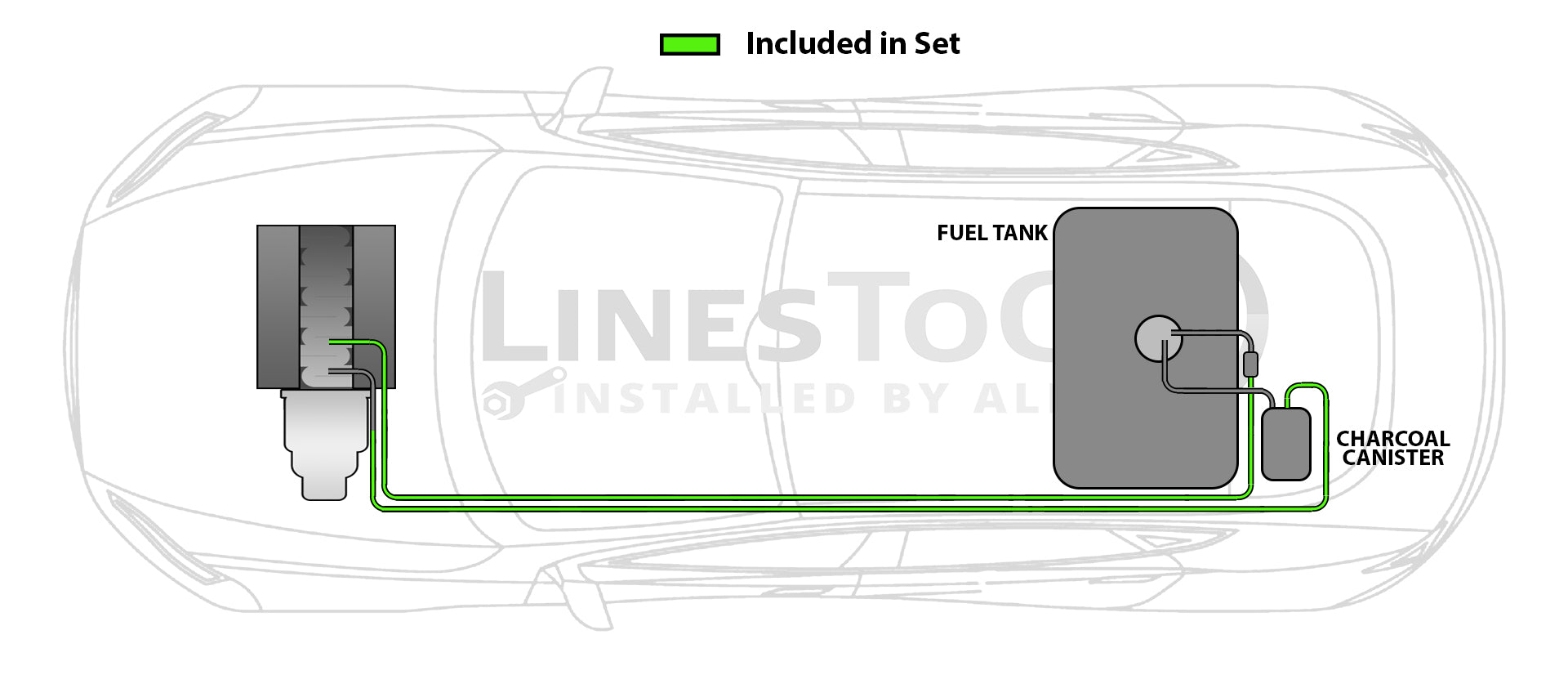

Engine to Hose Connection off Fuel Tank

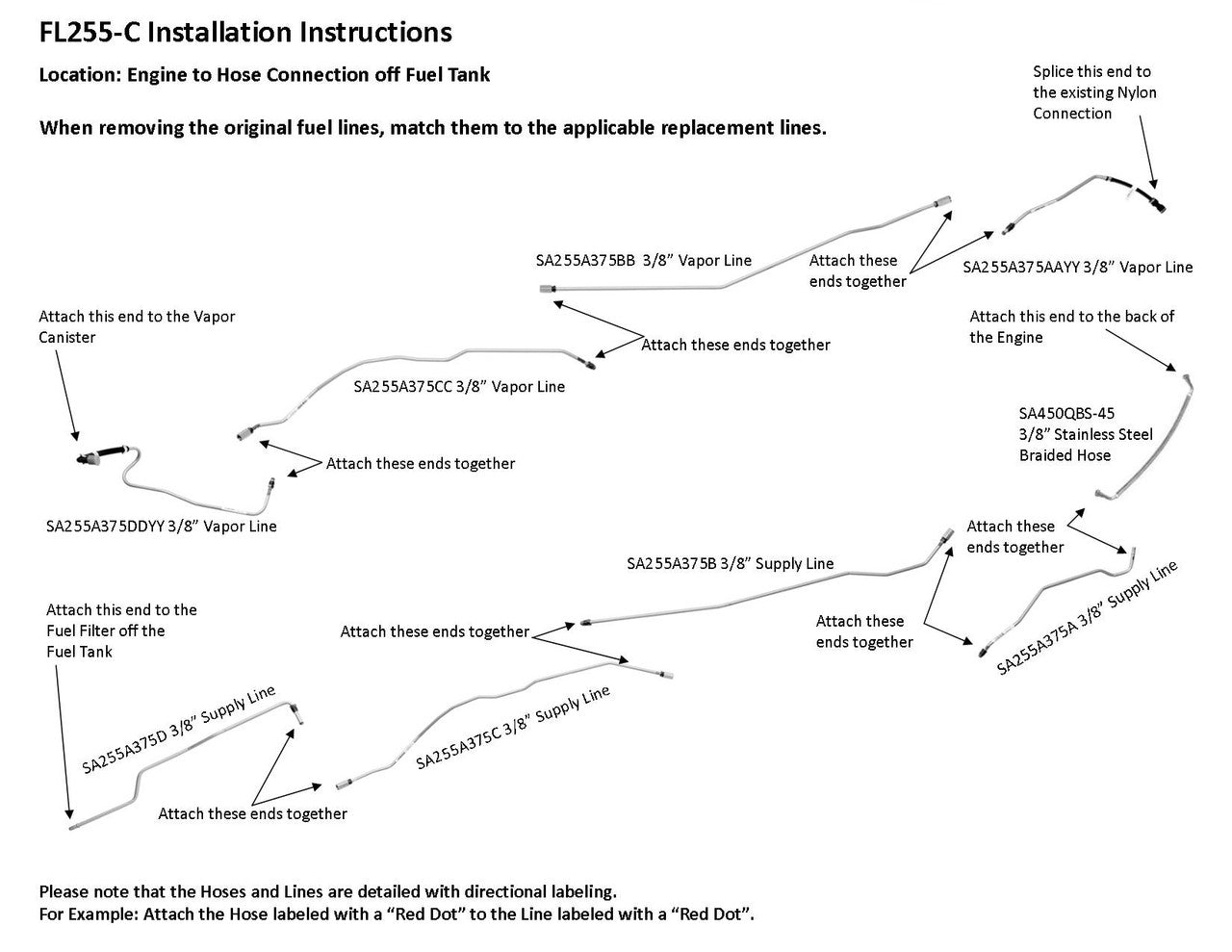

1 supply line 3/8" ( in 4 easy to install sections), 1 vapor line 3/8" ( in 4 easy to install sections), hose to engine connection, nylon lines with unions, 6 unions

15283296, 15938811

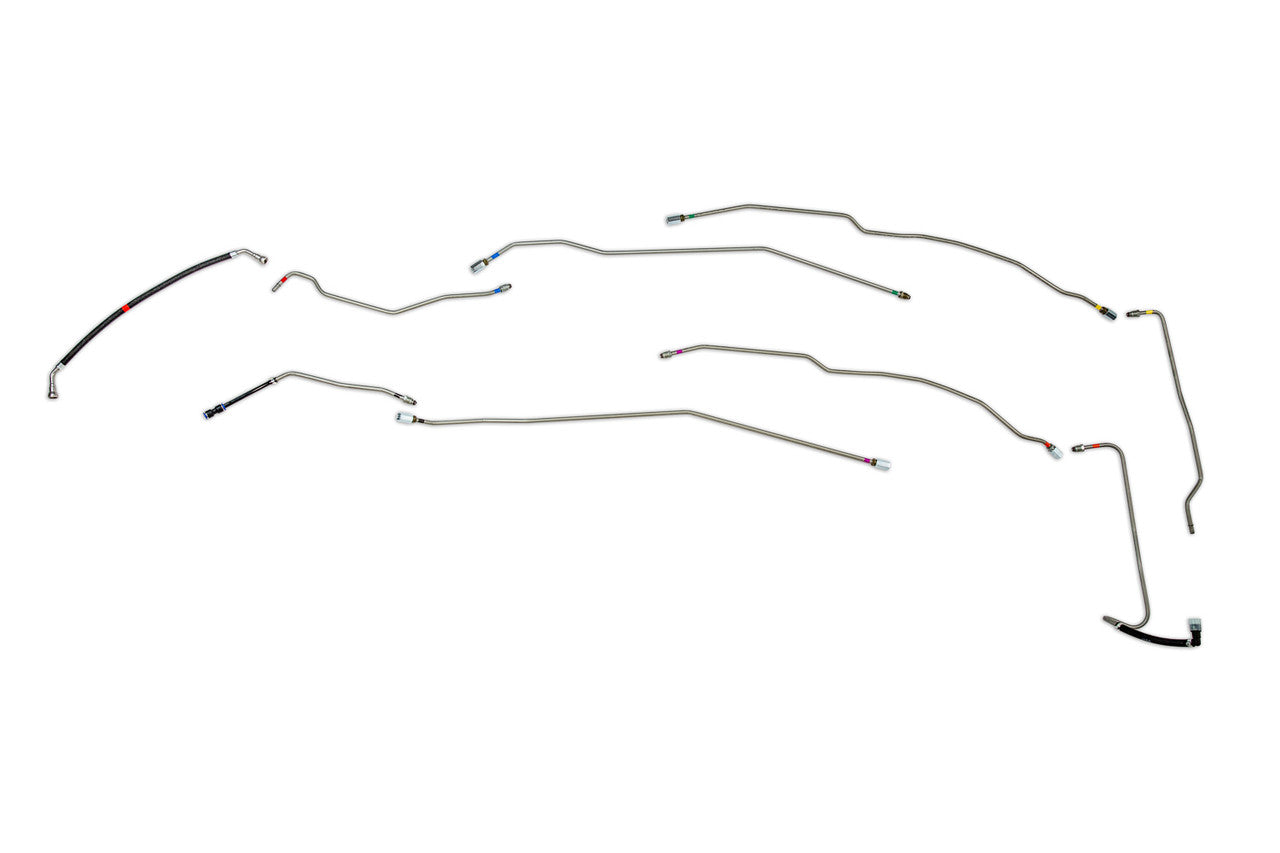

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses are made from Aramid Braided Teflon with OE style fittings: SA450QBS-45

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-504250

Avoid Ordering The Wrong Part

1-855-781-5992 (Toll Free)

Complete The Job With

Sale
3070-01 Nylon Line Repair Kit 2 Nylon Lines 3/8"
Save $13.75
Sale
6093-01 Nylon Line Repair Kit 1 Nylon Line 3/8" 90 Degree Connector
Save $12.50

Overall rating: 4.3703704 / 5 from 27 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["fit","quality","instructions","shipping","lines","use"].

Review highlights

Reviews

Quality of fuel lines, fittings

"Quality of fuel lines, fittings and connections were good, like OE. Figment of lines in this particular application was not as good as expected."

— Tom T. (5/5)

They fit like a dream

"They fit like a dream"

— Tracy B. (5/5)

product is as expected the

"product is as expected the only mod that should be made is the unions bodies should be further apart so they don't sit on top of each other"

— Paul C. (4/5)

Way, Way easier than bending

"Way, Way easier than bending your own. The pressure line section, going to the motor, needed a lot of re-bending to keep from rubbing on the underbody. All in all the install was easy. It helps to unhook the exhaust hangers to let it hang out of the way. Leave the couplers loose until you have all the lines in place to avoid misalignment. The brake lines on the HHRs are coated and did not need replacing. 11 year old Wisconsin car."

— Lawrence H. (4/5)

Great product and easy install,

"Great product and easy install, perfect !!!"

— Guy L. (5/5)

Lines are very good quality

"Lines are very good quality and are pre bent perfectly . Fittings supplied were all good quality as well . Instructions were a little vague could have been a little more informative as to which is the fuel line and which is the return line but I eventually figured it out . Had trouble connecting to my existing gas tank line and existing connector . Had to research and purchase this connector to complete the project ."

— Christine M. (4/5)

They worked great! No issues

"They worked great! No issues so far. We will use your products again for sure."

— Scott S. (5/5)

Excellent quality and fit, instructions OK

"The only difficulty I encountered on my 2009 HHR was removal of the stubborn fitting at the gas tank (the line was rusted). To gain better access I removed the three lines going to the plastic cannister and the tank filler hose. After a lot of effort with my plastic 3/8 Removal tool the tank fitting still wouldn’t come off. I finally used my Plastic 7/16 tool. Oversized, but it worked. My line removal tools are name brand , but I’ve never been impressed with their quality - they feel flimsy. In hindsight, I may have had better luck with the tool offered by linestogo. It appears to be heftier and is reasonably priced."

— Ed J. (4/5)

Worked perfect!

"Worked perfect!"

— David T. (5/5)

Perfect fit and quality

"Perfect fit and quality"

— Chris M. (5/5)
