Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A

w/o External Fuel Filter

Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A
Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A

Chevy HHR Fuel Line Set 2008 2.0L FL255-C2A

w/o External Fuel Filter

SALE:
Save $41.39
/

Delivery Time & Rates

Shipping calculated at checkout.

Delivery Time & Rates

Shop LinesToGo Fuel Line Set for 2008 Chevy HHR. FL255-C2A Fuel Line Set for 2008 Chevy HHR with 2.0L w/o External Fuel Filter.

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

6093-01 includes 1 nylon line 3/8", 1 union, 1 quick connector 3/8"  90 degree

Repair Kit (Connection at Sending Unit): This may only be required if you are replacing the sending unit.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

SKU: FL255-C2A
Box Dimensions 46" x 11" x 7"

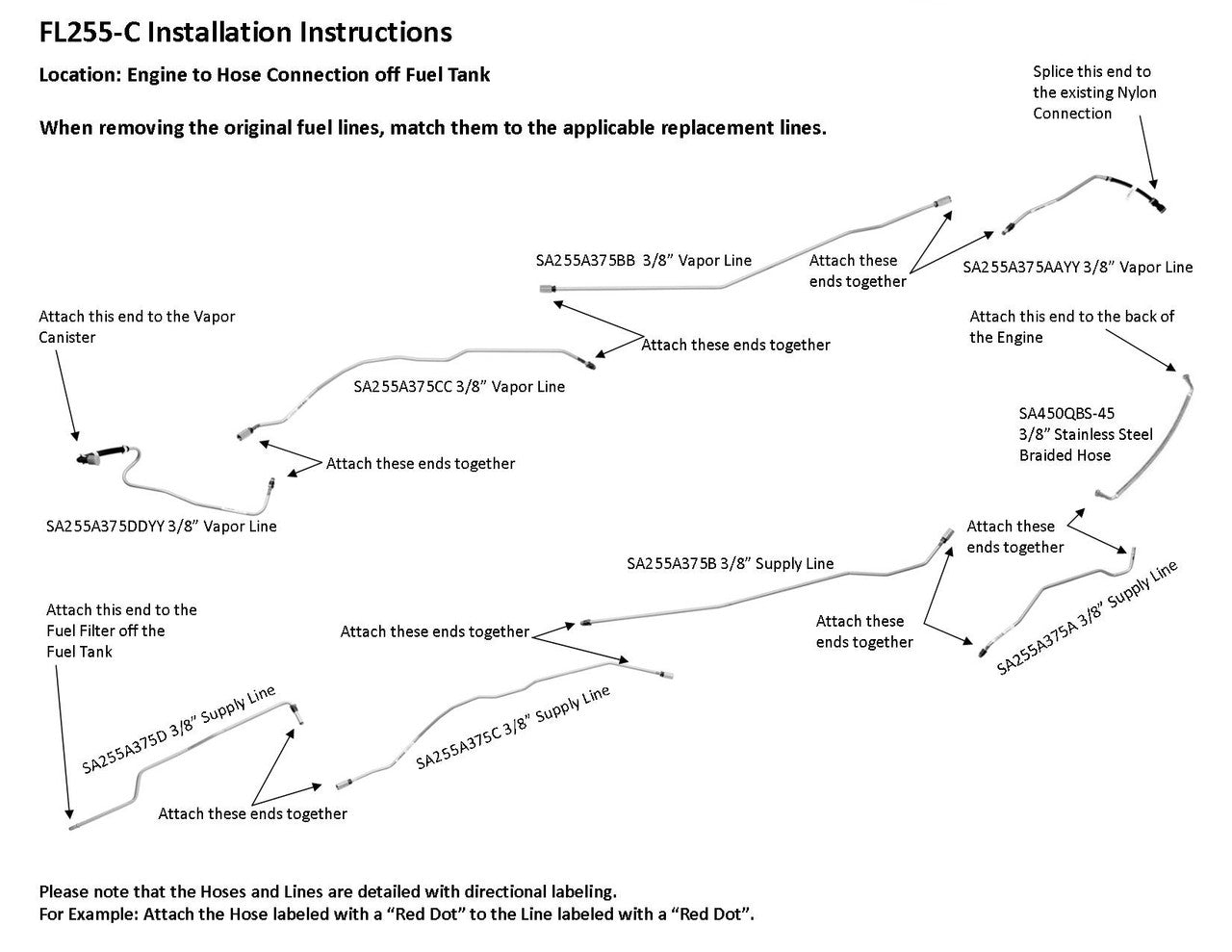

Engine to Hose Connection off Fuel Tank

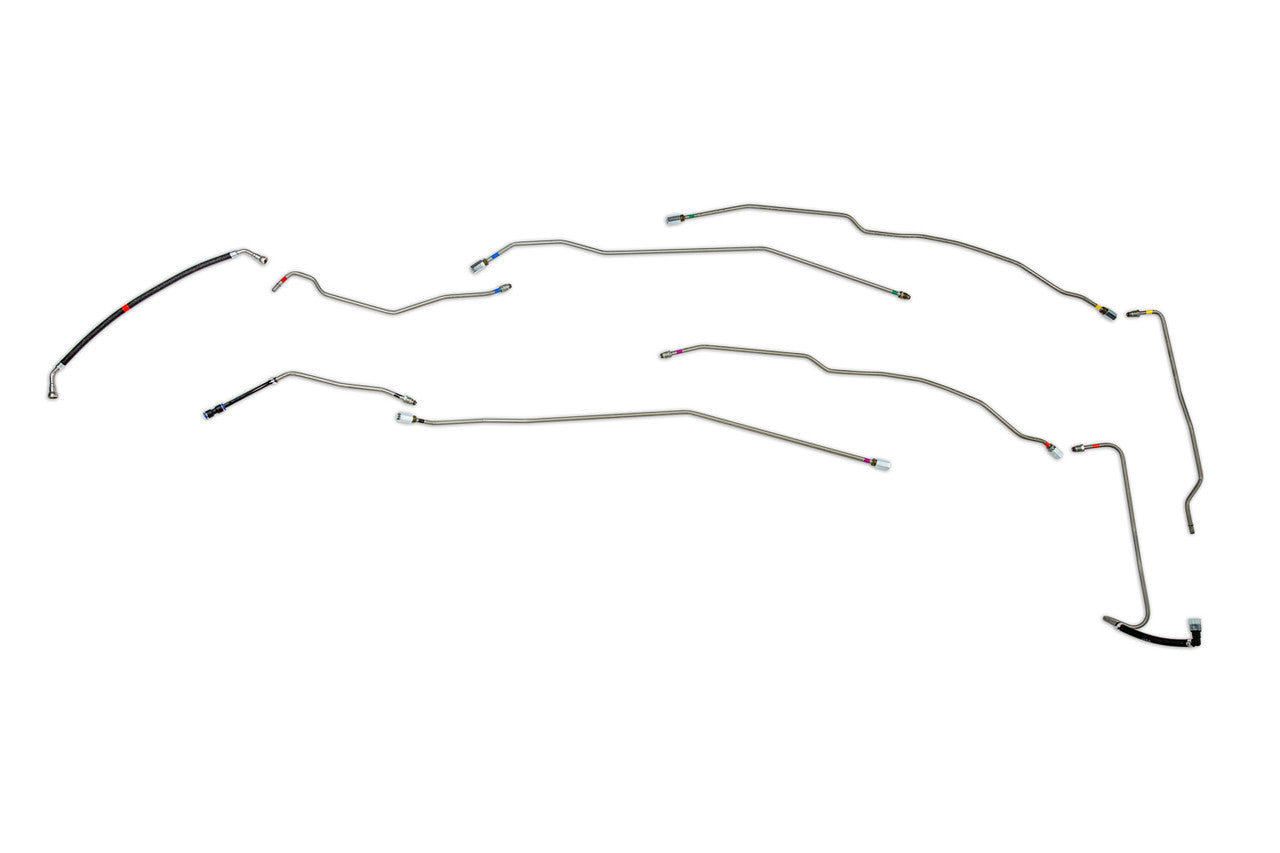

1 supply line 3/8" ( in 4 easy to install sections), 1 vapor line 3/8" ( in 4 easy to install sections), hose to engine connection, nylon lines with unions, 6 unions

15283296, 15938811

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses are made from Aramid Braided Teflon with OE style fittings: SA450QBS-45

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-504250

Avoid Ordering The Wrong Part

1-855-781-5992 (Toll Free)

Complete The Job With

Sale
3070-01 Nylon Line Repair Kit 2 Nylon Lines 3/8"
Save $13.75
Sale
6093-01 Nylon Line Repair Kit 1 Nylon Line 3/8" 90 Degree Connector
Save $12.50

Overall rating: 4.6 / 5 from 25 reviews.

AI Generated Review Summary

Summary topics

Review topics: [install, price, lines].

Review highlights

Reviews

fit great, much eaiser than

"fit great, much eaiser than getting 1 complete line from the deliver"

— Mark S. (5/5)

Quick and easy. I changed

"Quick and easy. I changed them all in an afternoon with my car on jackstands."

— Harry C. (5/5)

Sadly, we got this set

"Sadly, we got this set of lines, one of the line ends was manufactured wrong, there was no way we could use it. We had to lower the vehicle, push it back out of the shop, wait a day or two for a replacement part to come, then we had to push it back in and finish the job. This could have been avoided by and kind of quality control. The other times we have used these lines, they were fine."

— Robert F. (2/5)

A little tuff at first

"A little tuff at first but once I figured out the sequence it was a breeze.. nice product"

— Walter H. (5/5)

LINES ARE GREAT SHIPPING TERRIABLE

"LINES ARE GREAT SHIPPING TERRIABLE FULL WEEK"

— Travis C. (5/5)

At our shop lines to

"At our shop lines to go is our go to place for anything that has leaking fuel lines. Very easy and straight forward to replace. That being said when my work car needed new lines I ordered from here. Perfect figment and easy Installation as always."

— Jason H. (5/5)

I was told it would

"I was told it would be a two day delivery, it was four instead. The connections of the sections were placed in the absolute worst places as anyone who actually went under the HHR would quickly see! I did finally get it together after a lot of fussing with really tight work spaces that could have been more realistically placed elsewhere! I had to cut away some shielding so the connectors would fit. It is working and is still the best option i could find."

— John T. (3/5)

Good product well made

"Good product well made"

— Frank C. (5/5)

Awesome! Extremely fast shipping. Easy

"Awesome! Extremely fast shipping. Easy install. Perfect fit."

— Jason S. (5/5)

Everything fit well. Wish you

"Everything fit well. Wish you could include a paper copy of instructions in box."

— Robert S. (5/5)

Q&A
