Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A

w/o External Fuel Filter

Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A
Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A

Chevy HHR Fuel Line Set 2006 2.2L FL255-C1A

w/o External Fuel Filter

SALE:
Save $41.39
/

Delivery Time & Rates

Shipping calculated at checkout.

Shop LinesToGo Fuel Line Set for 2006 Chevy HHR. FL255-C1A Fuel Line Set for 2006 Chevy HHR with 2.2L engines w/o External Fuel Filter.

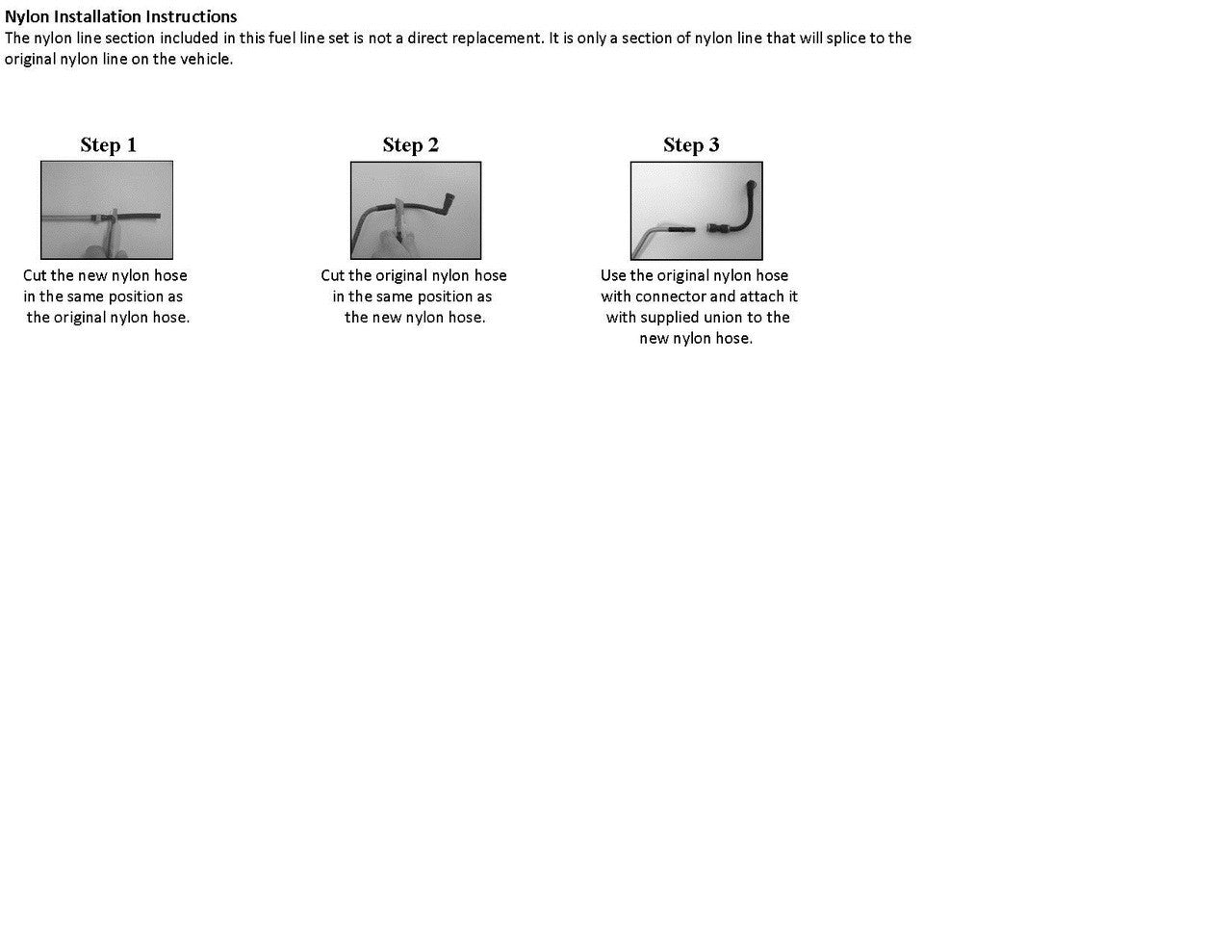

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

6093-01 includes 1 nylon line 3/8", 1 union, 1 quick connector 3/8"  90 degree

Repair Kit (Connection at Sending Unit): This may only be required if you are replacing the sending unit.

3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"

SKU: FL255-C1A
Box Dimensions 46" x 11" x 7"

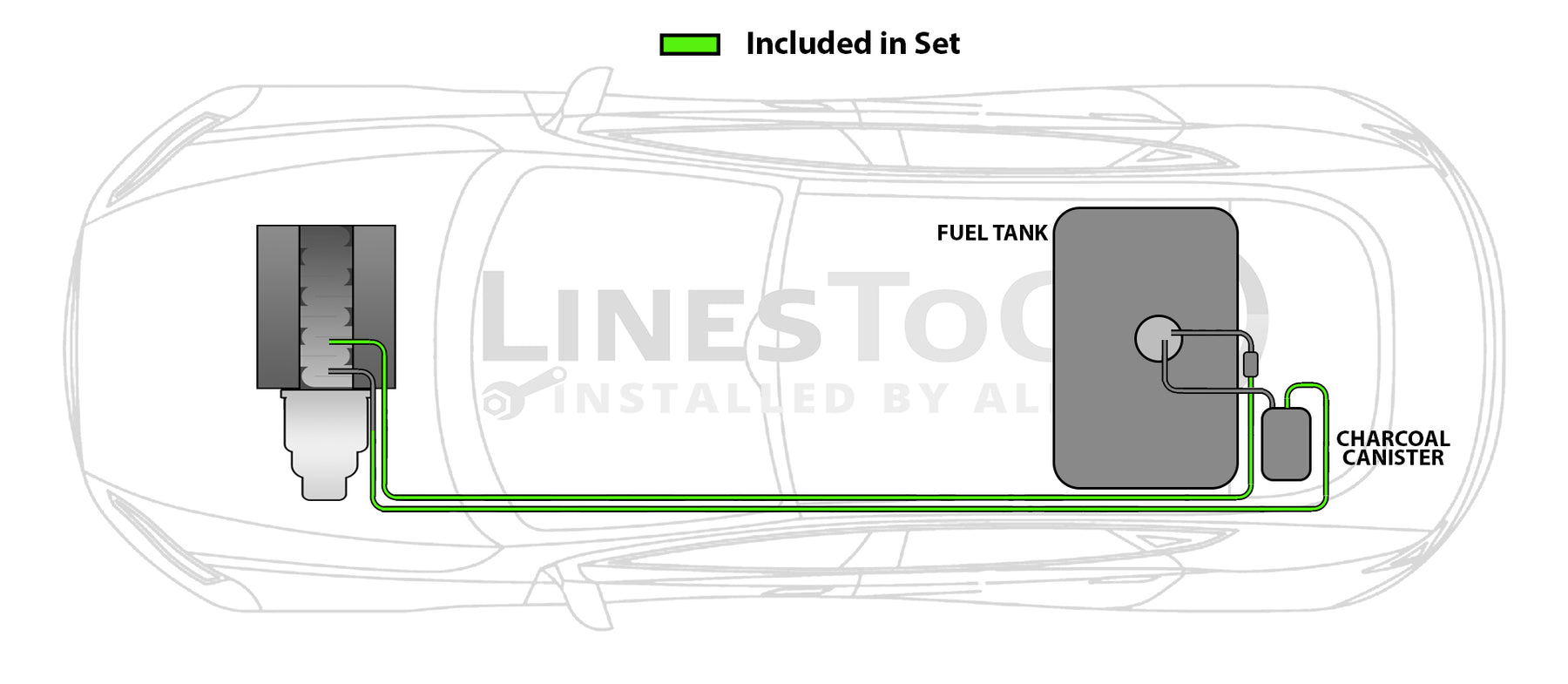

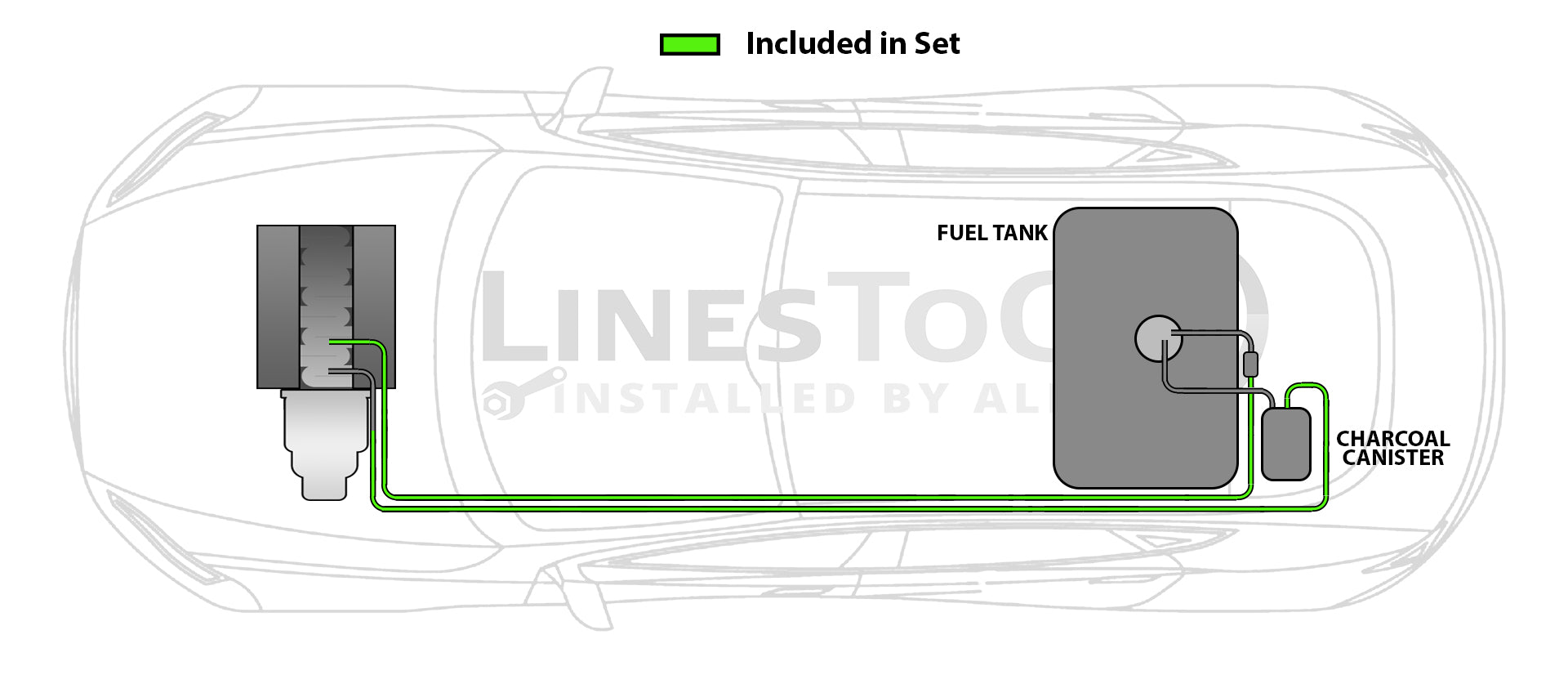

Engine to Hose Connection off Fuel Tank

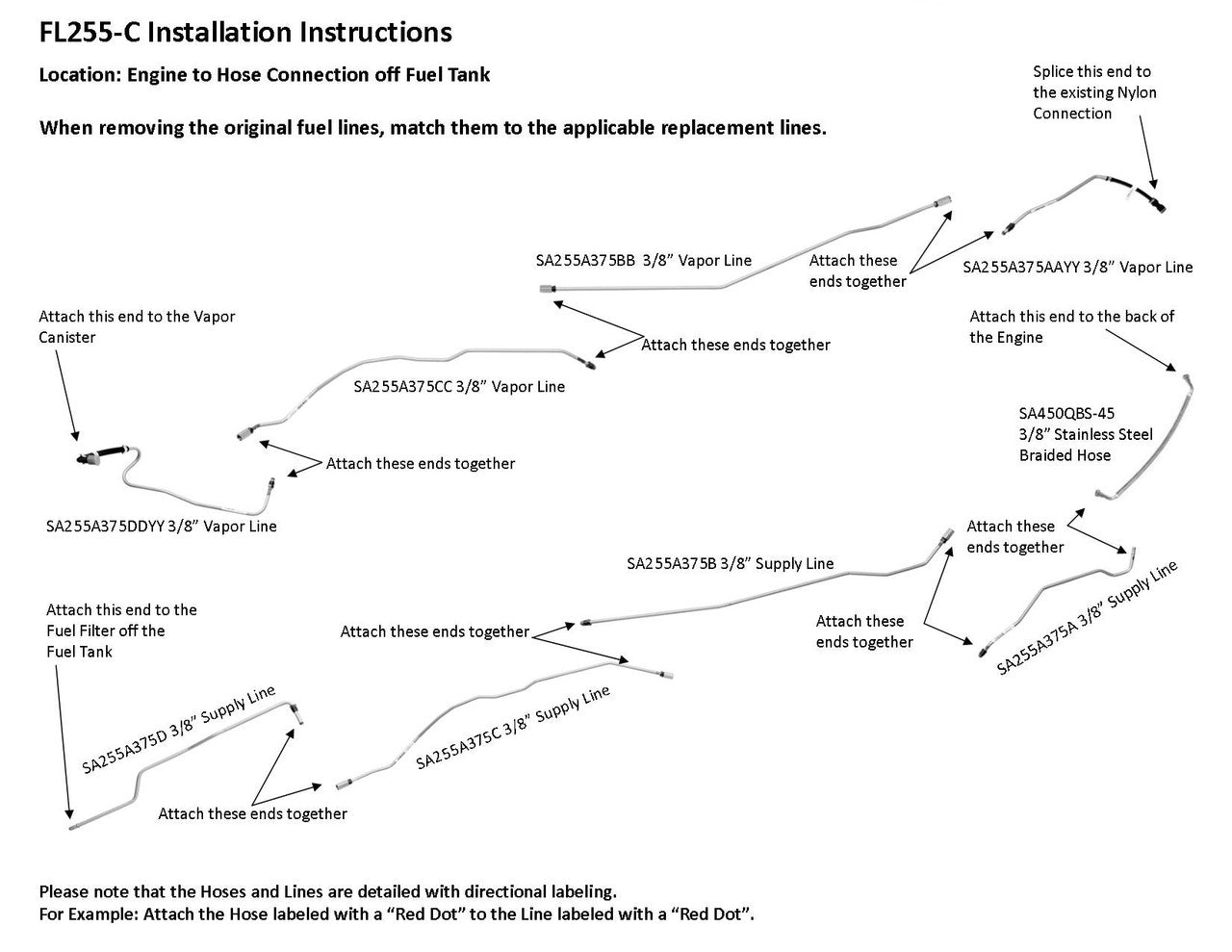

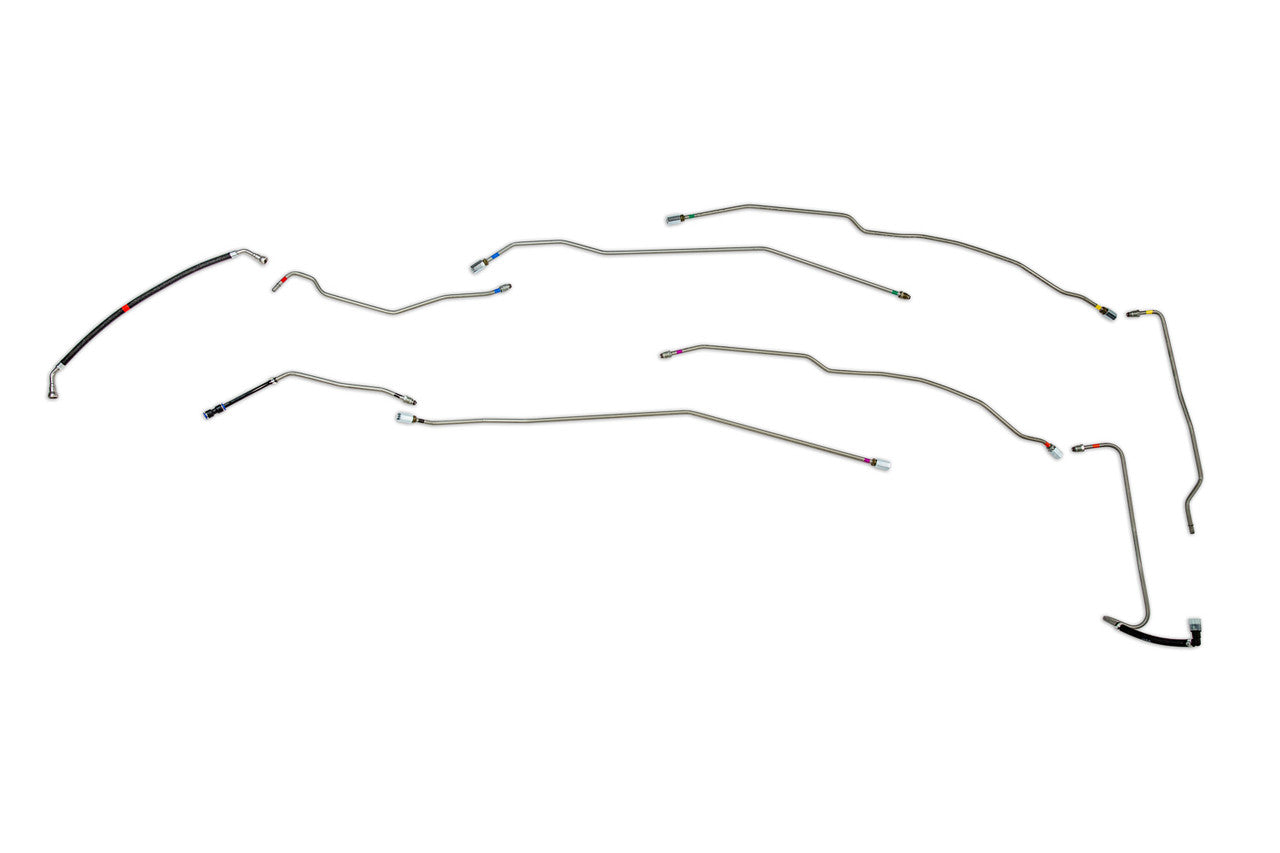

1 supply line 3/8" ( in 4 easy to install sections), 1 vapor line 3/8" ( in 4 easy to install sections), hose to engine connection, nylon lines with unions, 6 unions

15283296, 15938811

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses are made from Aramid Braided Teflon with OE style fittings: SA450QBS-45

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-504250

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Complete The Job With

Sale
3070-01 Nylon Line Repair Kit 2 Nylon Lines 3/8"
Save $13.75
Sale
6093-01 Nylon Line Repair Kit 1 Nylon Line 3/8" 90 Degree Connector
Save $12.50
Sale
Quick Disconnect Tool, Steel 3/8" & 5/16" 5230-01
Save $3.12

Overall rating: 4.759259 / 5 from 54 reviews.

AI Generated Review Summary

Customers praised the Chevy HHR Fuel Line Set for its perfect fit and excellent service. However, opinions on the installation of the lines were mixed.

Summary topics

  • Customer Service: 14%
  • Product Fit: 29%
  • Line Installation: 19%

Review topics: [service, fit, install, problems, shipping, lines, price, kit, buy, leaks].

Review highlights

  • "Fantastic product good price and quick service when I really needed it." — Douglas B.
  • "very good product fit well no problems with install" — John G.
  • "Great service and great price!" — Philip B.

Reviews

GREAT PRODUCT

"WAS DELIVERED QUICKLY AND HERE ON TIME. THE FIT WAS PERFECT. THIS WAS THE THIRD ORDER OF LINES AND WE ARE 3 FOR 3!! I WILL BE BACK."

— Wesley T. (5/5)

Great price. Super fast shipping.

"Great price. Super fast shipping. Installion was easy ."

— Pablo A. (5/5)

Easy installation. Perfect fit. Complete

"Easy installation. Perfect fit. Complete kit. All around great."

— Jerry A. (5/5)

Tubing is made in Canada,

"Tubing is made in Canada, not China! The bends are accurately shaped according to original tubing. So far no leaks. Start from the back to make sure you don't cross the brake lines with the fuel lines, behind the driver side tire. Take photos of how these line are oriented. If you don;.t the fuel and brake lines will rub, and that is a safety concern. AND it becomes difficult to get new fuel lines to lay right, and difficult to get wrenches on them. Take some tape, mark vapor and fuel original lines before removing, take photos of the tapes,so you will know which lines run in which grooves in the various plastic line clips. Highly doubt you can do this whole job in 2 hours, as one person claims,"

— Chris S. (5/5)

good service as always

"good service as always"

— Gerald S. (5/5)

This is an extremely nice

"This is an extremely nice kit to install, very intuitive and well laid out. Took me about 2 hours to do the full replacement and they follow the frame rails like the factory set. Very nice and worth the money if yo need to replace the dreaded rotten fuel lines."

— Kyle L. (5/5)

The multiple pieces make installation

"The multiple pieces make installation easy."

— Marty R. (5/5)

Great purchase just what I

"Great purchase just what I needed fast shipping great company thank u very much"

— Shane W. (5/5)

Installation fairly easy, bends in

"Installation fairly easy, bends in tubing not quite the same as original"

— Judy G. (4/5)

Good fit but had a

"Good fit but had a bad flare on 1 line."

— Ryan S. (2/5)

Q&A
