Product Overview

Shop LinesToGo for 1996 Chevy G Series fuel lines for G3500/Van Rally/Vandura 4.3L engines.

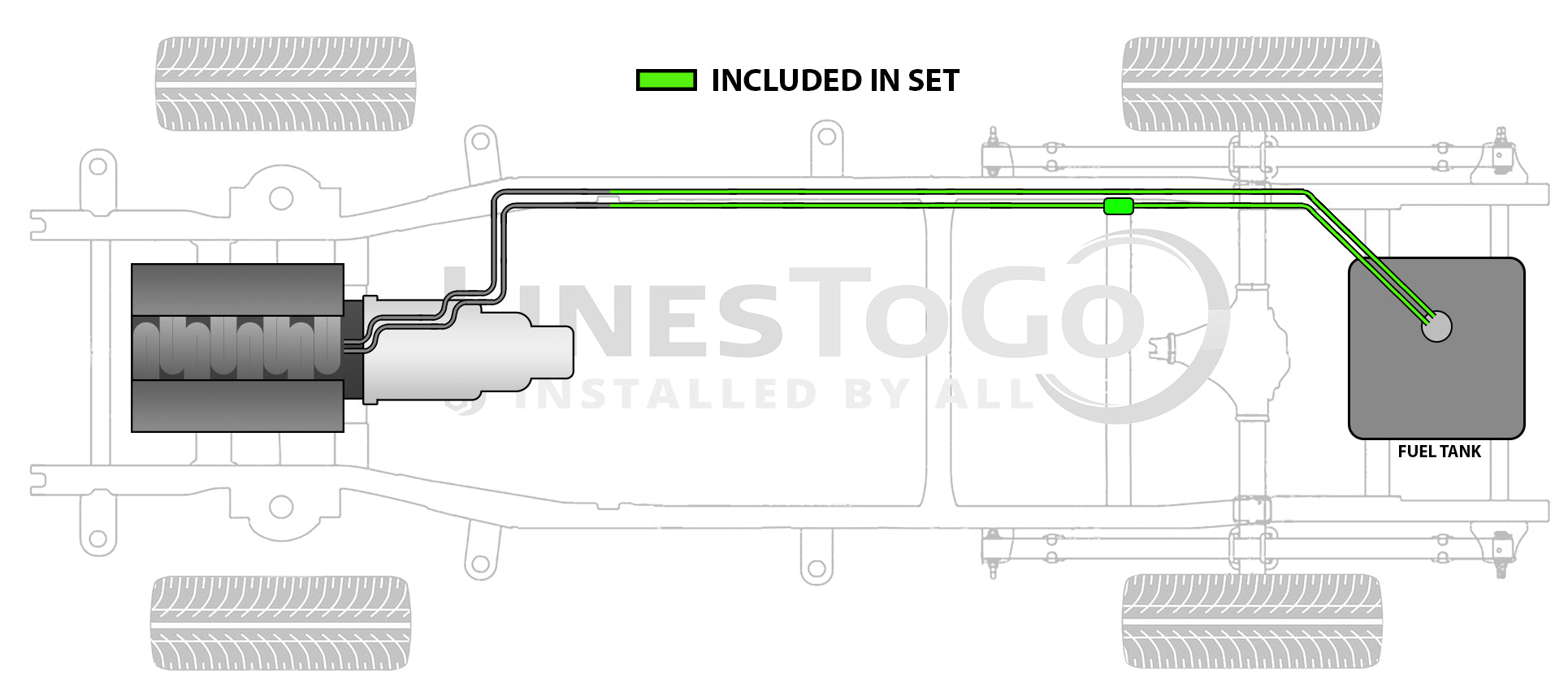

Location: Fuel Tank to Where Front Section Connects at Frame

OEM Part Number15544807, 15544814, 15556581

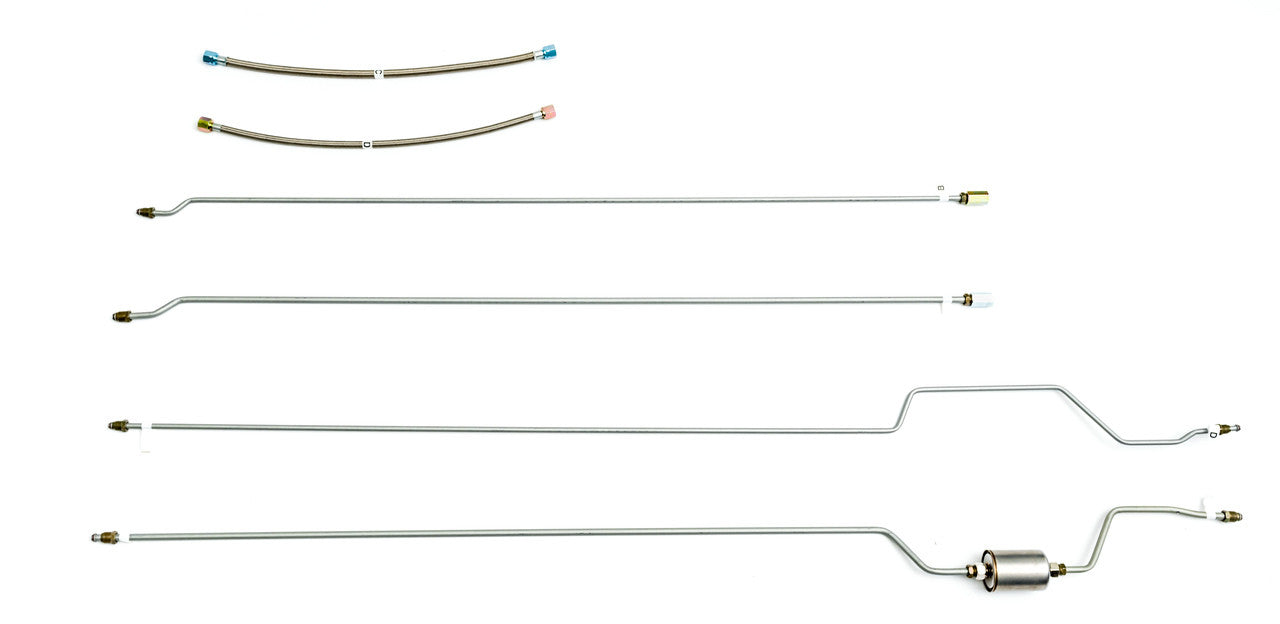

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), hoses to sending unit connection, 1 fuel filter, 2 unions

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 67" x 6" x 4"
