Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N

Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N
Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N

Chevy G Series Van Rear Fuel Line Set 1993 1500/2500/3500 125" WB 5.7L FL499-A1N

SALE:
Save $60.07
/

Delivery Time & Rates

Shipping calculated at checkout.

Shop LinesToGo for 1993 Chevy G Series fuel lines for Van/Sportvan/Rally/Vandura 1500/2500/3500 125" WB 5.7L engines

SKU: FL499-A1N
Box Dimensions 67" x 6" x 4"

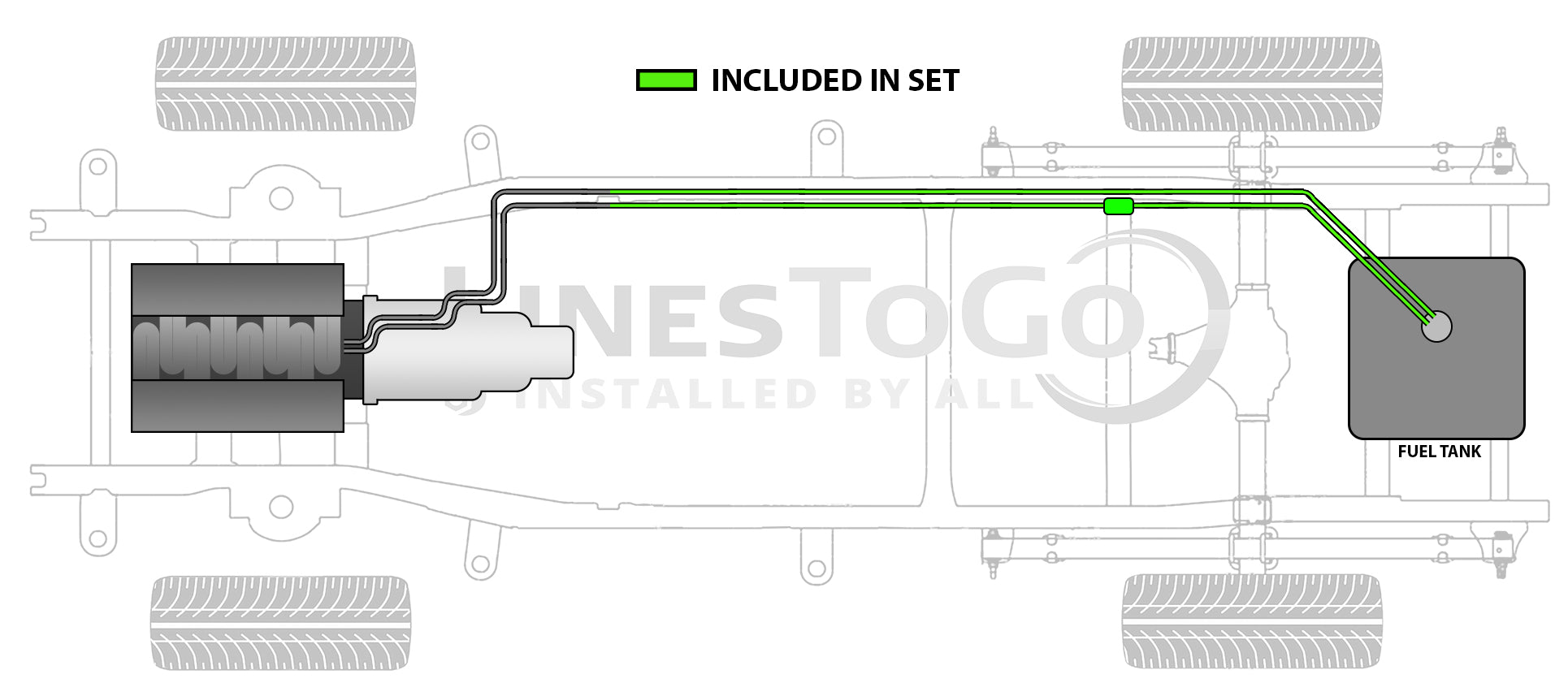

Fuel Tank to Where Front Section Connects at Frame

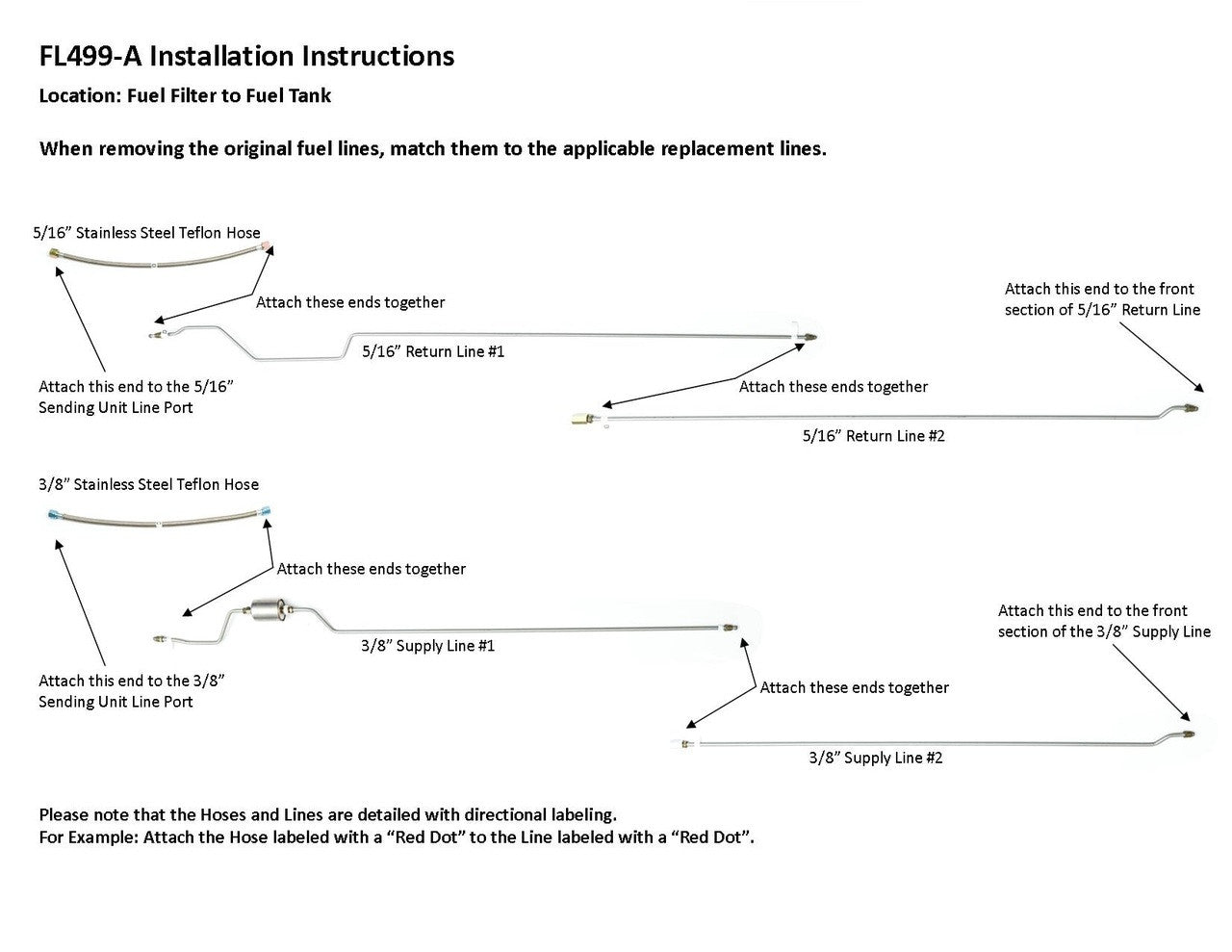

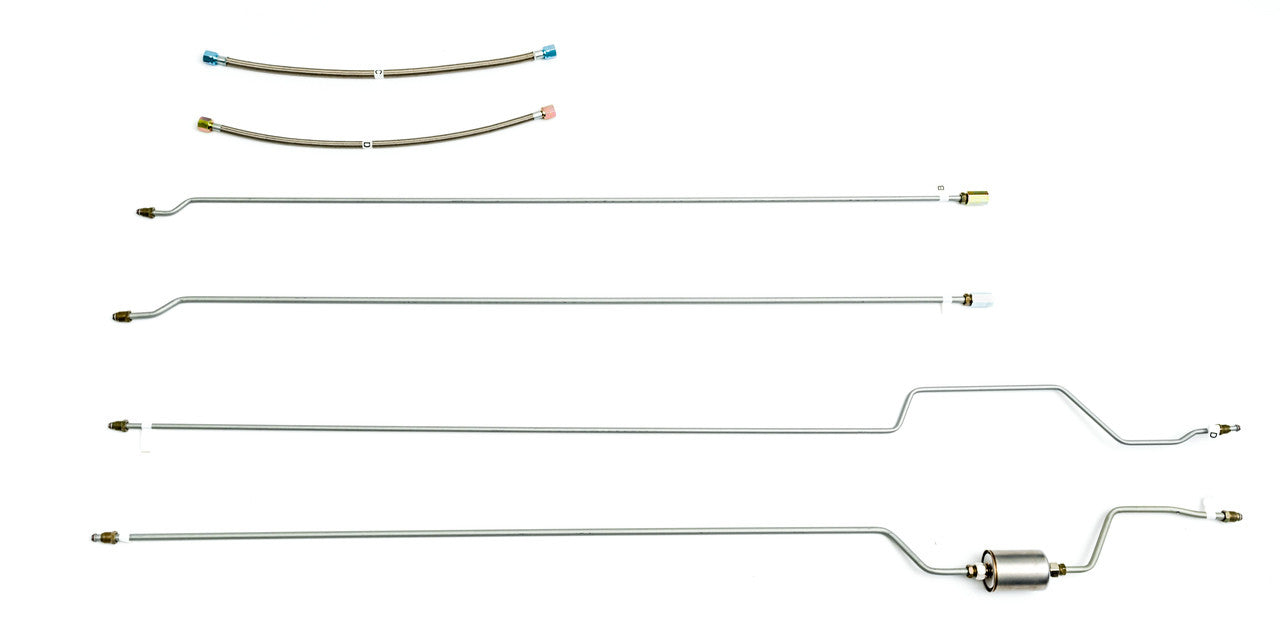

1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), hoses to sending unit connection, 1 fuel filter, 2 unions

15544807, 15544814, 15556581

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Complete The Job With

Sale
Chevy G Series Van Front Fuel Line Set 1993 1500/2500/3500 5.7L 125" WB FL498-A1L
Save $50.83

Overall rating: 5.0 / 5 from 3 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

"Fit perfectly and two peice design made install easygoing"

— Roger (5/5)

Perfect fit.

"They shipped to me fast and They fit perfectly on my 1993 Chevy G20. It's rare that a company makes automotive parts that say fit and they actually do fit with no issues. I'll buy more lines from this company in the future."

— Tom (5/5)

Solid construction easy to install,

"Solid construction easy to install, especially liked that the longer lines are split into two, making installation a breeze. Must drop the fuel tank to install the flex lines."

— Ron B. (5/5)
