Chevy Express 1500 Transmission Line Set 2004 5.3L TCL-134-3B

w/Traditional Radiator Hose Clamp on Lower Out Hose 1st Design

Chevy Express 1500 Transmission Line Set 2004 5.3L TCL-134-3B
Chevy Express 1500 Transmission Line Set 2004 5.3L TCL-134-3B
Chevy Express 1500 Transmission Line Set 2004 5.3L TCL-134-3B
Chevy Express 1500 Transmission Line Set 2004 5.3L TCL-134-3B

Chevy Express 1500 Transmission Line Set 2004 5.3L TCL-134-3B

w/Traditional Radiator Hose Clamp on Lower Out Hose 1st Design

SALE: from
from
Save $28.74
from /

Delivery Time & Rates

Zip/Postal Code:
  • Weight: 7

Product Overview

Install this pre bent 2004 transmission cooler line set in no time!

Transmission Cooler Line Chevrolet Express 1500 2004 5.3L engines only w/Traditional Radiator Hose Clamp on Lower Out Hose 1st Design

OEM Part Number: 15808429, 15751523

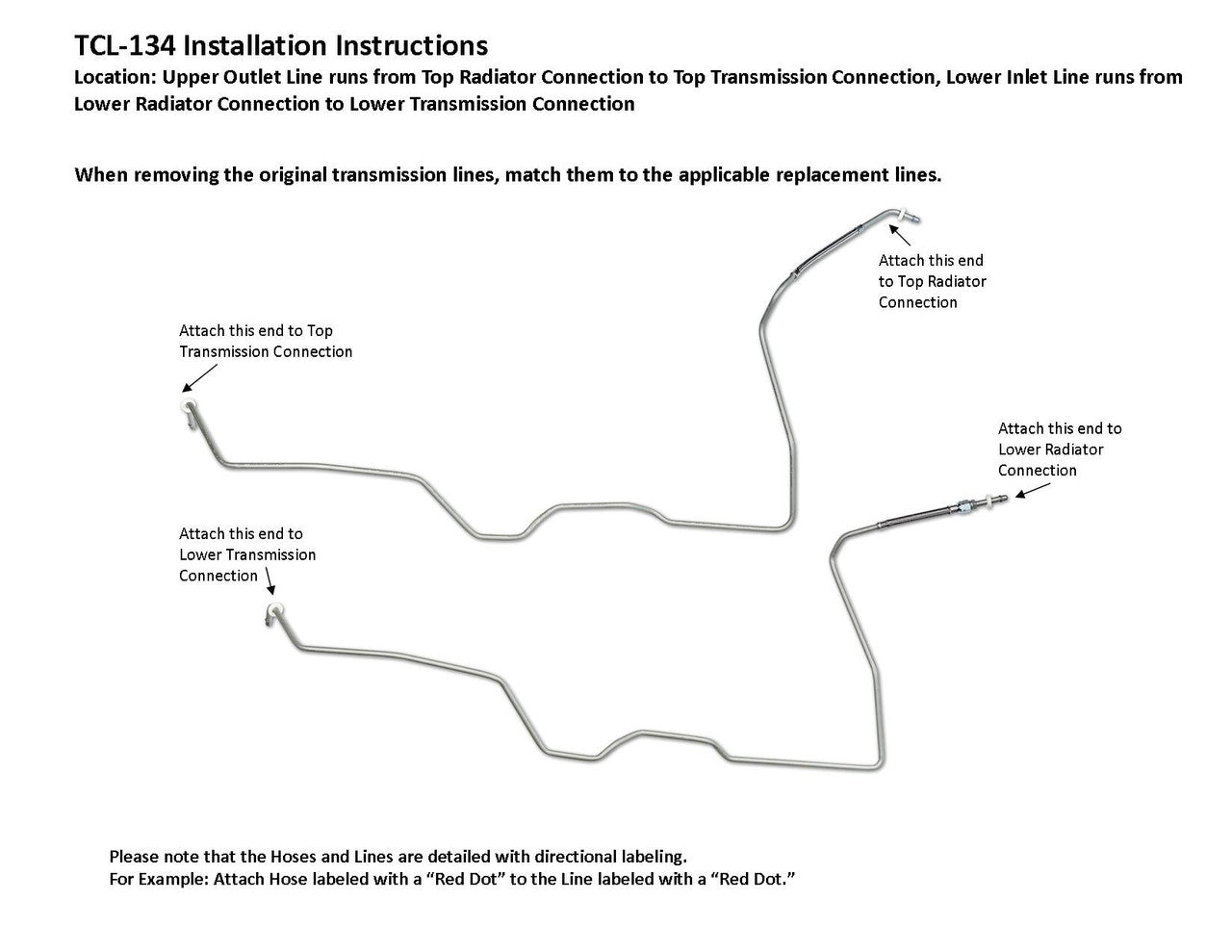

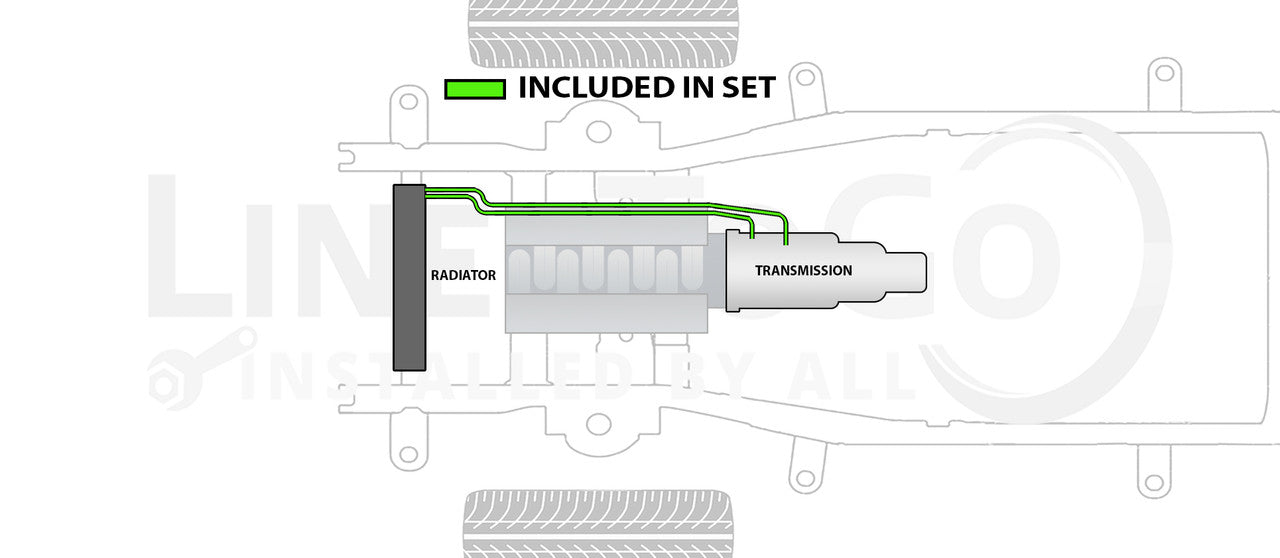

Location: Upper Outlet Line runs from Upper Radiator Connection to Upper Transmission Connection, Lower Inlet Line runs from Lower Radiator Connection to Lower Transmission Connection

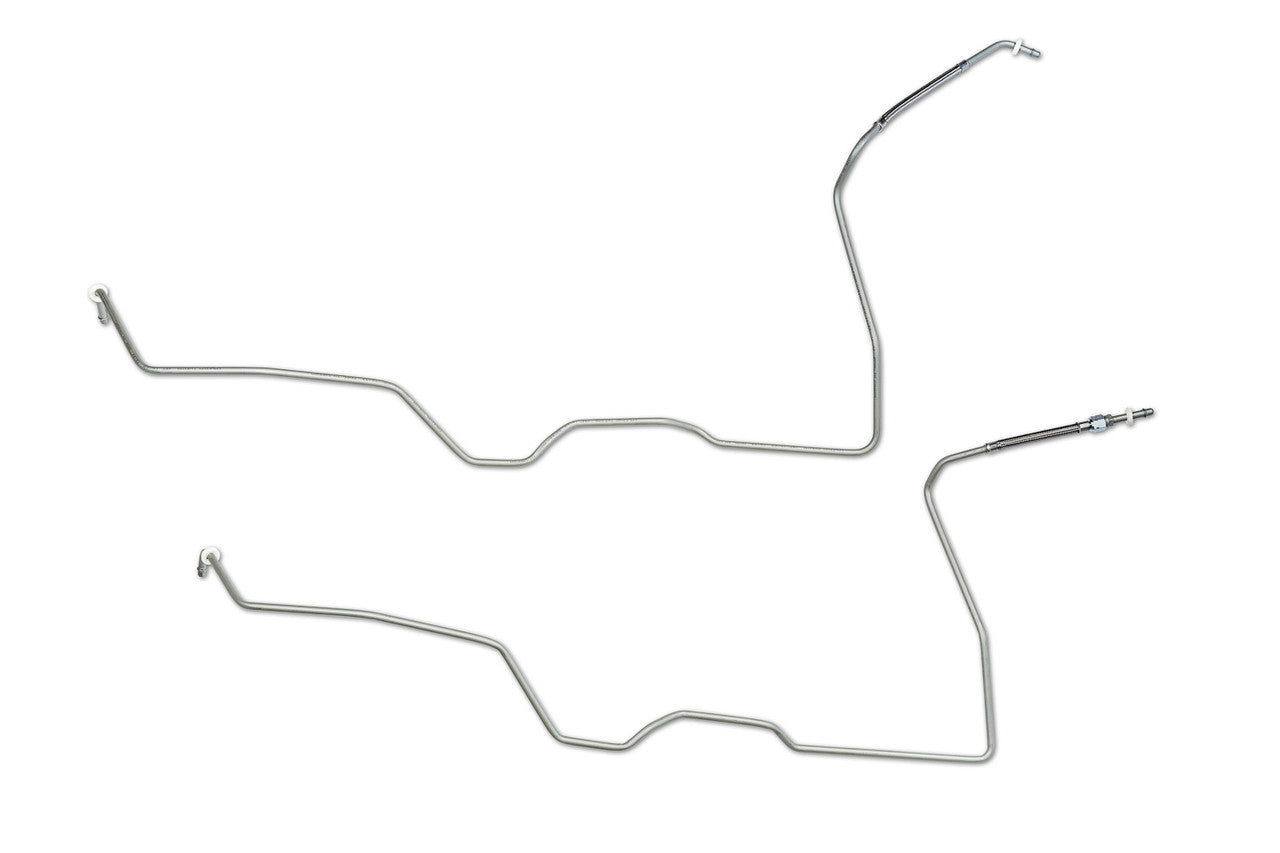

Included in Set: 1 Upper Outlet Line 3/8", 1 Lower Inlet Line 3/8" (2 sections)

Tube Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 39" x 29" x 6"
