SALE:
Save $70.57
/
  • In stock, ready to ship
  • Inventory on the way

Delivery Time & Rates

Shipping calculated at checkout.

1987 Blazer Fuel Lines 2 Door 4WD 5.7L

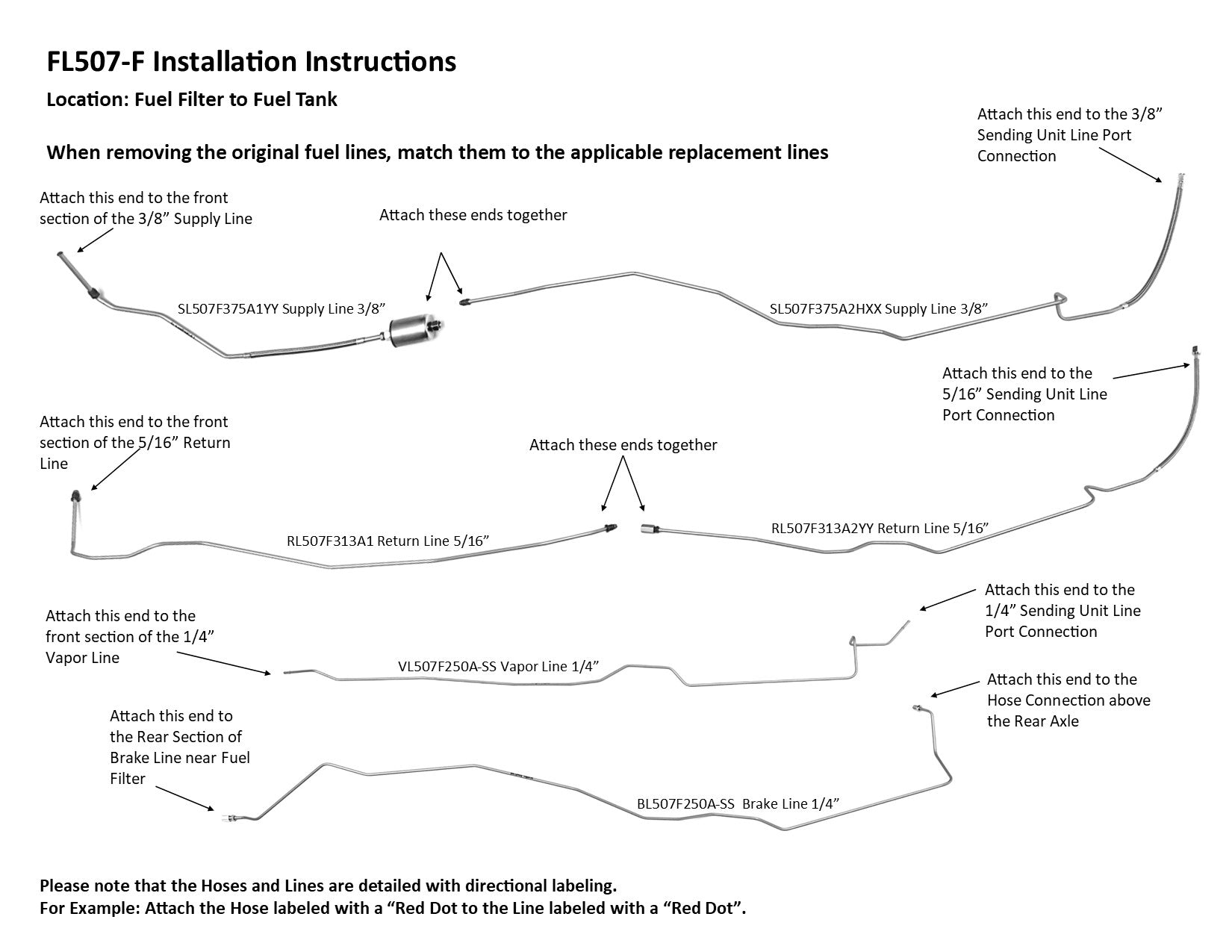

Please Note: Before installing your fuel line, shipping bends will need to be removed from the lines labeled BL507F250A-SS, VL507250A-SS and SL507F375A2HXX. See the video below on how to remove the shipping bend.

SKU: FL507-F1A
Box Dimensions 57" x 11" x 7"

Fuel Filter to Fuel Tank

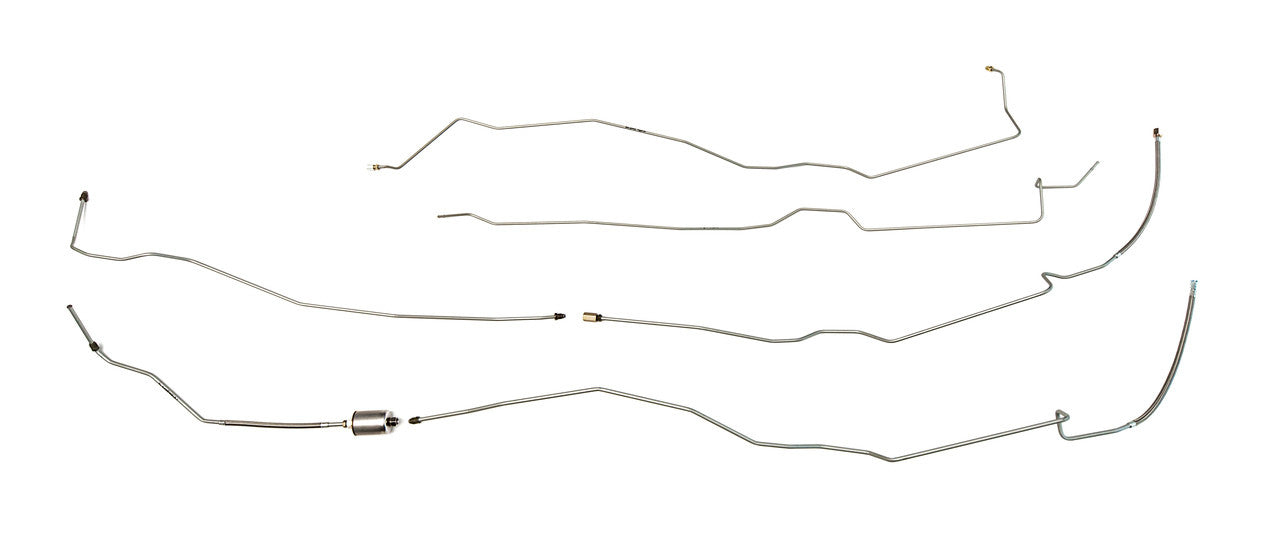

1 supply line 3/8", 1 return line 5/16", 1 vapor line 1/4", 1 brake line 1/4", hoses to sending unit connection, 1 fuel filter, 2 unions

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

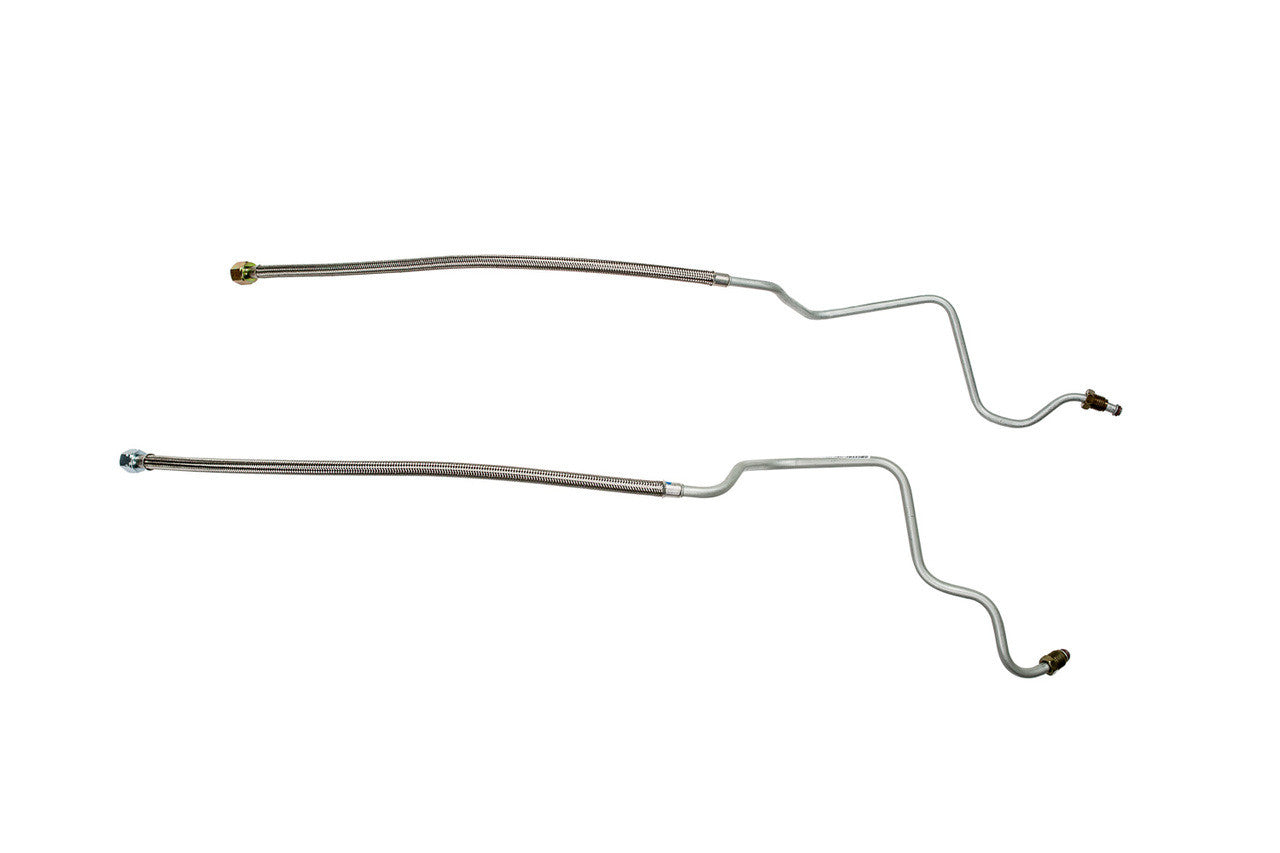

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
