Chevy Avalanche Brake Line Set 2004 2500 8.1L BLC-184-SS1B Stainless Steel
Chevy Avalanche Brake Line Set 2004 2500 8.1L BLC-184-SS1B Stainless Steel
Delivery Time & Rates
Choose from 2004 Avalanche 2500 brake lines to fit your Chevrolet without a problem...

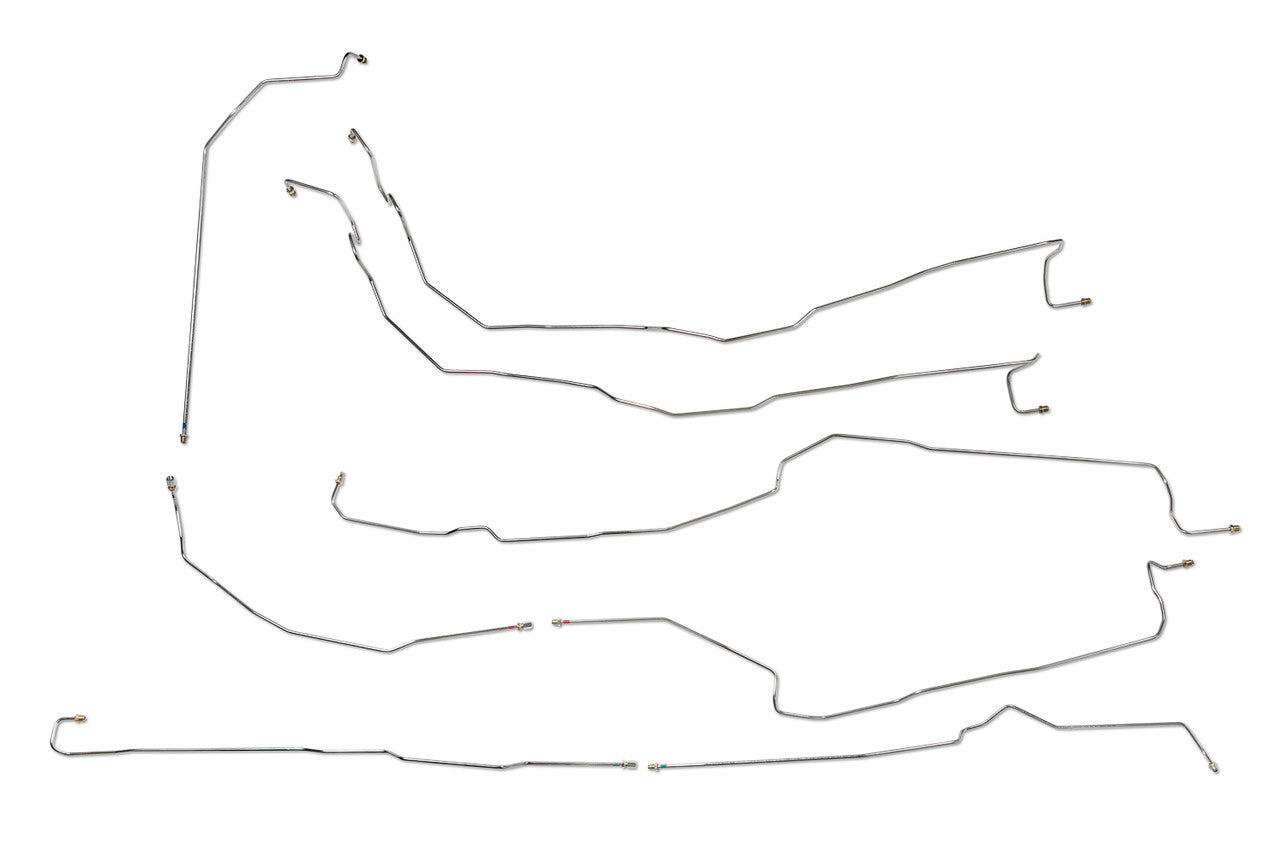

Brake Line Set Stainless Steel Chevy Avalanche 2500 exc. Rear Axle Set and Hoses for 8.1L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC113-01-SS, BLC113-02-SS and BLC113-03-SS. See the video below on how to remove the shipping bend

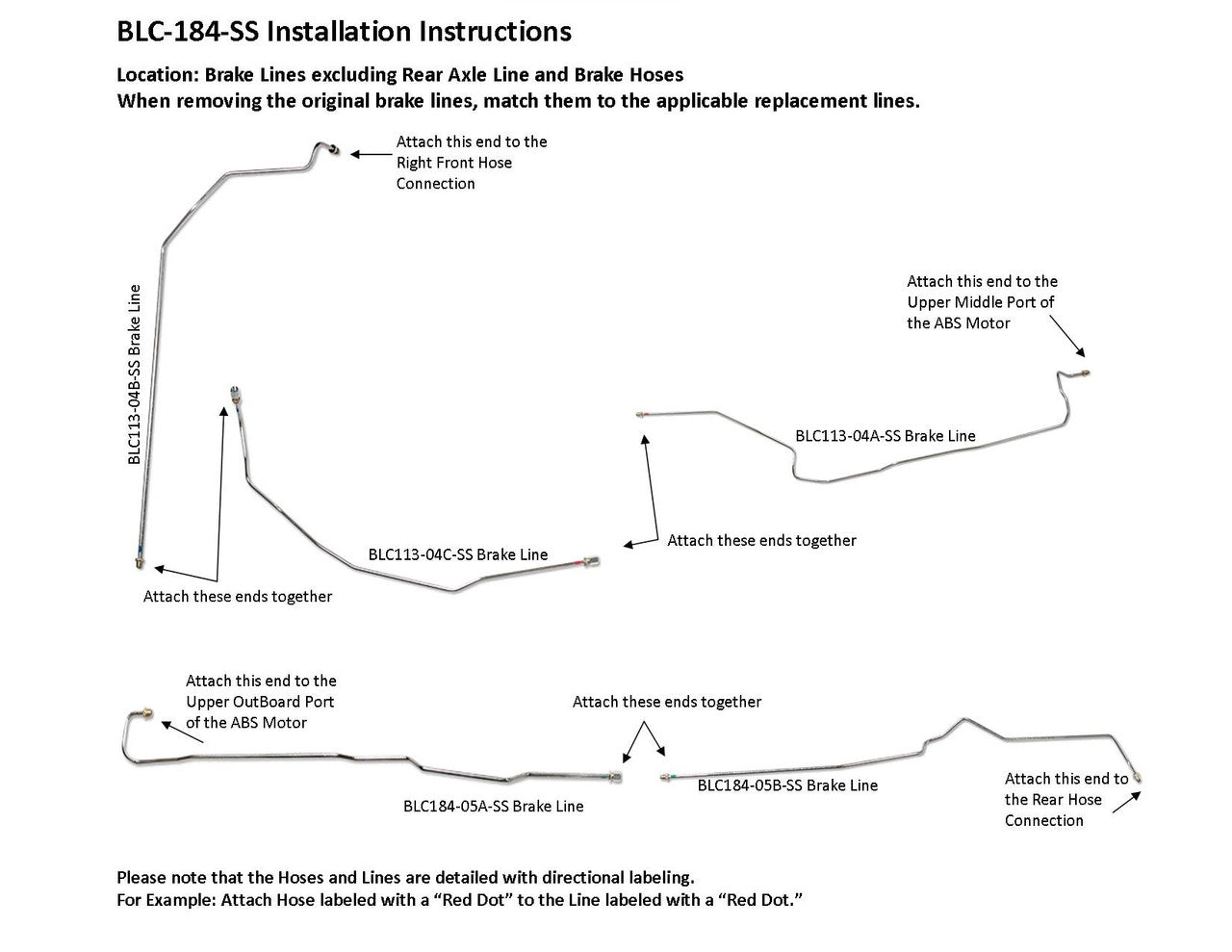

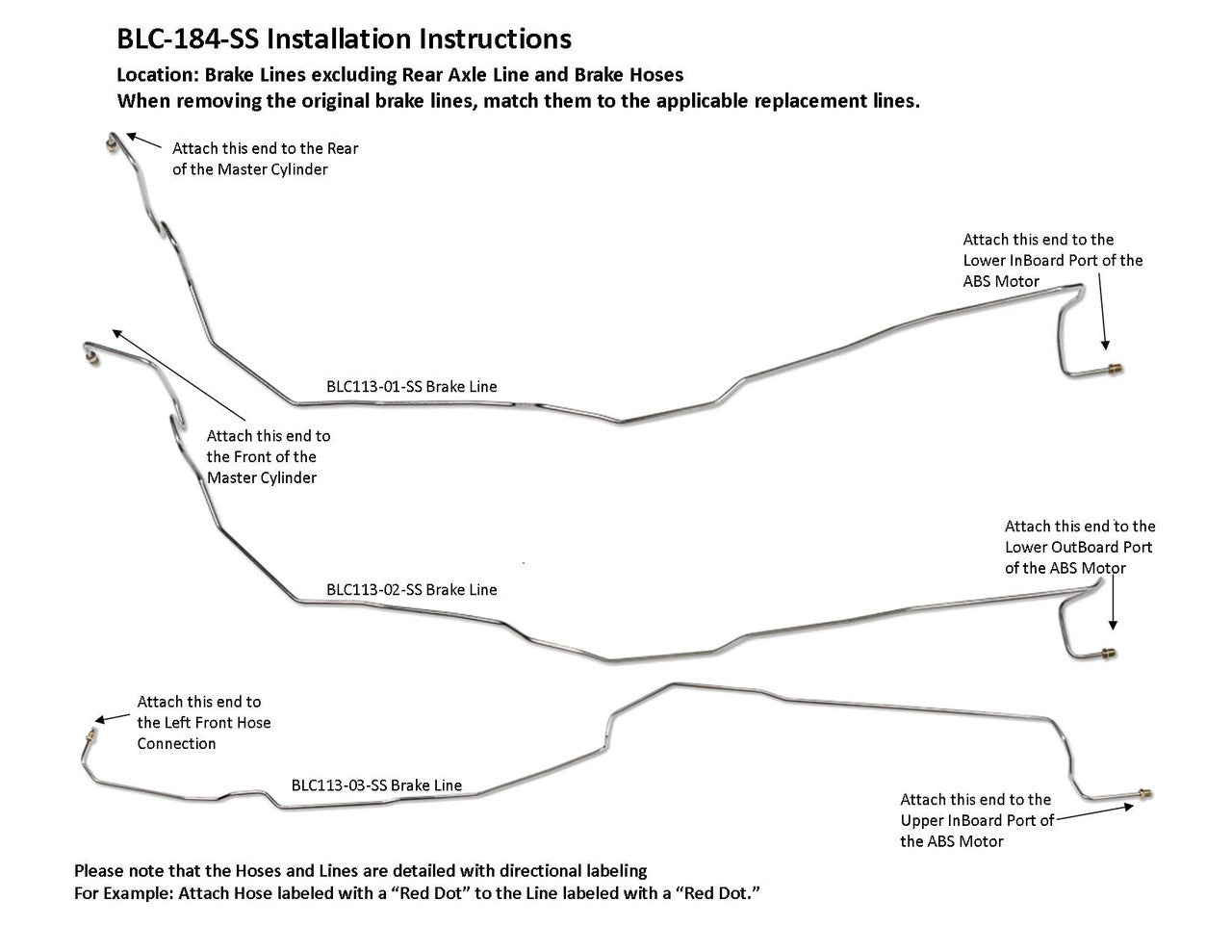

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Lower Outboard Port of ABS Module, 1 Left Front Line from Upper Inboard Port of ABS Motor to Left Front Wheel Hose Connection, 1 Right Front Line from Upper Middle Port of ABS Motor to the Right Front Wheel Connection (3 easy to install sections), 1 Rear Line from Rear Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections), excludes Rear Axle Line

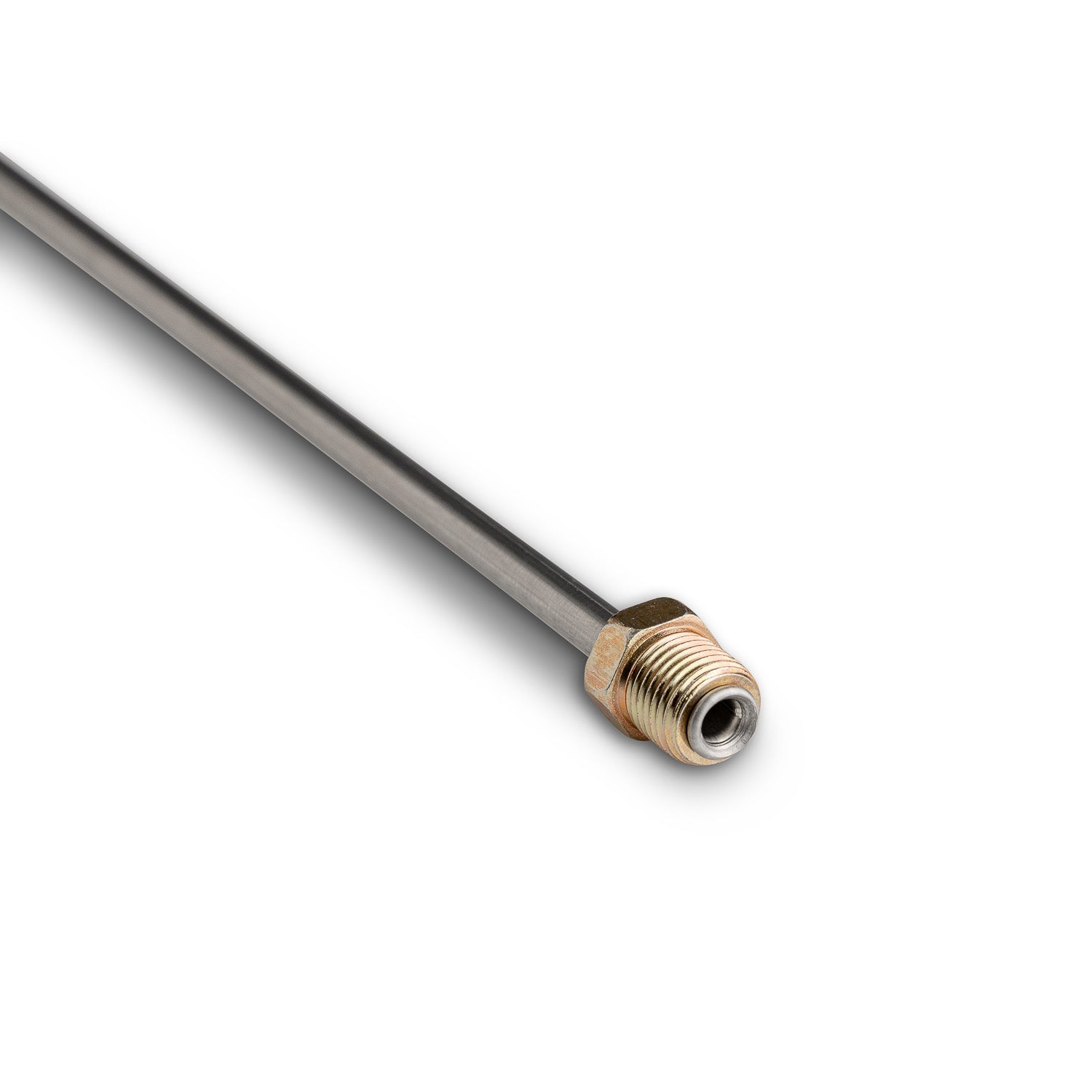

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
