Cadillac Seville Fuel Line Set 1998 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2A
w/Onboard Vapor Recovery
Cadillac Seville Fuel Line Set 1998 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2A
w/Onboard Vapor Recovery
Delivery Time & Rates
Shop LinesToGo for 1998 Cadillac Seville fuel lines.
Fuel Line Set 98 Cadillac Seville 4.6L 4 Door w/ Onboard Vapor Recovery
Please Note: Before installing your fuel line, shipping bends will need to be removed from the lines labeled SA259B313CB and SA259B313BB. See the video below on how to remove the shipping bend.
Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.
Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.
Repair Kit (Connection at Fuel Lines): This is
usually required as the original fuel lines are being disconnected from the nylon during install.

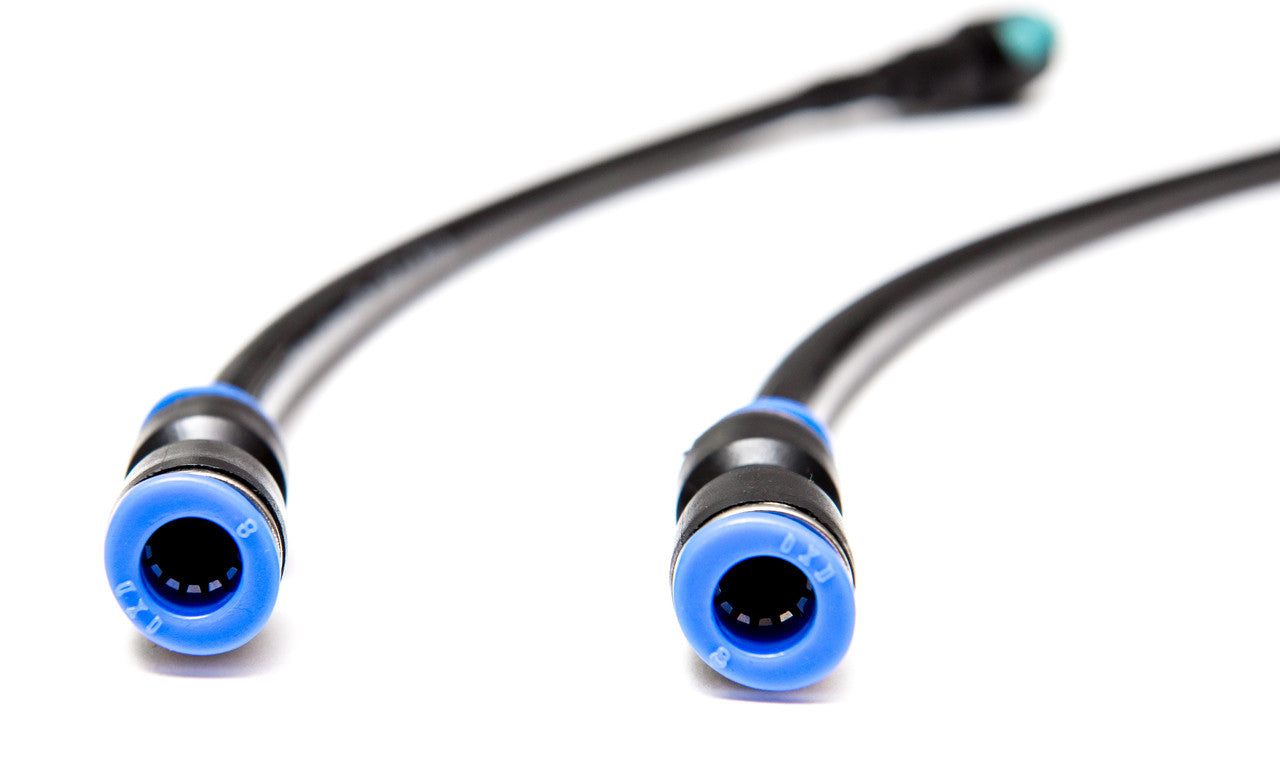

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors
- Weight: 7

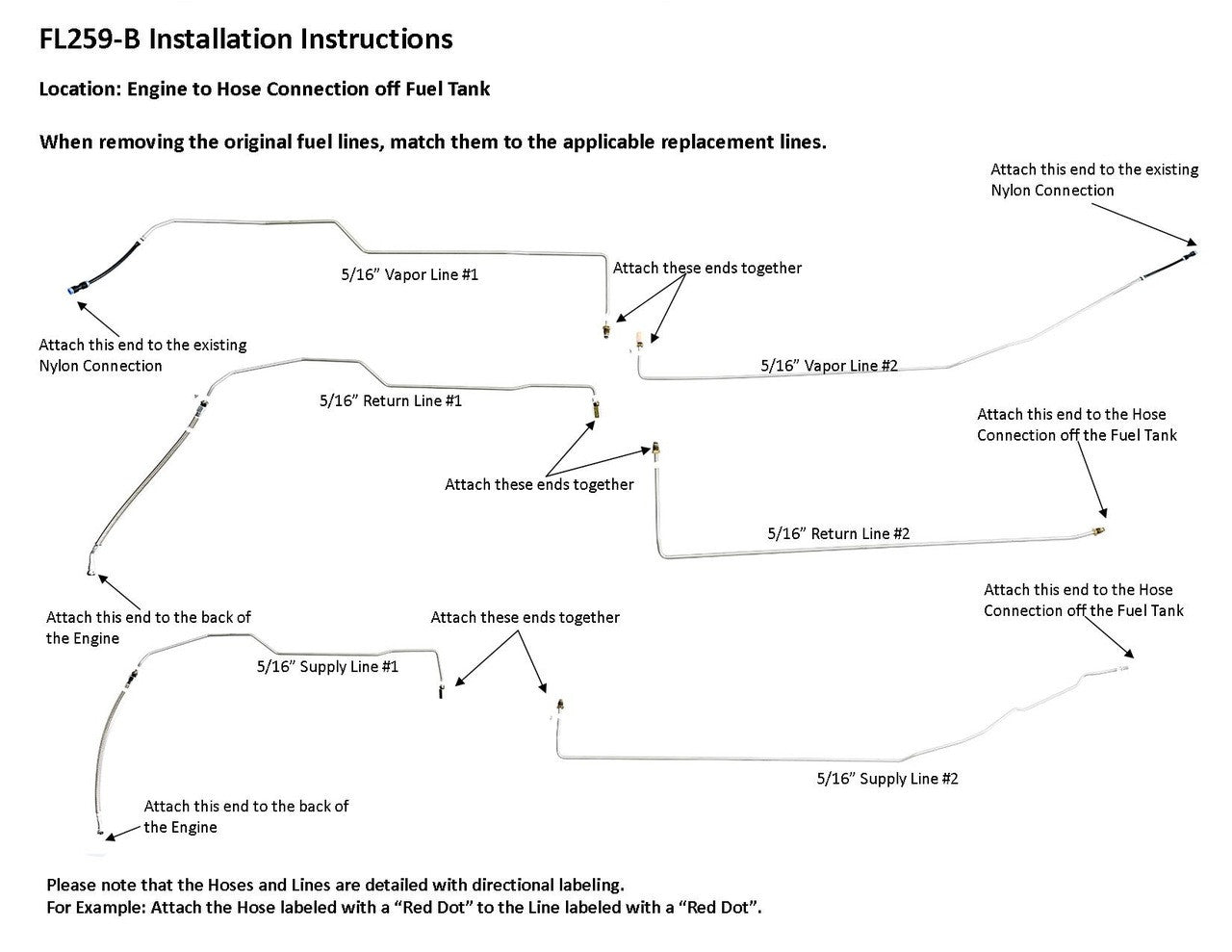

- Installation Instructions

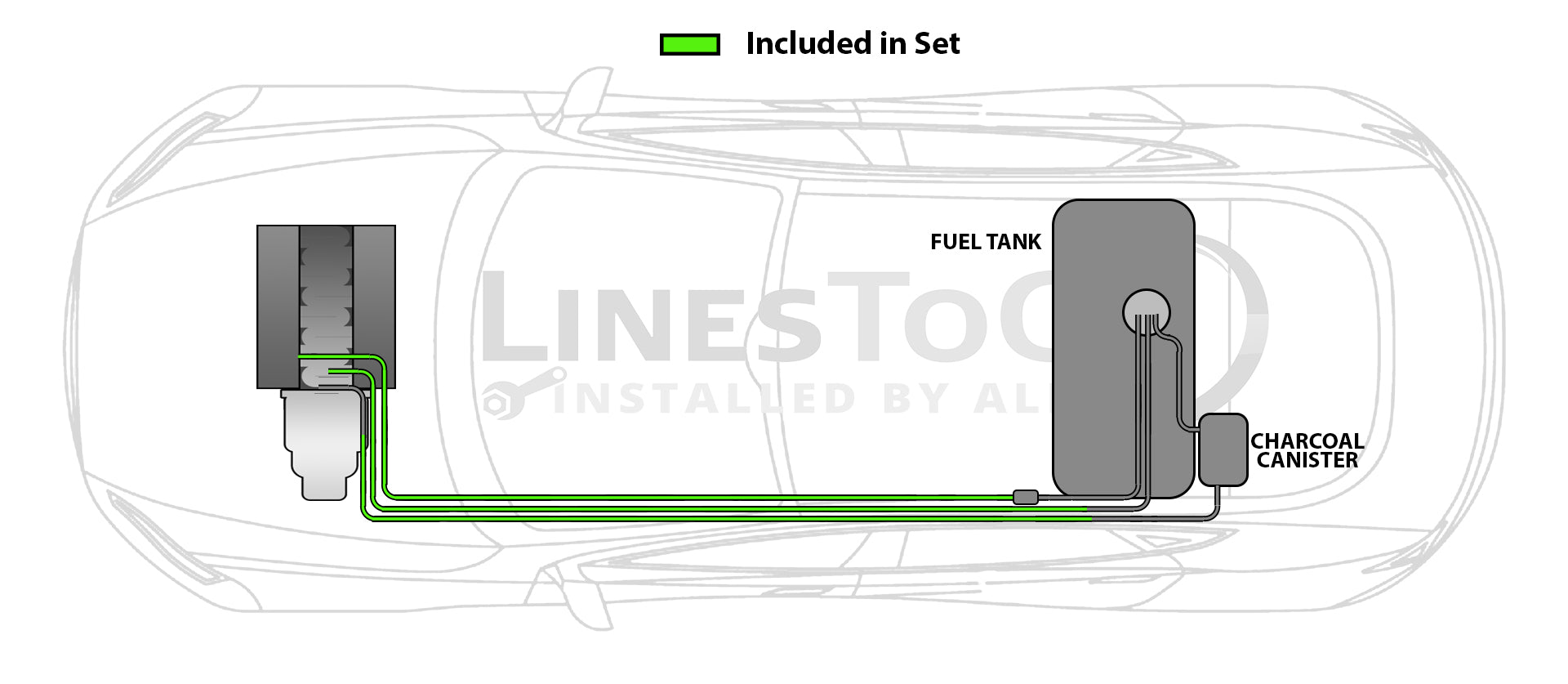

Engine to Hose Connection off Fuel Tank

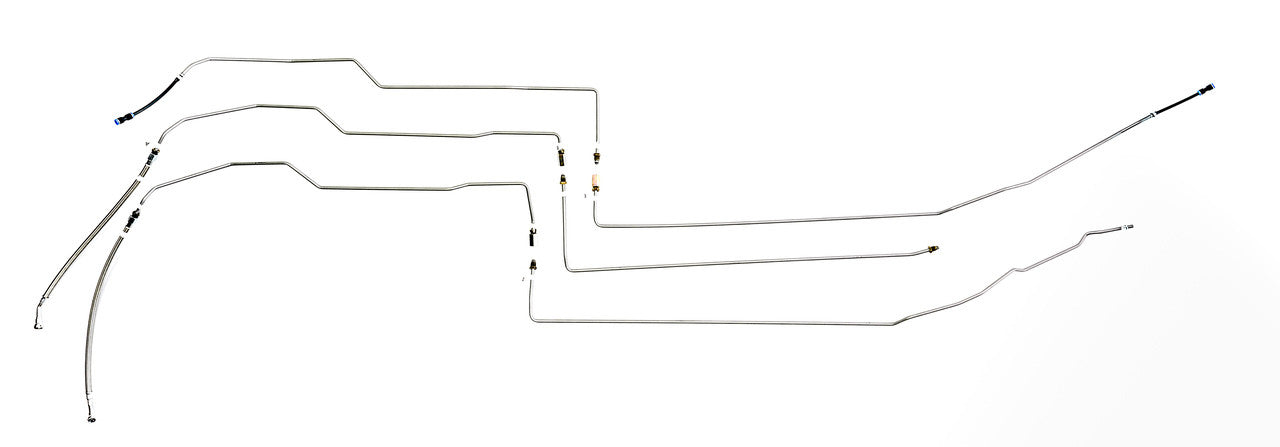

1 supply line 5/16" (in two easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line 5/16"(in 2 easy to install sections), hoses to sending unit connection, 1 nylon line with union
Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

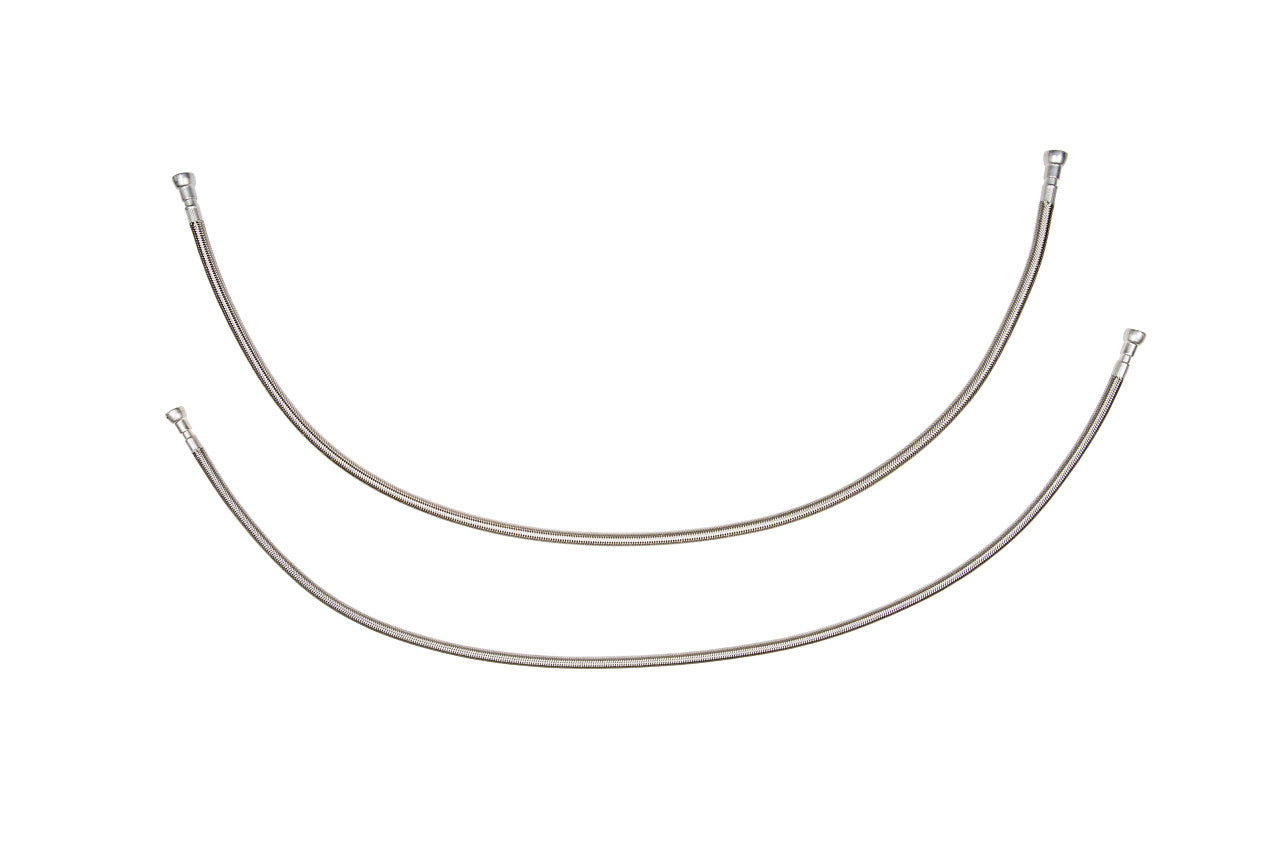

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
