Shop LinesToGo for 2005 Cadillac Escalade fuel lines

Fuel Line Set 05 C/K 1500 Escalade EXT 5.3L Non Flex Fuel

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kit

6093-01 – includes 1 - 3/8" Nylon Line, 1 Union, 1 90° Quick Connector

SKU: FL149-E3F
Box Dimensions 39" x 11" x 7"
Product Warranty 1 Year

Engine to Hose Connection Off Fuel Tank

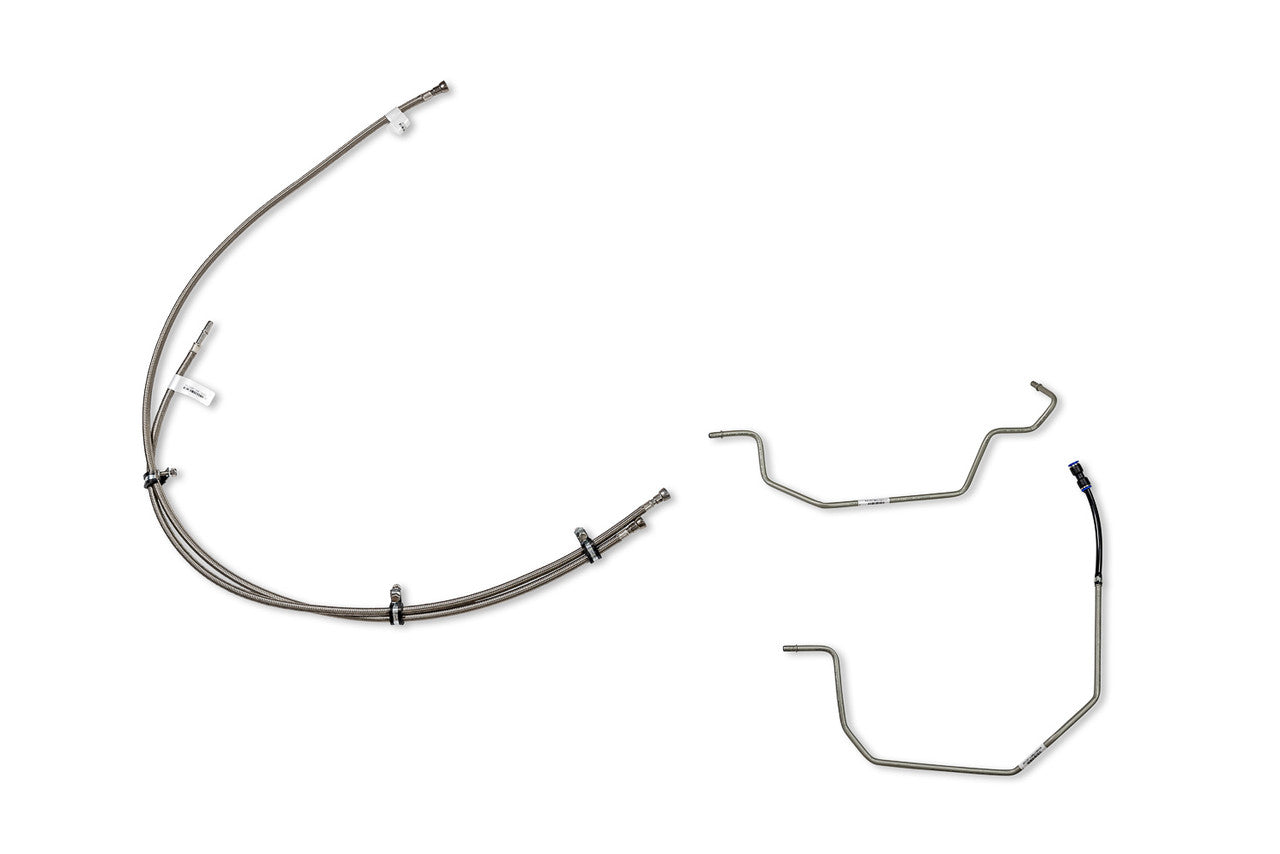

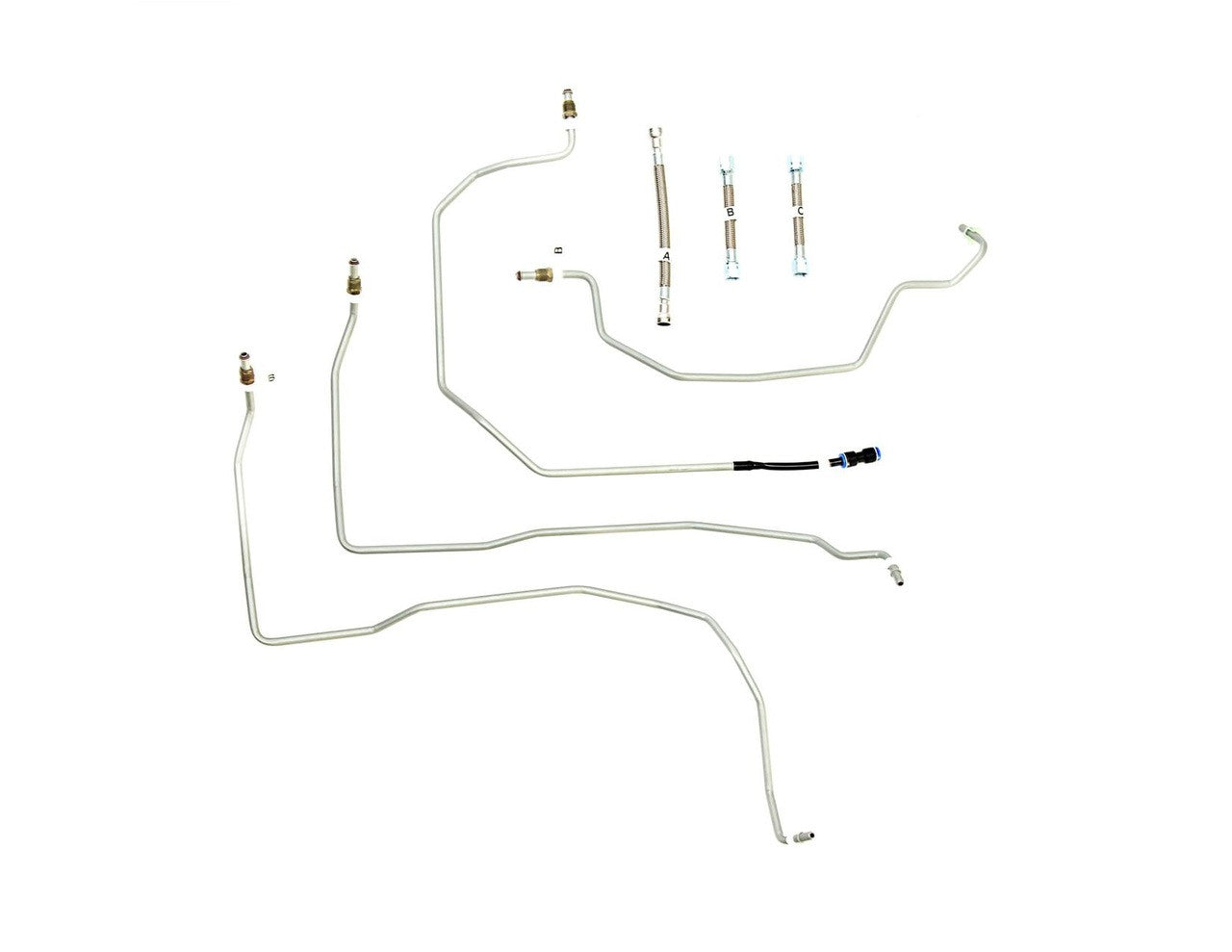

1 supply line 3/8" ( in 2 easy to install sections), 1 vapor line 3/8" ( in 2 easy to install sections), hose to engine connection, hoses to join rear and front section, nylon line with union

15103783, 15275274

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
