Cadillac Escalade EXT Fuel Line Set 2003 C/K2500 Single Tank w/o Auxiliary Rear Mount Tank 6.0L Gas FL149-T4B

Single Tank w/o Auxiliary Rear Mount Tank

Cadillac Escalade EXT Fuel Line Set 2003 C/K2500 Single Tank w/o Auxiliary Rear Mount Tank 6.0L Gas FL149-T4B
Cadillac Escalade EXT Fuel Line Set 2003 C/K2500 Single Tank w/o Auxiliary Rear Mount Tank 6.0L Gas FL149-T4B
Cadillac Escalade EXT Fuel Line Set 2003 C/K2500 Single Tank w/o Auxiliary Rear Mount Tank 6.0L Gas FL149-T4B
Cadillac Escalade EXT Fuel Line Set 2003 C/K2500 Single Tank w/o Auxiliary Rear Mount Tank 6.0L Gas FL149-T4B
Cadillac Escalade EXT Fuel Line Set 2003 C/K2500 Single Tank w/o Auxiliary Rear Mount Tank 6.0L Gas FL149-T4B

Cadillac Escalade EXT Fuel Line Set 2003 C/K2500 Single Tank w/o Auxiliary Rear Mount Tank 6.0L Gas FL149-T4B

Single Tank w/o Auxiliary Rear Mount Tank

MSRP: from
SALE: from
Save $106.89
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL149-T4B
  • Weight: 7

Shop LinesToGo for 2003 Cadillac Escalade fuel lines.

Fuel Line Set 2003 Escalade EXT 1500/2500 2WD & AWD Single Tank w/o Auxiliary Rear Mount Tank 6.0L Engine

Location: Engine to Front Fuel Tank, Front Fuel Tank

OEM Part Number: 15769726

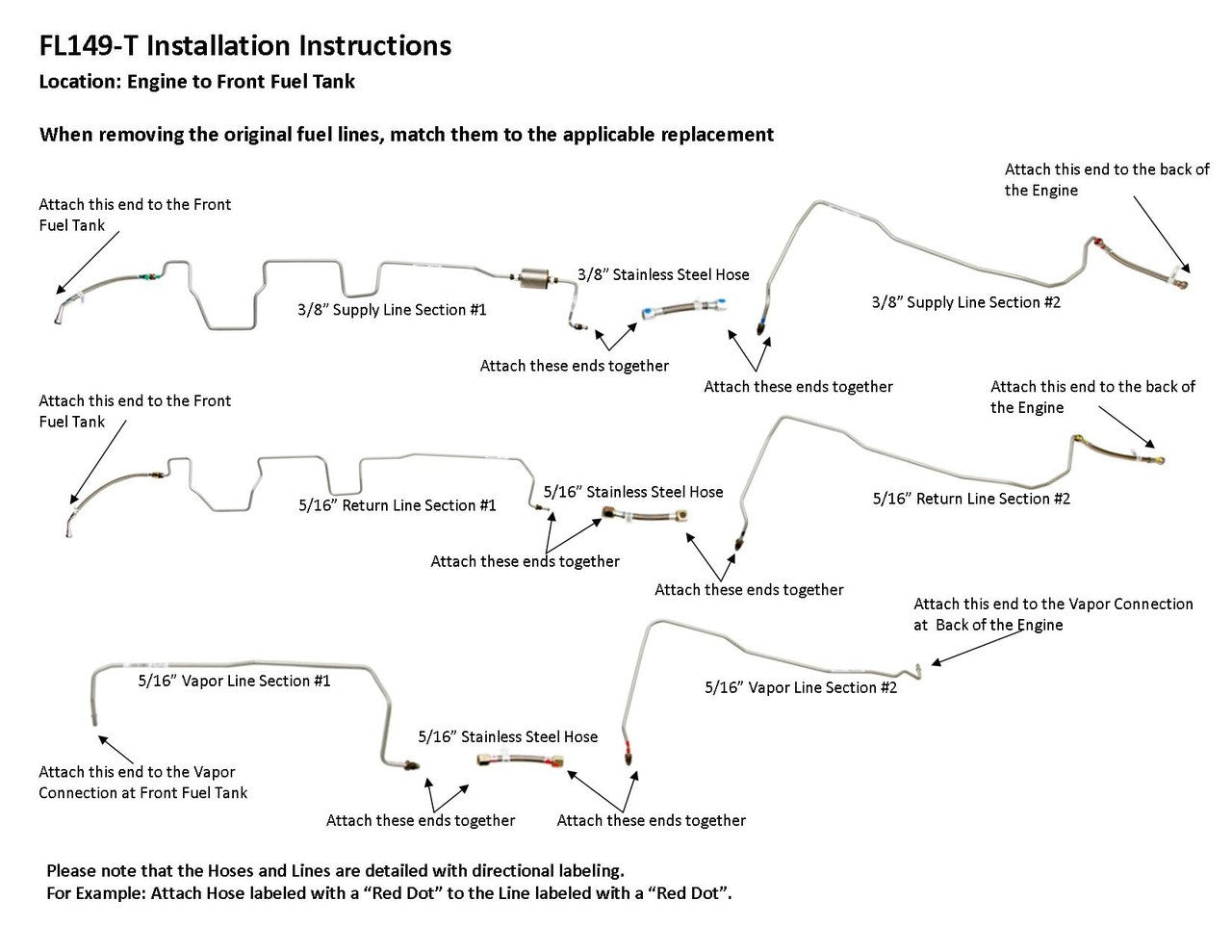

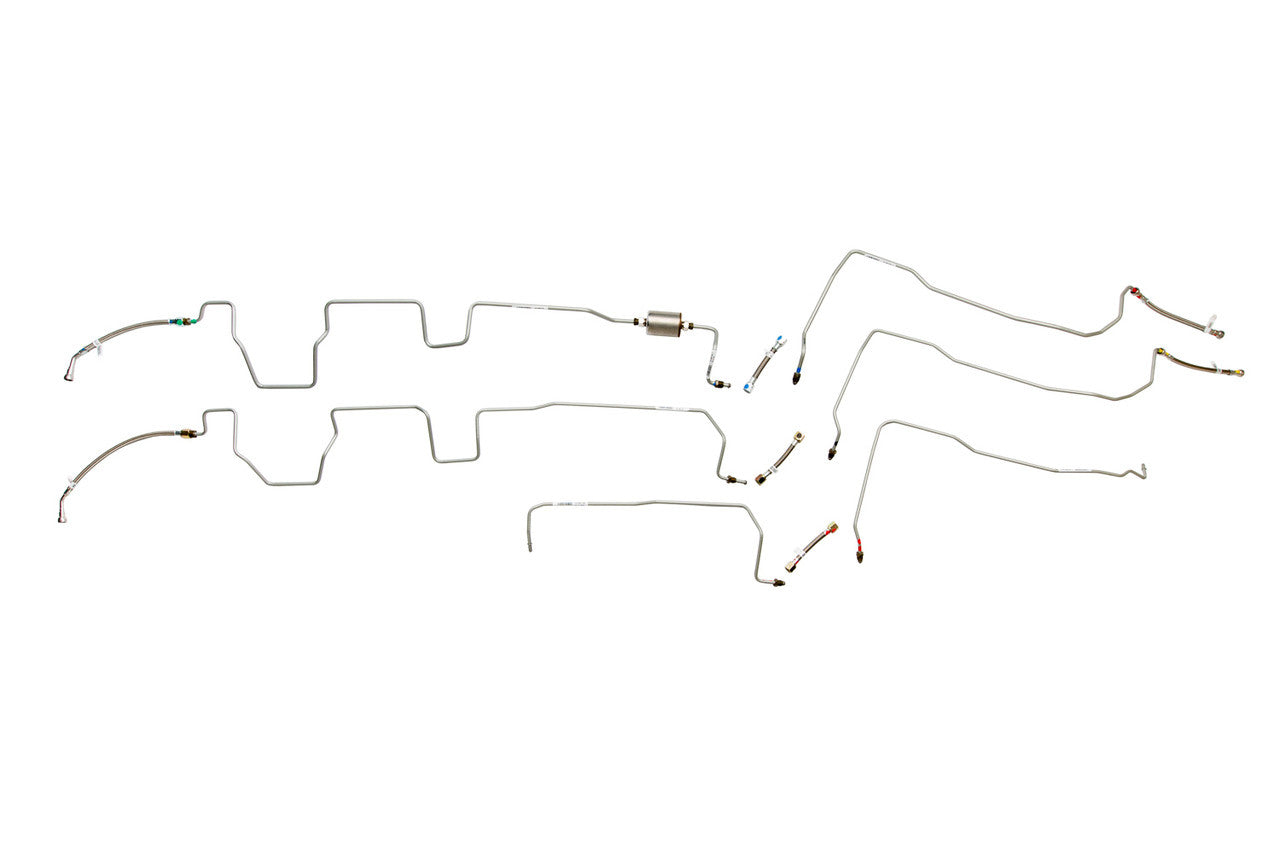

Included in Set:  1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 5/16" ( in 2 easy to install sections), hoses to join rear and front sections, hoses to engine connection, hoses to sending unit connection, 1 fuel filter

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 57" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
