Name: Cadillac Escalade EXT Fuel Line Set 2003 2500 6.0L SS149-R1B Stainless Steel
Brand: Lines - To - Go
SKU: SS149-R1B
Price: 486.0 USD
Availability: InStock

Year Make & Model

Cadillac Escalade EXT Fuel Line Set 2003 2500 6.0L SS149-R1B Stainless Steel

Price

SALE:

Save $121.50

Delivery Time & Rates

Shop LinesToGo for 2003 Cadillac Escalade EXT 2500 fuel lines.

Stainless Steel Fuel Line Set 2003 Cadillac Escalade EXT 2500 2WD & AWD for 6.0L Gas engines.

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.

3068-01 includes 2 Nylon Lines 5/16", 2 Unions 5/16", 2 Quick Connectors 5/16" 180 degree

3069-01 includes 2 nylon lines 3/8" & 5/16", 2 unions, 2 quick connectors 3/8" & 5/16" 180 degree

3071-01 includes 2 Nylon Lines: 1 - 3/8" & 1 - 5/16", 2 Unions, 2 Quick Connectors 1- 3/8 & 1- 5/16" 90 degree

6093-01 includes1 nylon line 3/8", 1 union, 1 quick connector 3/8" 90 degree

Repair Kit (Connection at Sending Unit): This may only be required if you are replacing the sending unit.

3068-01 includes 2 Nylon Lines 5/16", 2 Unions 5/16", 2 Quick Connectors 5/16" 180 degree

3069-01 includes 2 nylon lines 3/8" & 5/16", 2 unions, 2 quick connectors 3/8" & 5/16" 180 degree

SKU: SS149-R1B

Weight: 10

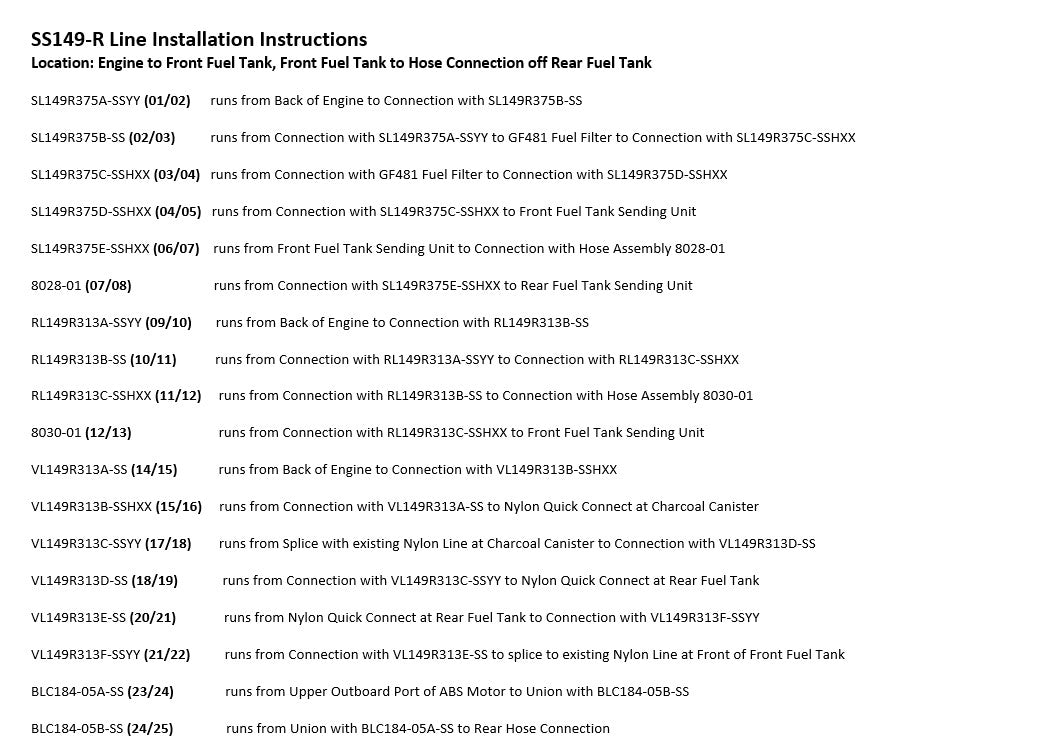

Installation Instructions

Box Dimensions 60" x 12" x 12"

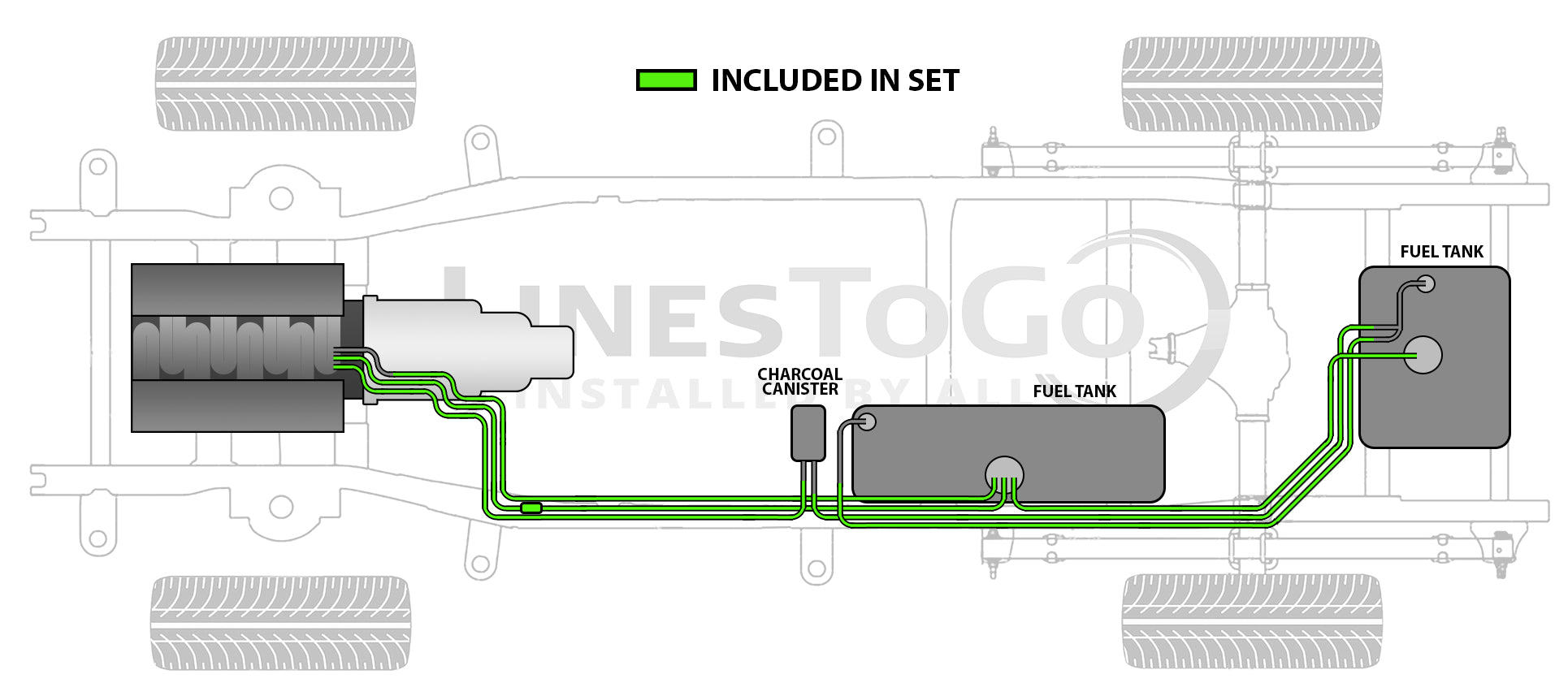

Engine to Front Fuel Tank, Front Fuel Tank to Hose Connection off Rear Fuel Tank

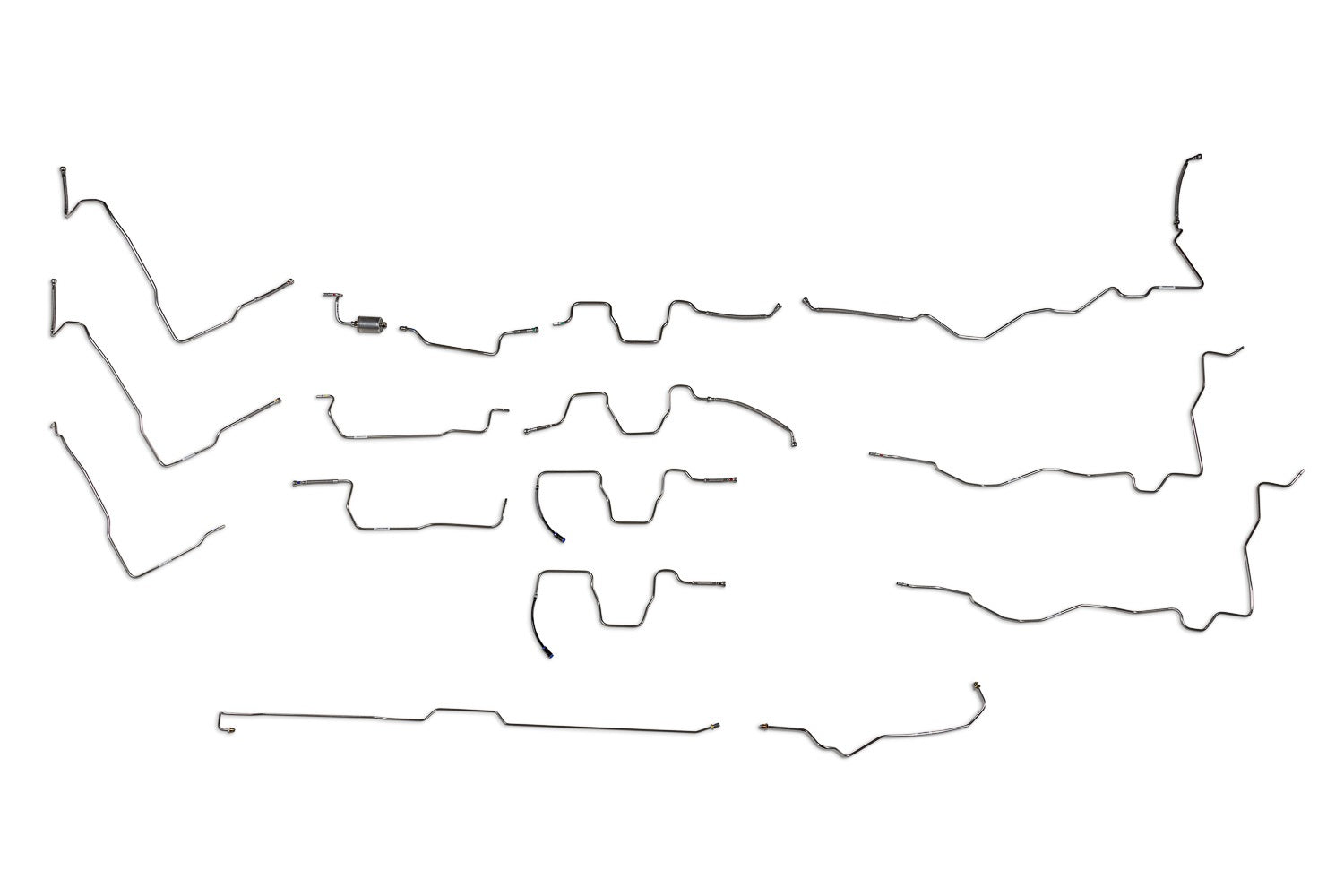

1 Supply Line 3/8" (in 2 easy to install sections), 1 Supply Line 3/8" (in 2 easy to install sections), 1 Supply Line 3/8", 1 Return Line 5/16" (in 2 easy to install sections), 1 Return Line 5/16", 1 Vapor Line 5/16" (in 2 easy to install sections), 1 Vapor Line 5/16" (in 2 easy to install sections), 1 Vapor Line 5/16" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 2 easy to install sections), Hoses to Engine Connection, Hoses to Join Rear, Intermediate, and Front Sections, Nylon Line, 1 Fuel Filter, 1 Union

15769726, 15195862

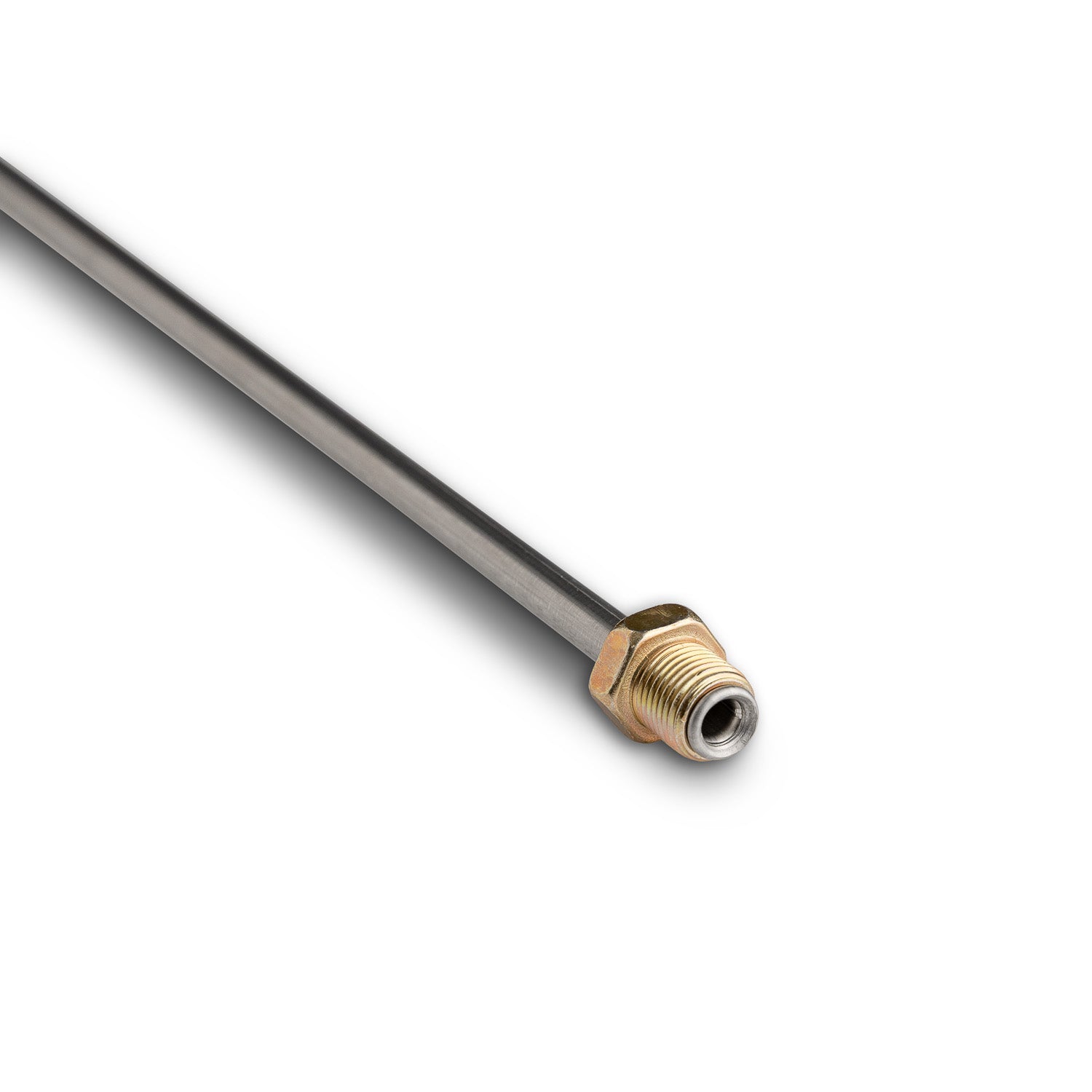

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

Hoses are made from Stainless Steel Braided Teflon with OE style fittings

Hoses are made from Nylon Line with OE style fittings
