Cadillac Escalade Brake Line Set 2006 1500 130" WB 5.3L BLC-136-SS1D Stainless Steel
w/o Active Brake Control
Cadillac Escalade Brake Line Set 2006 1500 130" WB 5.3L BLC-136-SS1D Stainless Steel
w/o Active Brake Control
Delivery Time & Rates
Choose from 2006 Escalade brake lines to fit your Cadillac without a problem...

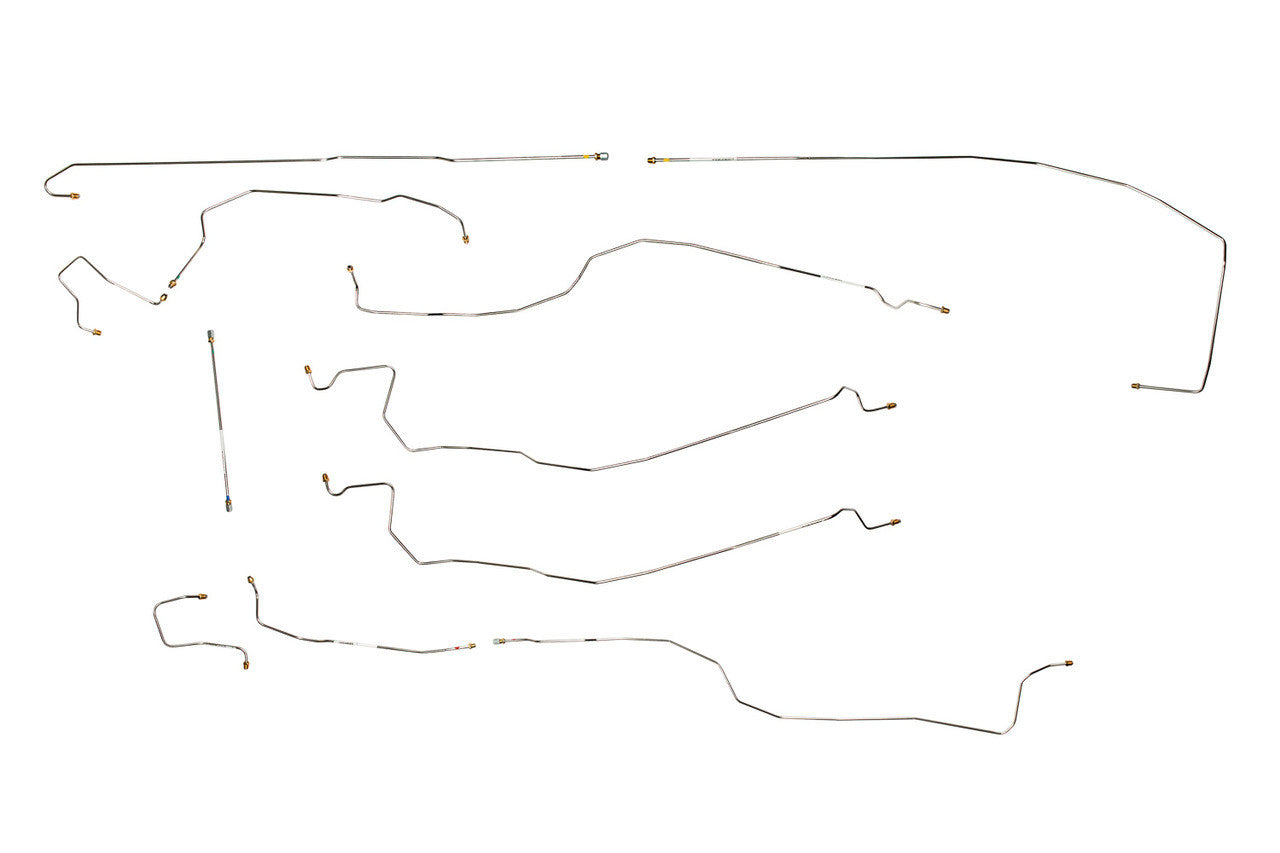

Brake Line Set Stainless Steel Cadillac Escalade 1500 130" WB w/o Active Brake Control for 5.3L engines

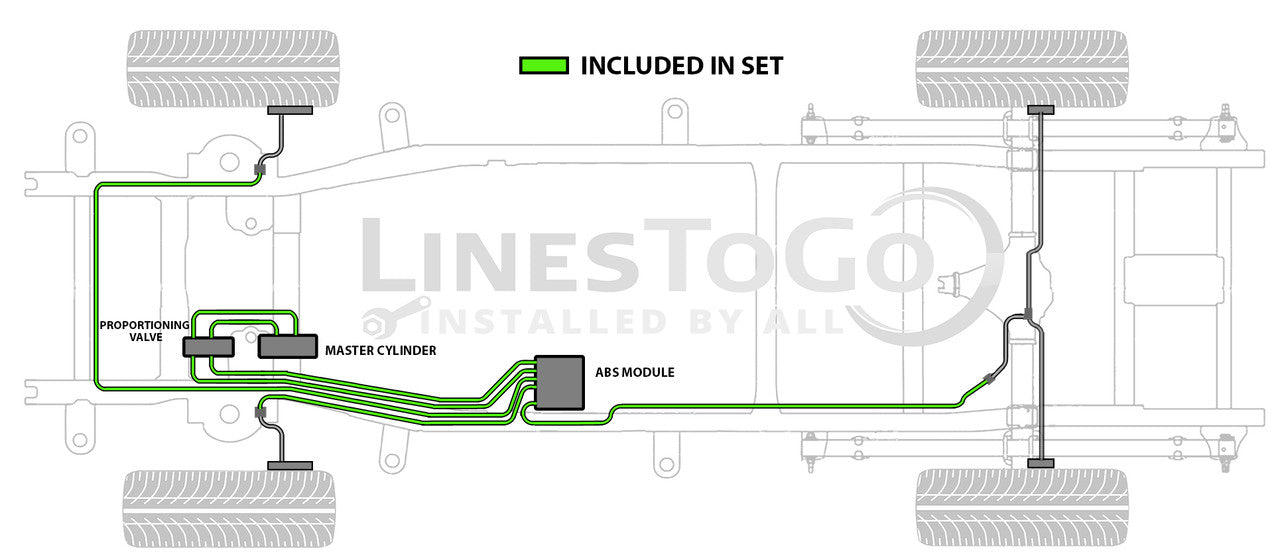

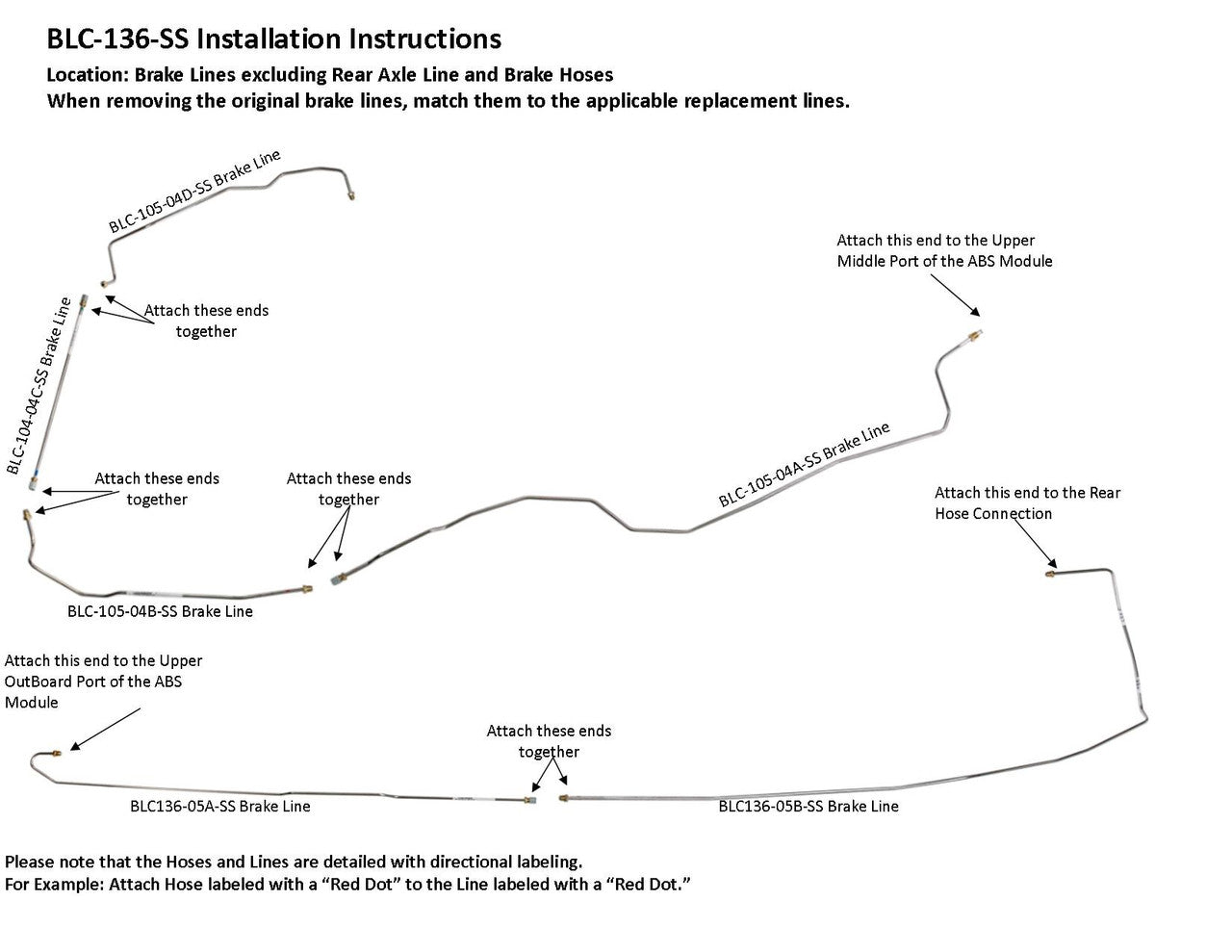

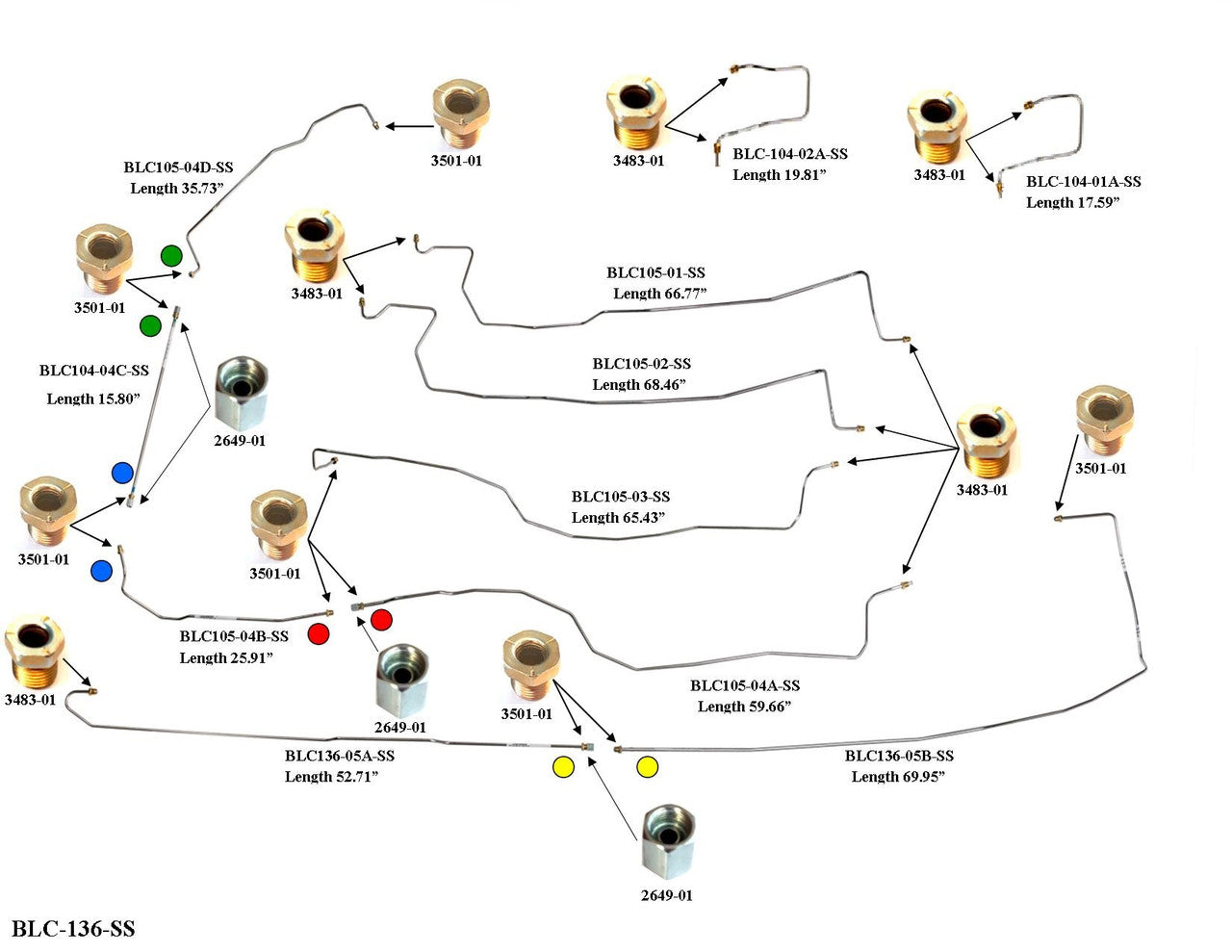

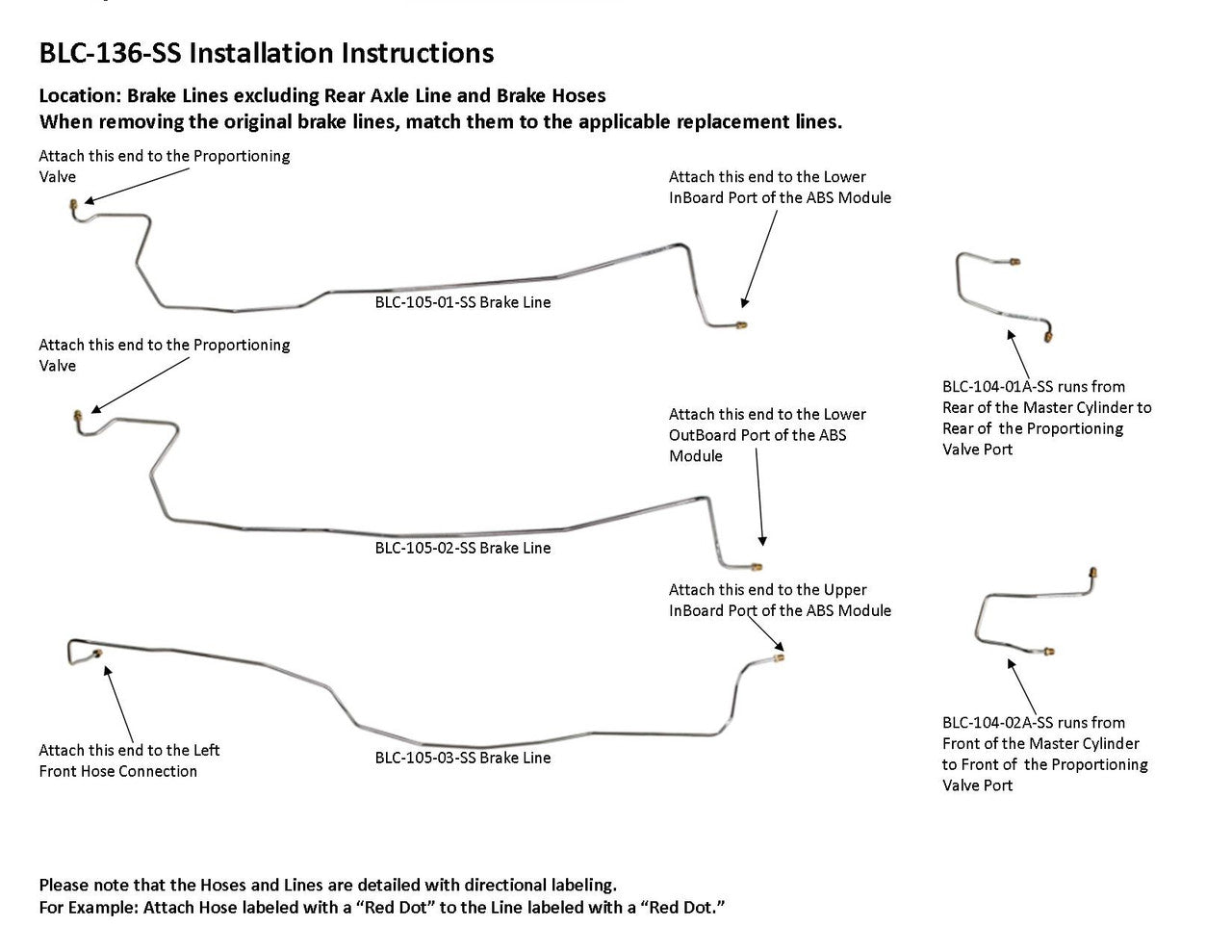

1 Master Cylinder Primary Line from Rear of Master Cylinder to Proportioning Valve, 1 Primary Line from Proportioning Valve to Lower Inboard Port of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Proportioning Valve, 1 Master Cylinder Secondary Line from Proportioning Valve to Lower Outboard Port of ABS Module, Left Front Line from Hose Connection to Upper Inboard Port of ABS, Right Front Line from Hose Connection to Upper Middle Port of ABS (4 easy to install sections), Rear Line from Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections)

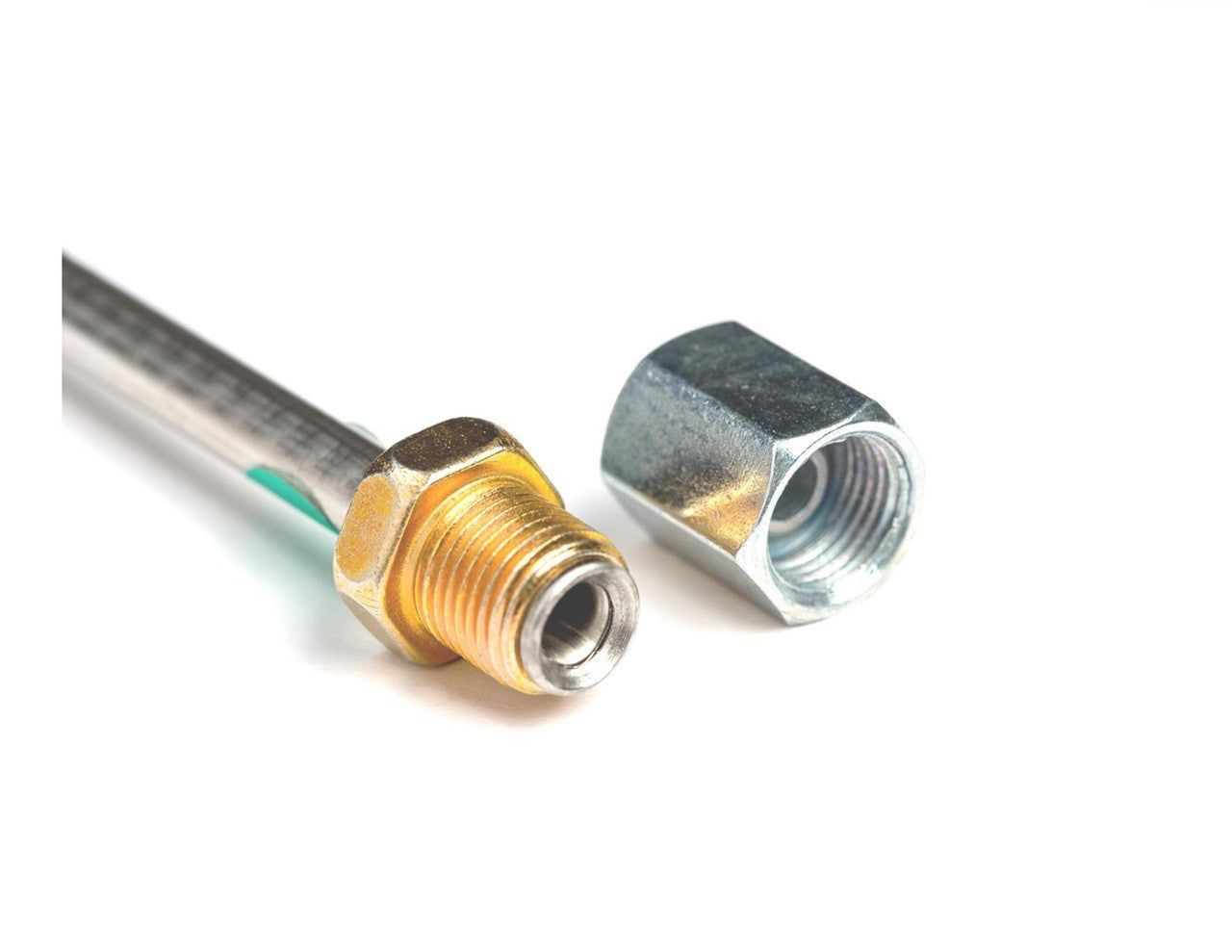

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
