Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A

w/4th and 5th VIN Digits KD, KE or KF

Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A
Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A
Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A
Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A
Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A
Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A
Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A
Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A

Cadillac DeVille Fuel Line Set 2000 4.6L FL251-C1A

w/4th and 5th VIN Digits KD, KE or KF

SALE: from
from
Save $48.24
from /

Delivery Time & Rates

Zip/Postal Code:
  • Weight: 6

Product Overview

Are you looking for 2000 DeVille fuel lines? We have what you need!

Fuel Line Set 00 Cadillac DeVille 4.6L engine w/ the 4th and 5th VIN digits KD, KE or KF

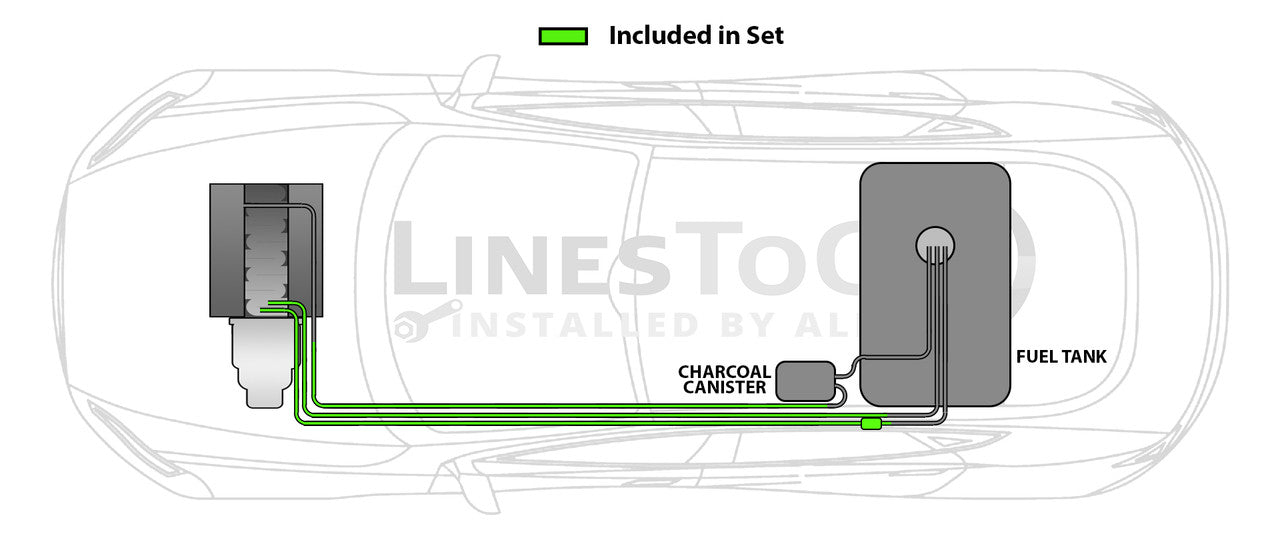

Location: Engine to Hose Connection off Fuel Tank

Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them.

Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines.

If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

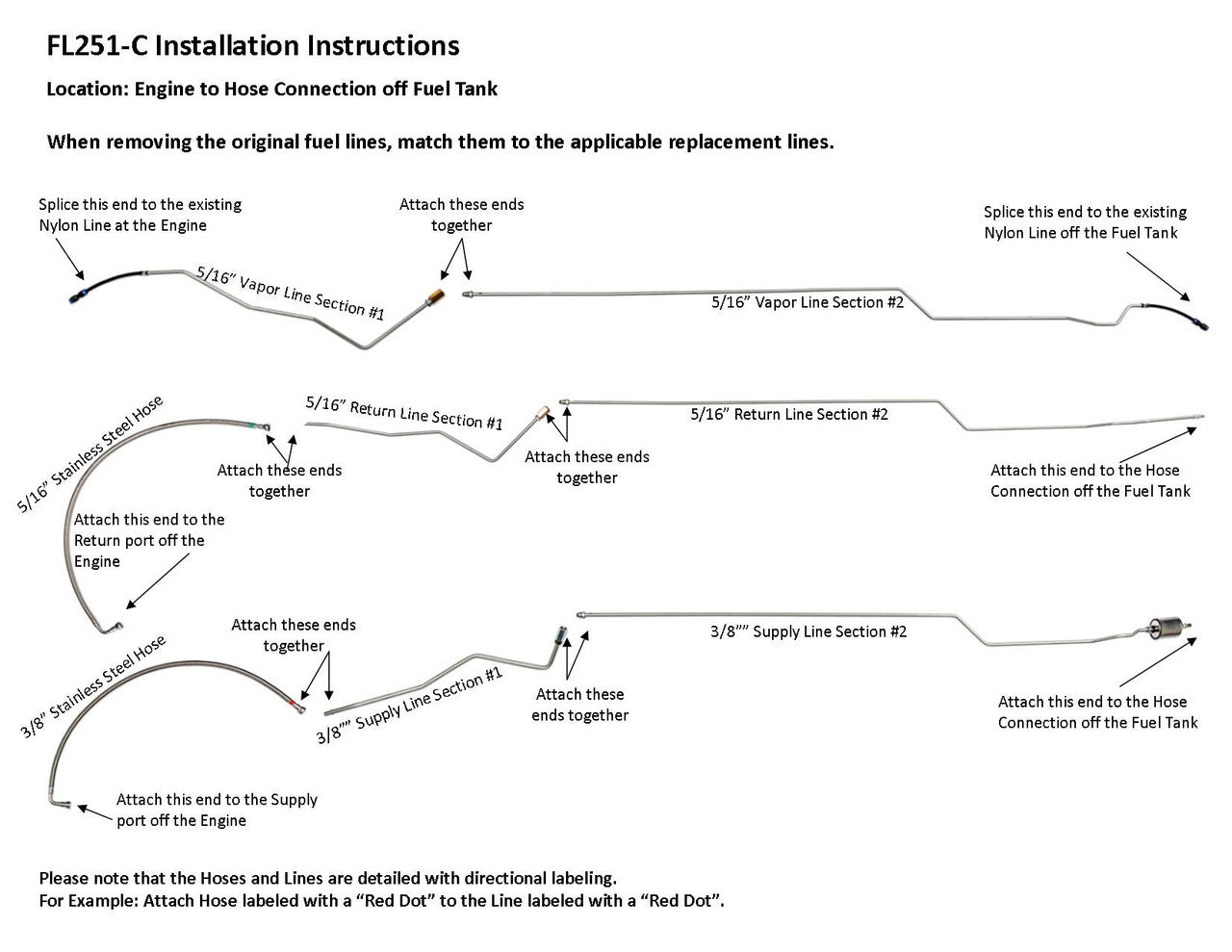

Nylon Installation Instructions:

Step 1


Cut the new nylon hose in the same position as the original nylon hose.

Step 2


Cut the original nylon hose in the same position as the new nylon hose.

Step 3


Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

OEM Part Number: 25704039, 25704040, 25704041

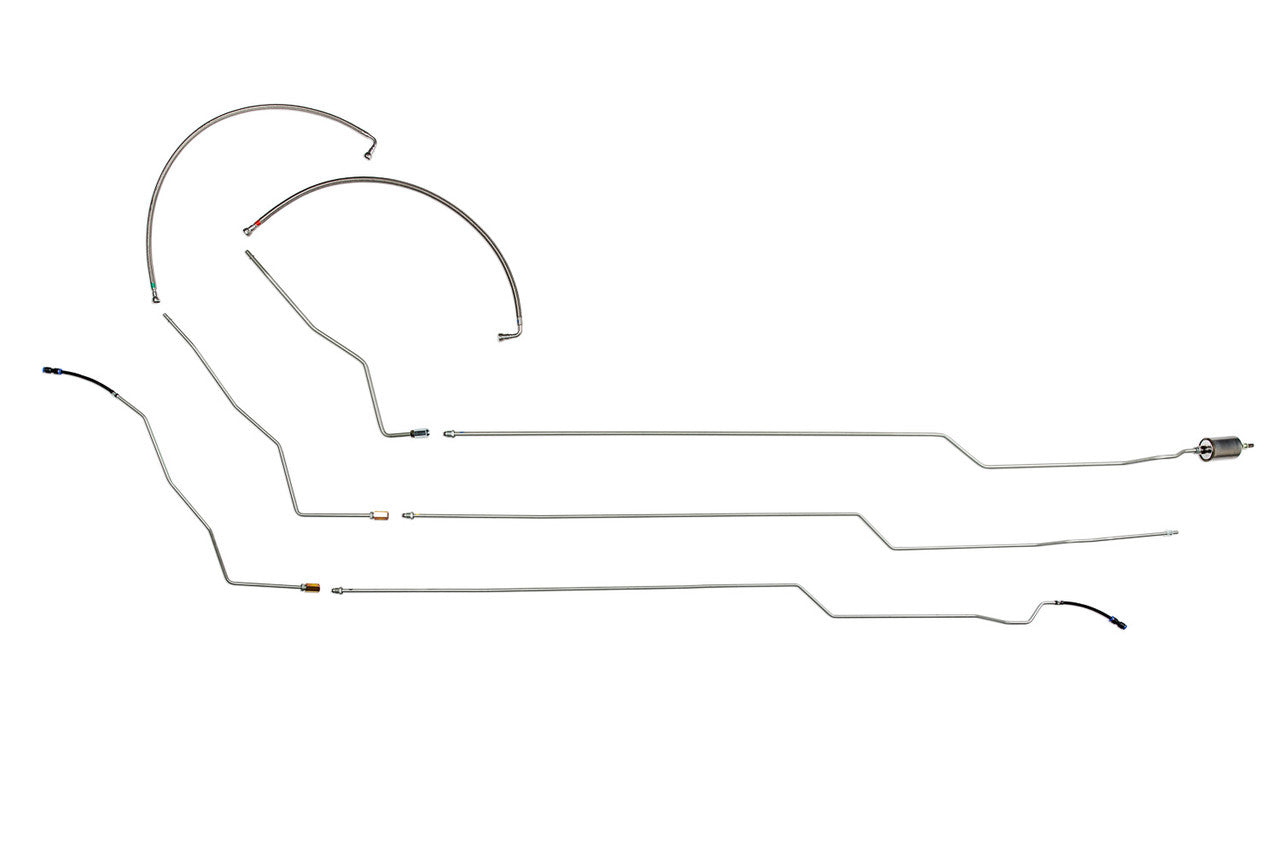

Included in Set: 1 supply line 3/8" (in 2 easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line (in 2 easy to install sections), hoses to engine connection, nylon line with unions, 3 unions, 1 fuel filter

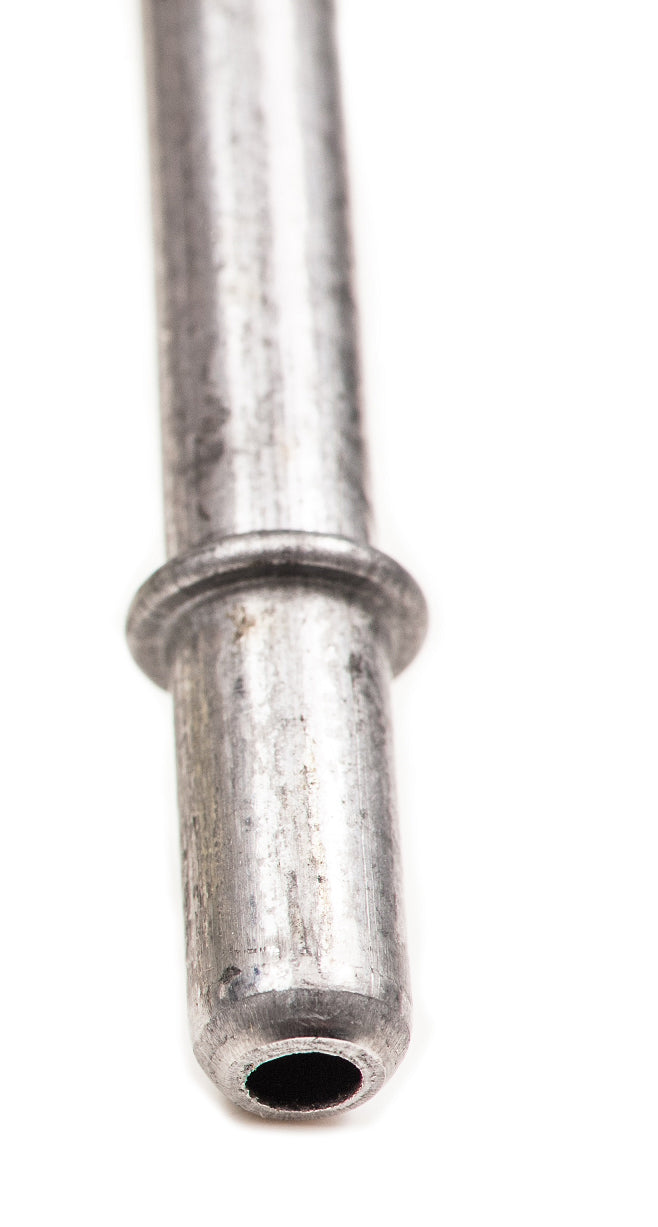

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

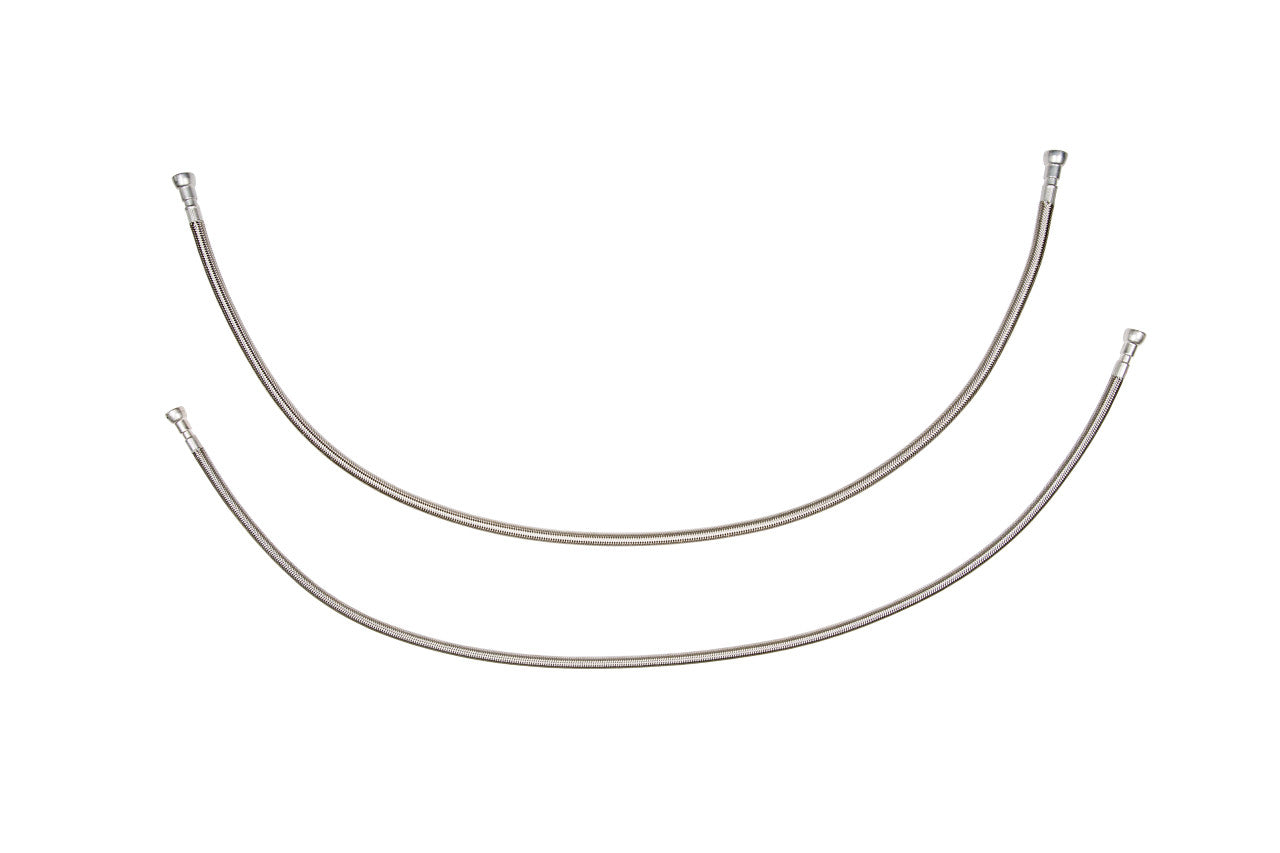

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 88" x 6" x 4"
