Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel

w/Active Brake Control (w/RPO Code JL4), w/ABS w/4 Wheel Disc Brakes (w/RPO Code JL9)

Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel
Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel
Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel
Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel
Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel
Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel
Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel
Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel
Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel

Buick Lucerne Brake Line Set 2010 3.9L BLB-104-SS1I Stainless Steel

w/Active Brake Control (w/RPO Code JL4), w/ABS w/4 Wheel Disc Brakes (w/RPO Code JL9)

SALE: from
from
Save $58.25
from /

Delivery Time & Rates

Shipping calculated at checkout.

Delivery Time & Rates

Install this prebent 2010 Buick Lucerne brake line set without a problem!

Stainless Steel Brake Line Set 2010 Buick Lucerne w/Active Brake Control (w/RPO Code JL4), w/ABS w/4 Wheel Disc Brakes (w/RPO Code JL9) for 3.9L engines.

Please Note: Before installing your brake line, shipping bends will need to be removed from the line labelled BLB104-06C-SS. See the video below on how to remove the shipping bend

SKU: BLB-104-SS1I
Box Dimensions 46" x 11" x 7"

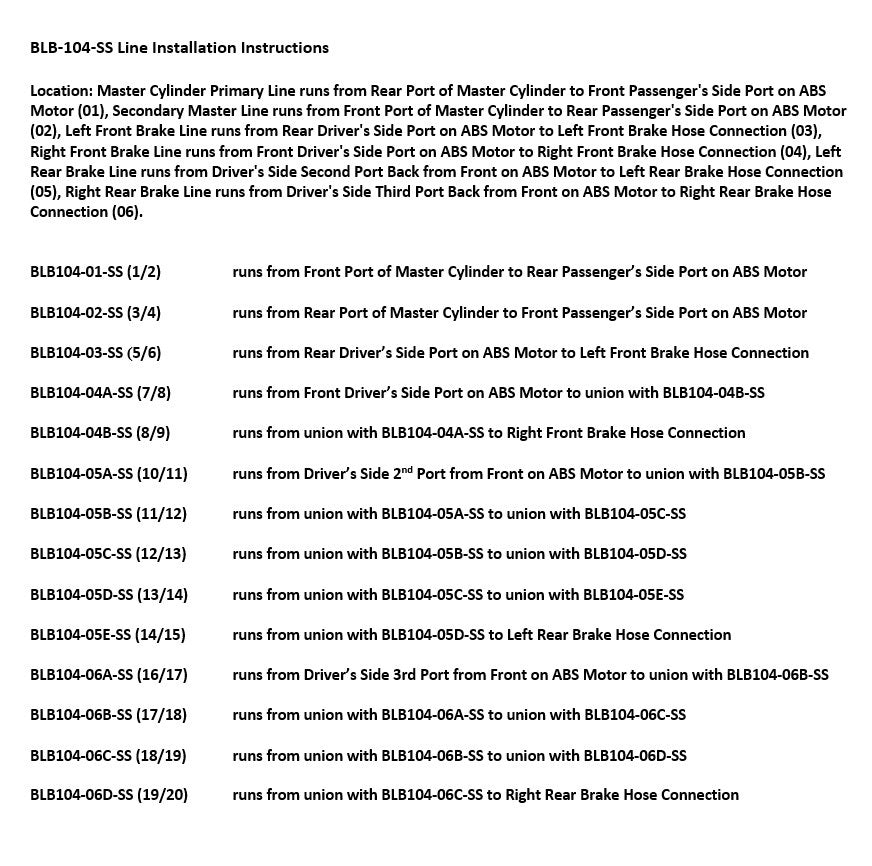

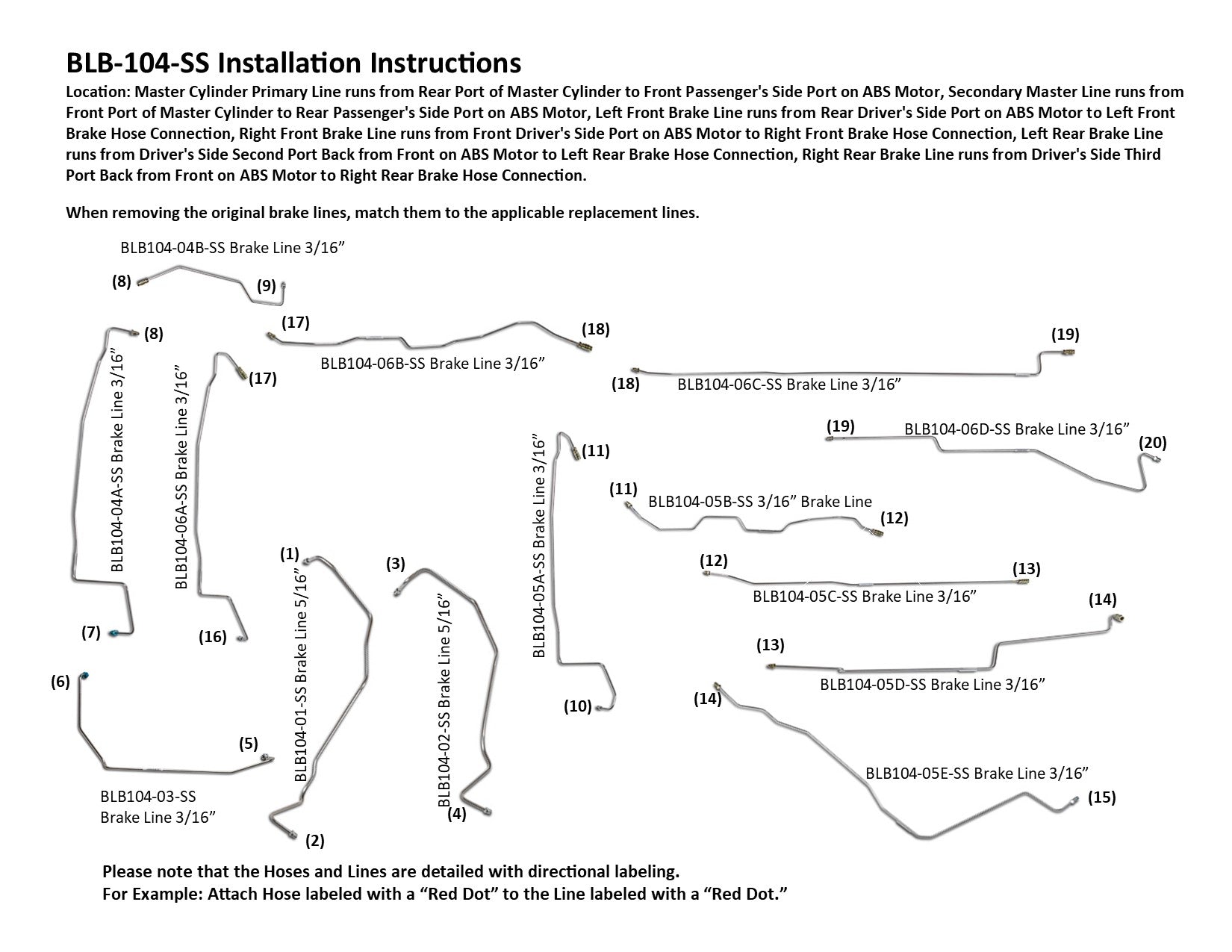

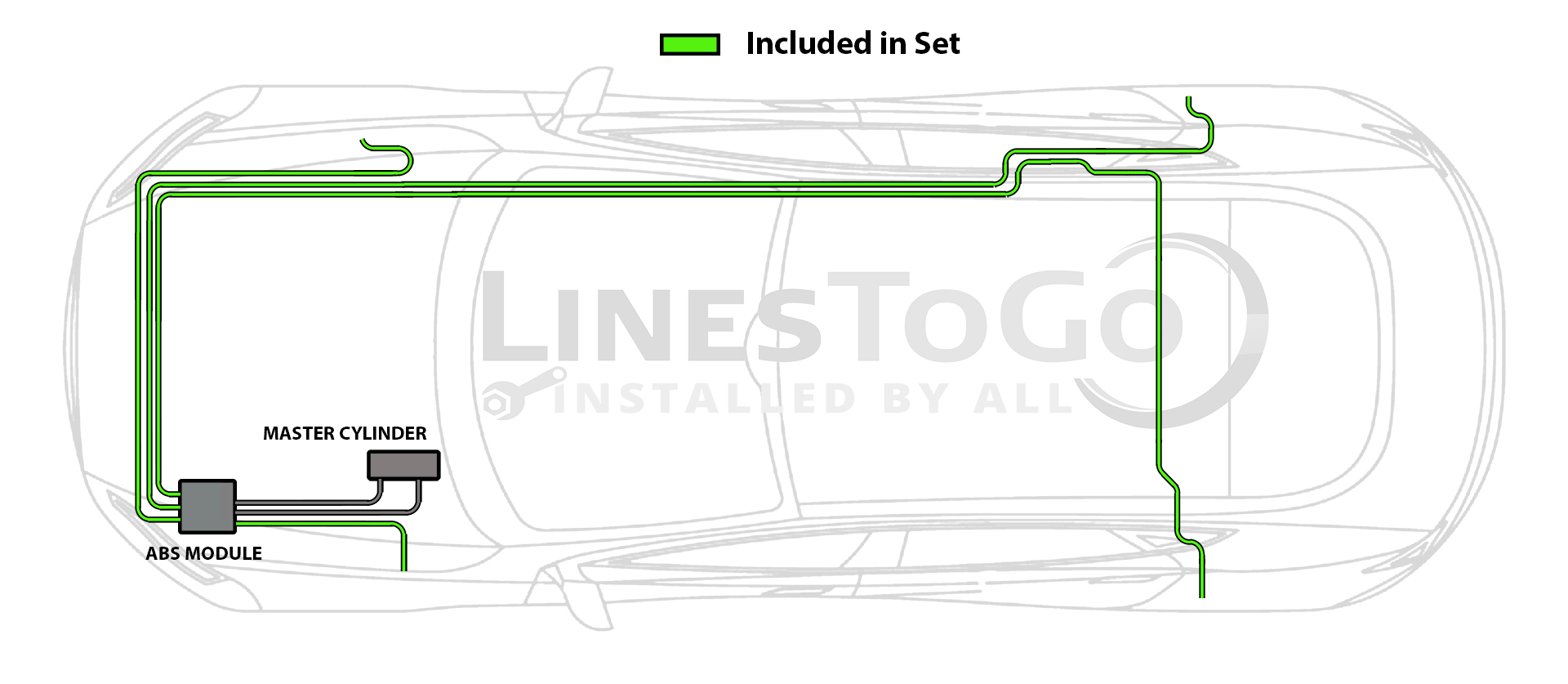

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Front Passenger's Side Port on ABS Motor, Secondary Master Cylinder Line runs from Front Port of Master Cylinder to Rear Passenger's Side Port on ABS Motor, Left Front Brake Line runs from Rear Driver's Side Port on ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Front Driver's Side Port on ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from Driver's Side Second Port Back from Front on ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from Driver's Side Third Port Back from Front on ABS Motor to Right Rear Brake Hose Connection

*All Ports on Top of ABS Motor are labeled from factory to help reference correct line location

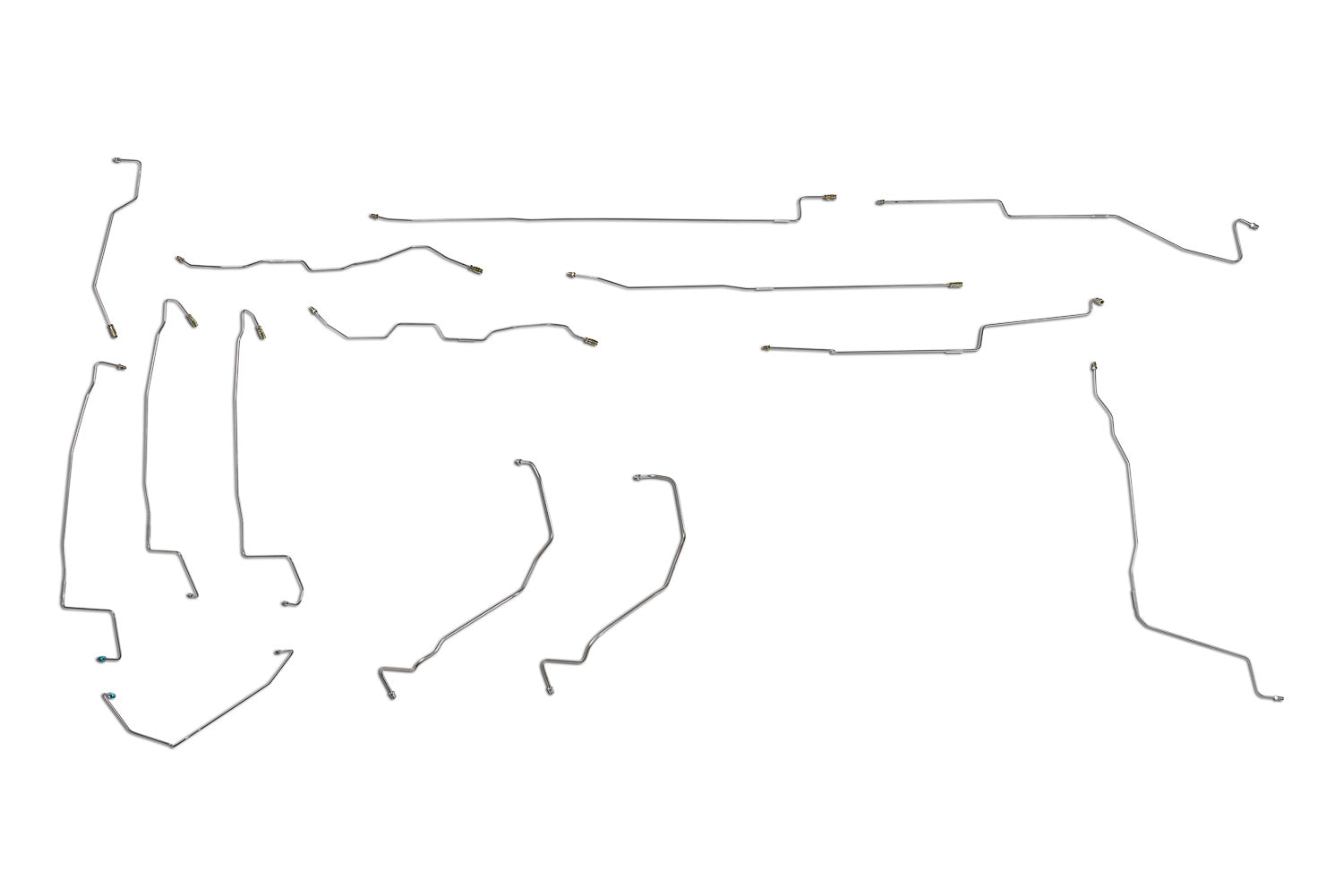

1 Master Cylinder Primary Brake Line 5/16", 1 Master Cylinder Secondary Brake Line 5/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16" (in 5 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses

15912313, 15912314

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

Avoid Ordering The Wrong Part

1-855-781-5992 (Toll Free)

Overall rating: 5.0 / 5 from 4 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Good value for the price

"I called and talked to customer service to order. She verified the kit was correct for the vehicle and completed the order over the phone. Price was reasonable. Although was free overnight, there was a delay from UPS. But it did arrive after two days and in good order. All the lines were present and in good order. Most of the lines were bent properly except a couple. One was a bit too long and the other had bends a little out of place it seemed. However, they all fit into place with some minor adjustments and seemed to have good flares and proper fittings. The instructional video was very helpful. All in all, it was a lot easier than bending and flaring my own copper lines and at an affordable price."

— Shane B. (5/5)

Made easy

"Brake lines for 2010 Buick Lucerne. Gave me exactly what I needed. Easy install. Will buy from again."

— Matt K. (5/5)

Only place to find the

"Only place to find the Buick lines"

— Andy M. (5/5)

Awesome product

"Every brake line fit , no need to make adjustments. Great job to the benders and packagers"

— michael f. (5/5)
