Buick LaCrosse CXL Fuel Line Set 2006 3.8L FL252-A4B
Buick LaCrosse CXL Fuel Line Set 2006 3.8L FL252-A4B
Delivery Time & Rates
Install our pre bent 2006 LaCrosse CXL fuel lines today!

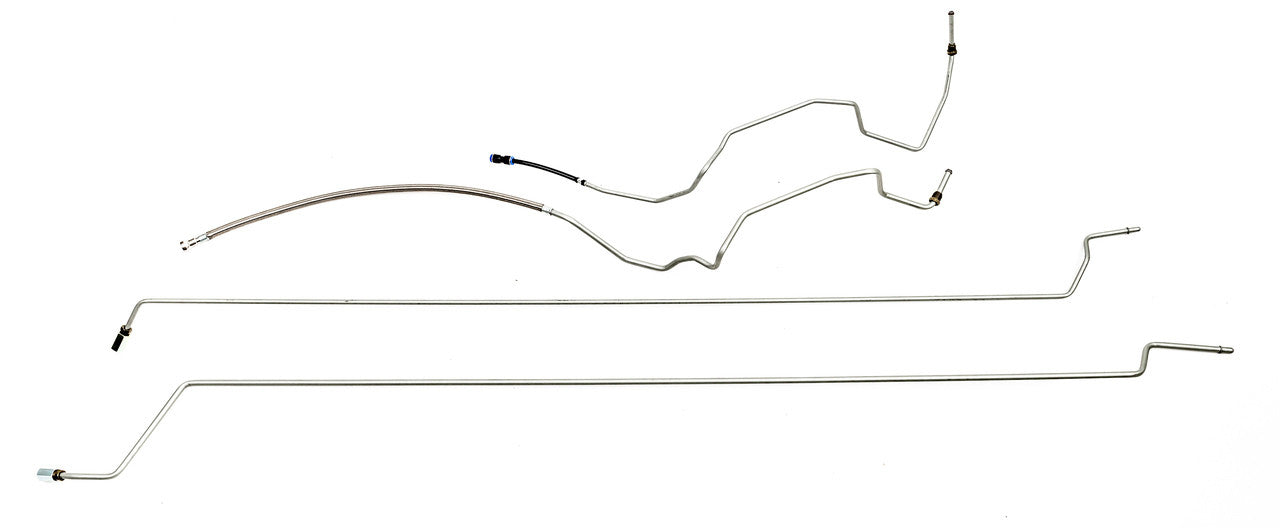

Fuel Line Set 06 Buick LaCrosse CXL 3.8L
Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SA252A313AB and SA252A375AB. See the video below on how to remove the shipping bend.
Nylon Line Attached to Vapor Line
The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.
On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.
Nylon Repair Kits
3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors
3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors
3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors
3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

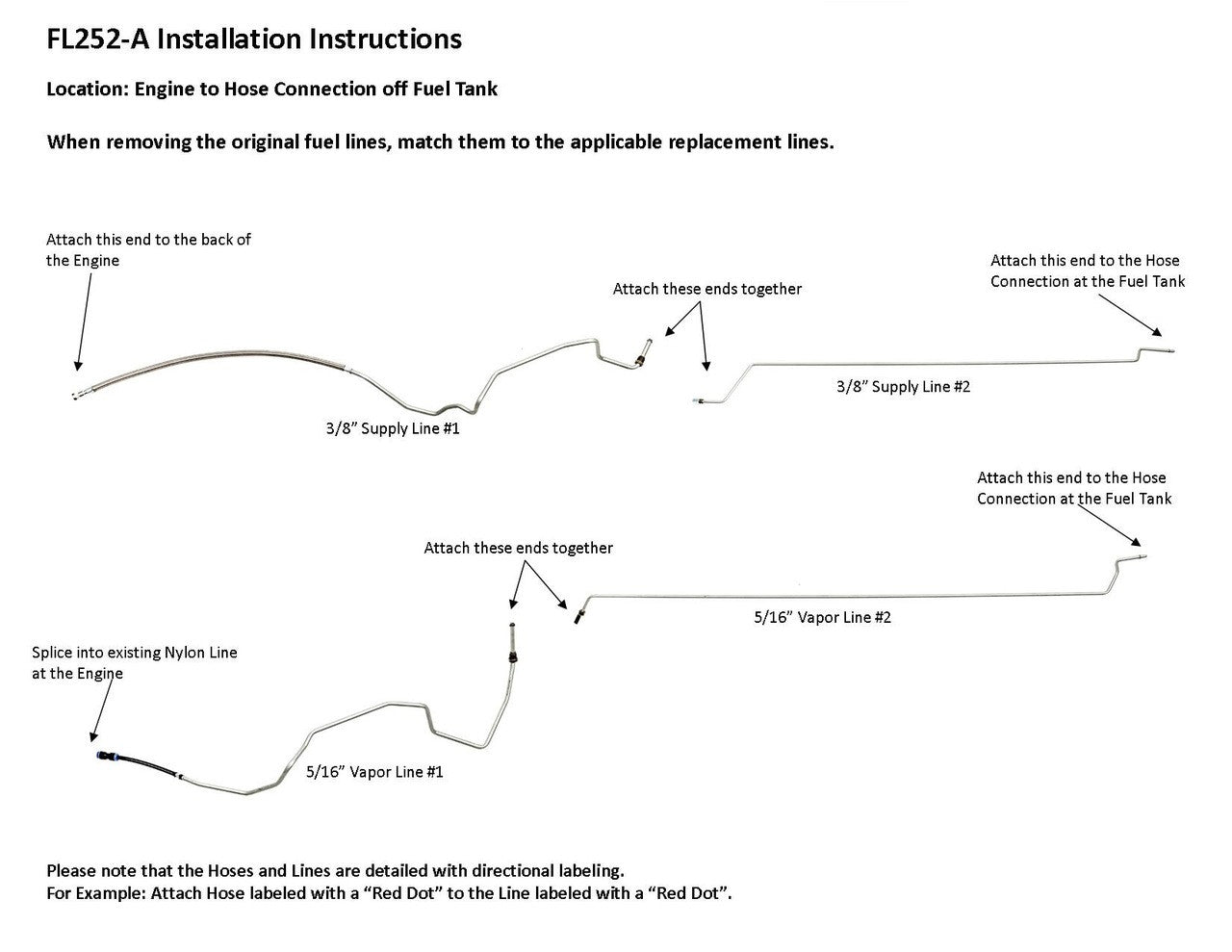

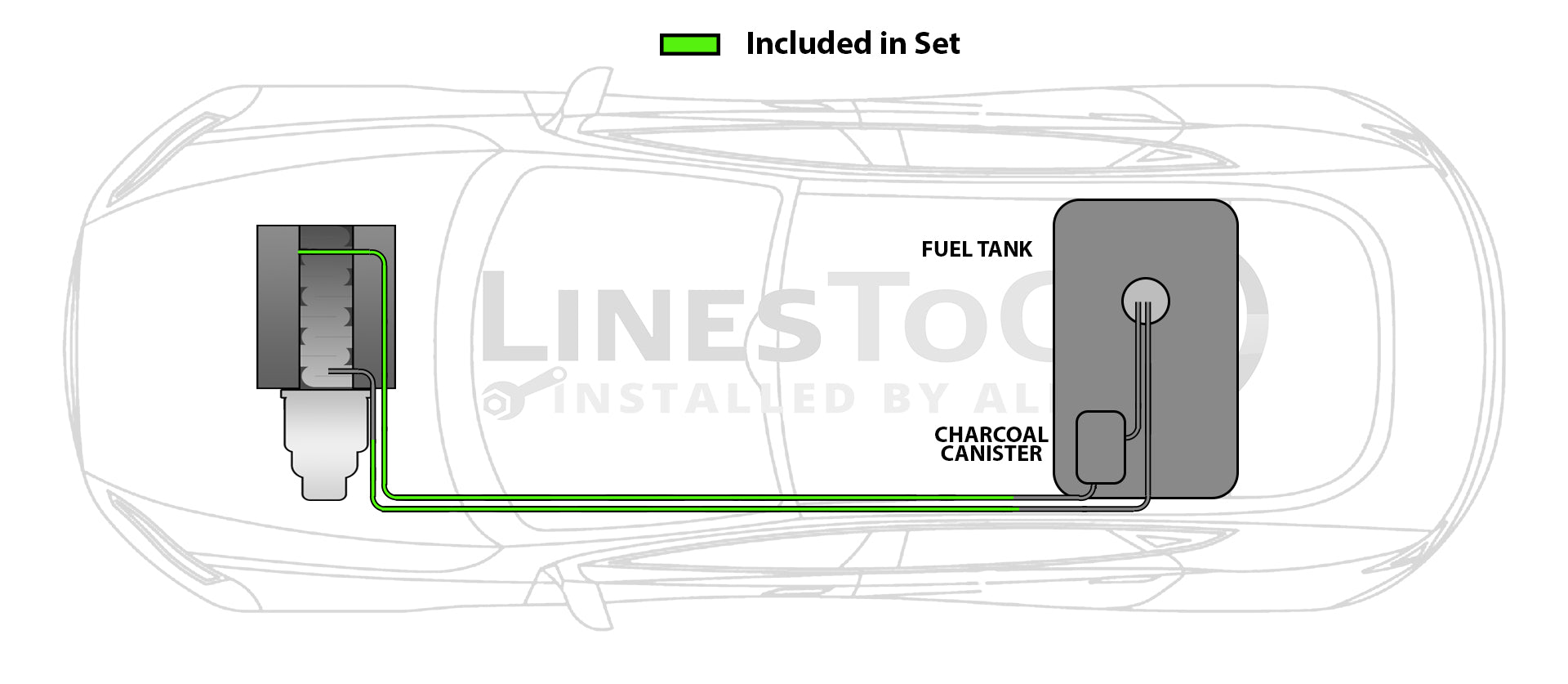

Engine to Hose Connection off Fuel Tank
1 supply line 3/8" (in 2 easy to install sections), 1 vapor line 5/16" (in two easy to install sections), hose to engine connection, nylon line with union, 2 unions
Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
