SALE:
Save $51.74
/

Delivery Time & Rates

Shipping calculated at checkout.

For 2002 models of the Acura TL 2/4 Door V6 automatic. The FL1107-1A set is made of heavy duty material for long lasting results

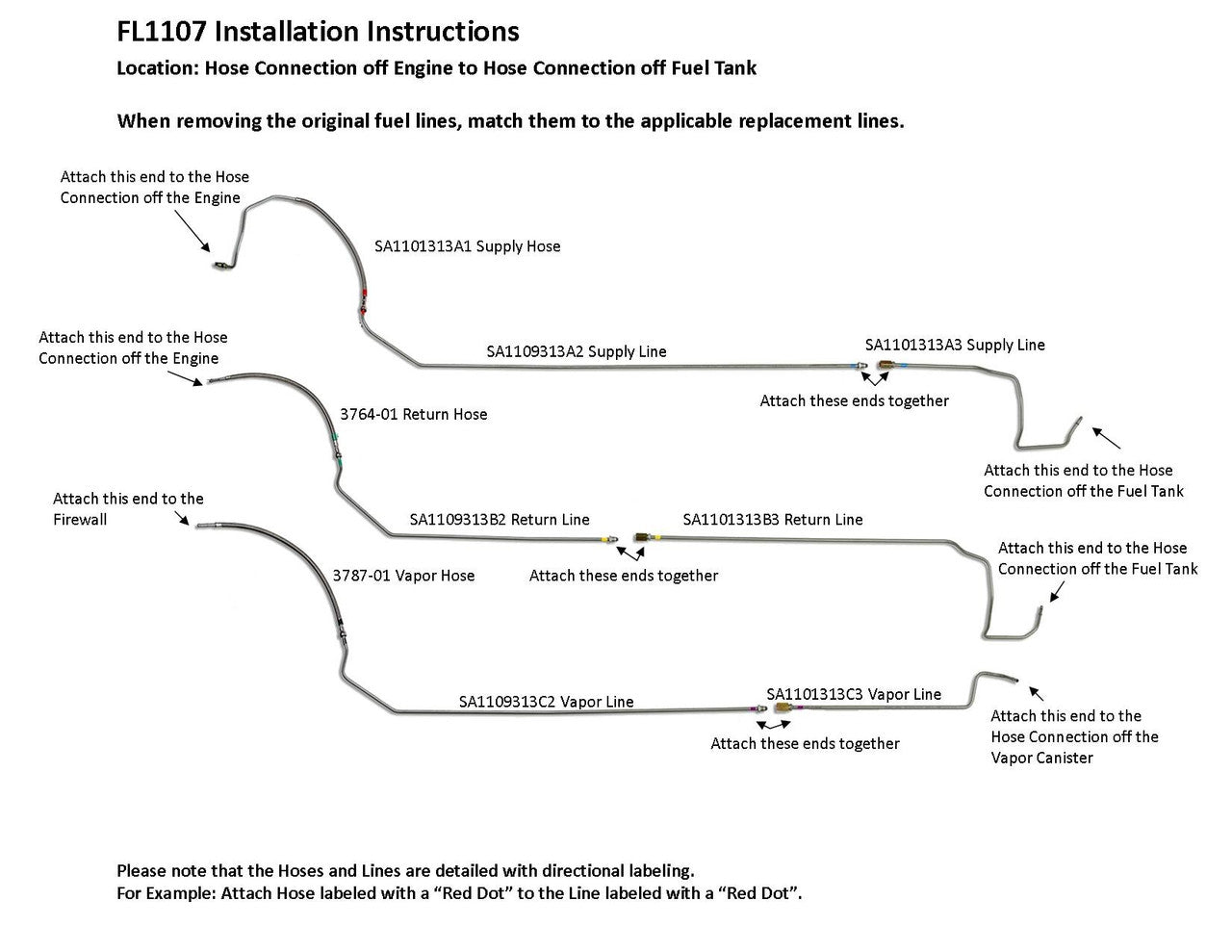

Please Note: To install line subassembly SA1101313A1YY you will need to remove the existing bracket to attach the new fuel line in order to create a proper seal.

Please Note: Before installing your fuel line, shipping bends will need to be removed from the line labeled SA1109313A2. See the video below on how to remove the shipping bend.

SKU: FL1107-1A
Box Dimensions 46" x 11" x 7"

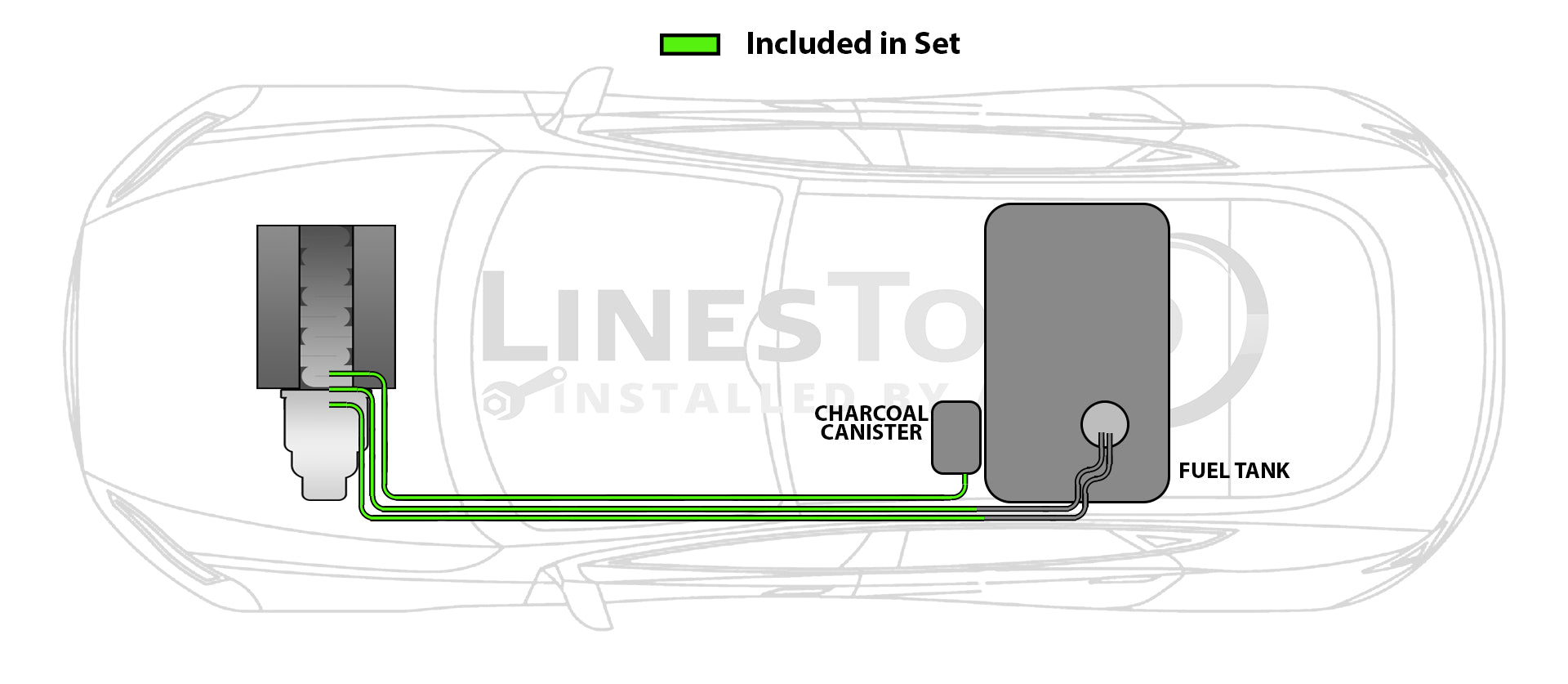

Engine to Hose Connection off Fuel Tank

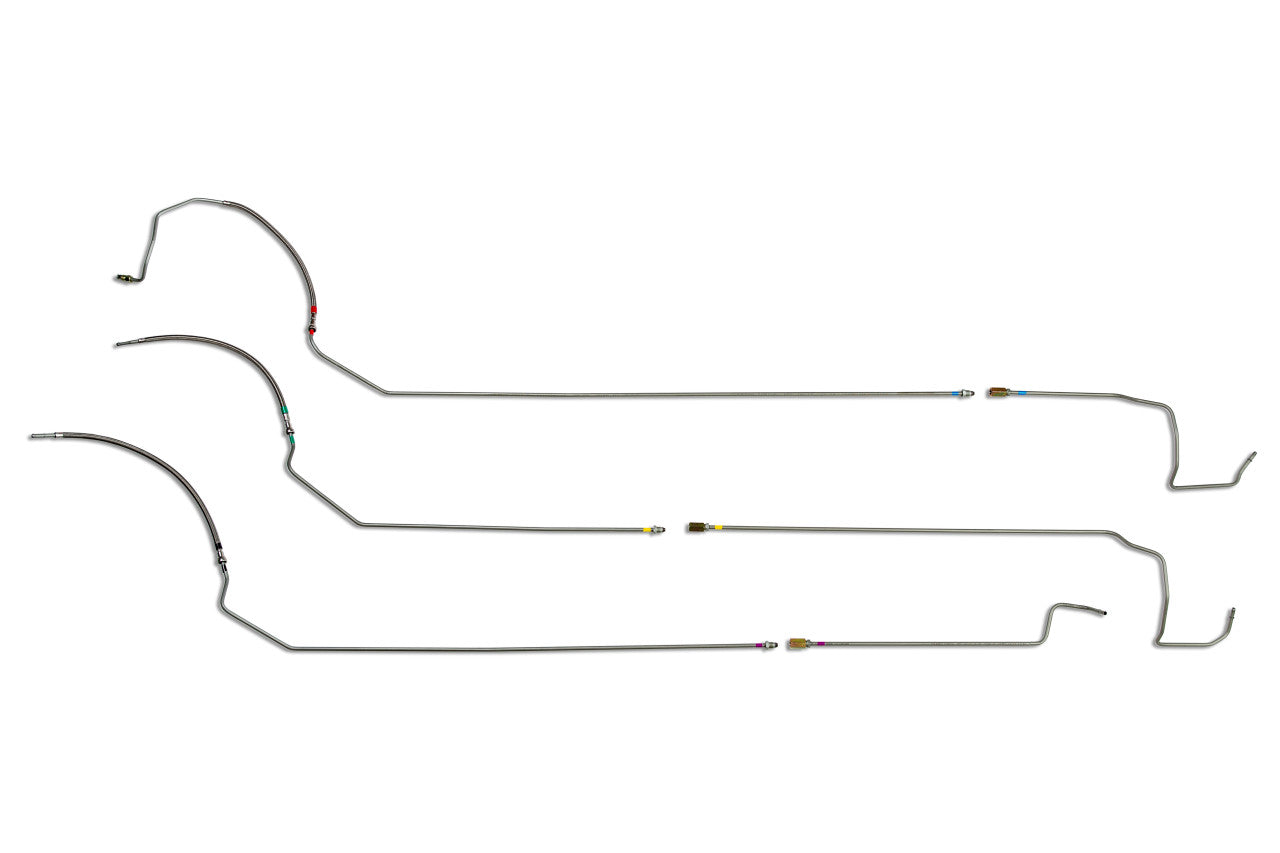

1 Supply Line 5/16" (in 3 easy to install sections), 1 Return Line 5/16" (in 2 easy to install sections), 1 Vapor Line 5/16" (in 2 easy to install sections), Hoses to Engine Connection, 3 Unions

17700-S0K-A00, 17740-S0K-A01, 17720-S0K-A01

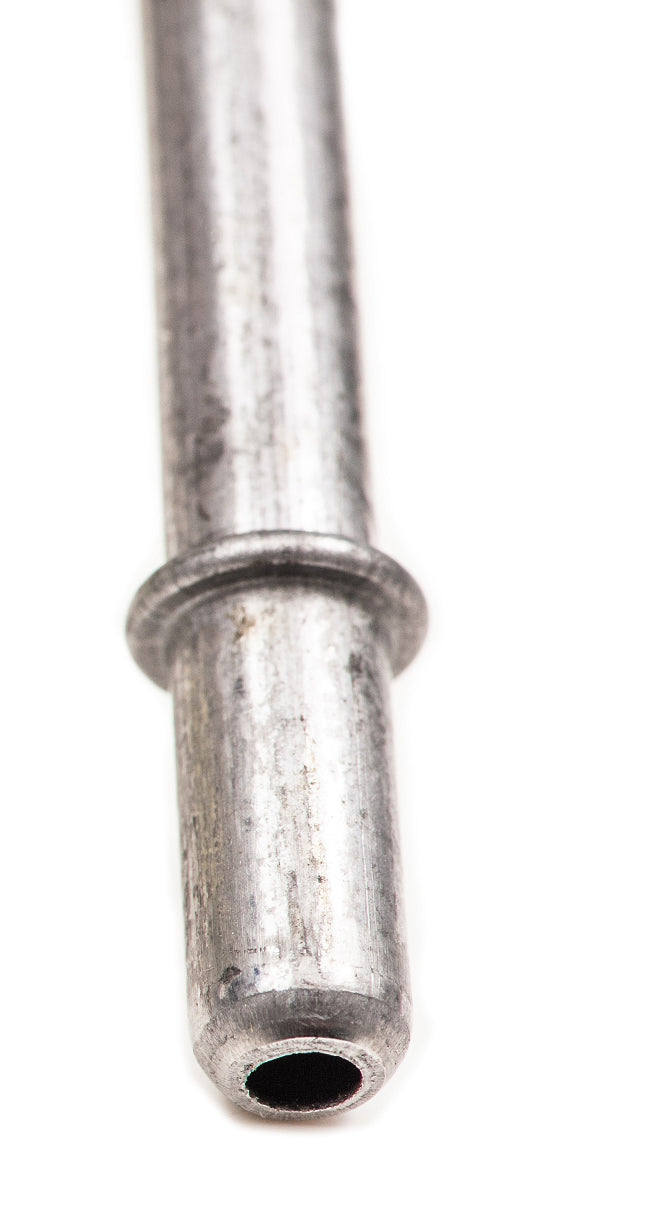

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Complete The Job With

Sale
Quick Disconnect Tool, Steel 3/8" & 5/16" 5230-01
Save $3.12

Product Overview





Overall rating: 4.75 / 5 from 8 reviews.

AI Generated Review Summary

Summary topics

Review topics: [lines].

Review highlights

Reviews

What can I say, I

"What can I say, I had Meineke installed it and all seem well. Not sure how long it would last though but the price seems good."

— David C. (4/5)

Great set, easy to install

"This kit is easy to install with the flex sections in the hard to access areas. Also they are 2 piece that make it easy to install. Only thing is, they are steel lines… I thought they were stainless steel lines like the brake line kit."

— Dan G. (5/5)

Did the job

"Nice product fast shipping. Only issue I came across was needing to redo flare on fed line on the fuel rail input, itwas not mating well and leaking fuel badly. Other than that some more detailed routing instructions would be nice, after having old lines out while waiting for new I didn't recall sequence of what line where."

— Brad S. (4/5)

Fuel line kit

"Great kit! Comes with everything you need for job. Perfect fit and loved the flexible end of lines for sneaking into engine compartment. Shipping did take a bit longer but worth it. Live in Illinois ordered on a Friday morning and received Tuesday night ."

— Russel E. (5/5)

Came very quickly and packaged

"Came very quickly and packaged well. I like the item."

— Khiem T. (5/5)

These lines were exact fit

"These lines were exact fit and was delivered earlier than expected"

— Larry T. (5/5)

Lines are better than expected!

"Lines are better than expected! Great fit!"

— Erik P. (5/5)

Great product ,very satisfy.

"Great product ,very satisfy."

— Homero C. (5/5)
