Shop LinesToGo for 2005 Silverado fuel lines -C/K2500/2500HD/3500/3500HD 6.6L Duramax Diesel

The fuel cooler line is included in all the Duramax Diesel Sets so if you are purchasing a complete set such as FL588-A, FL588-B, FL588-C, FL588-D, FL588-E, and FL588-F, the fuel cooler line will be included with this set and you will not need to purchase it separately.

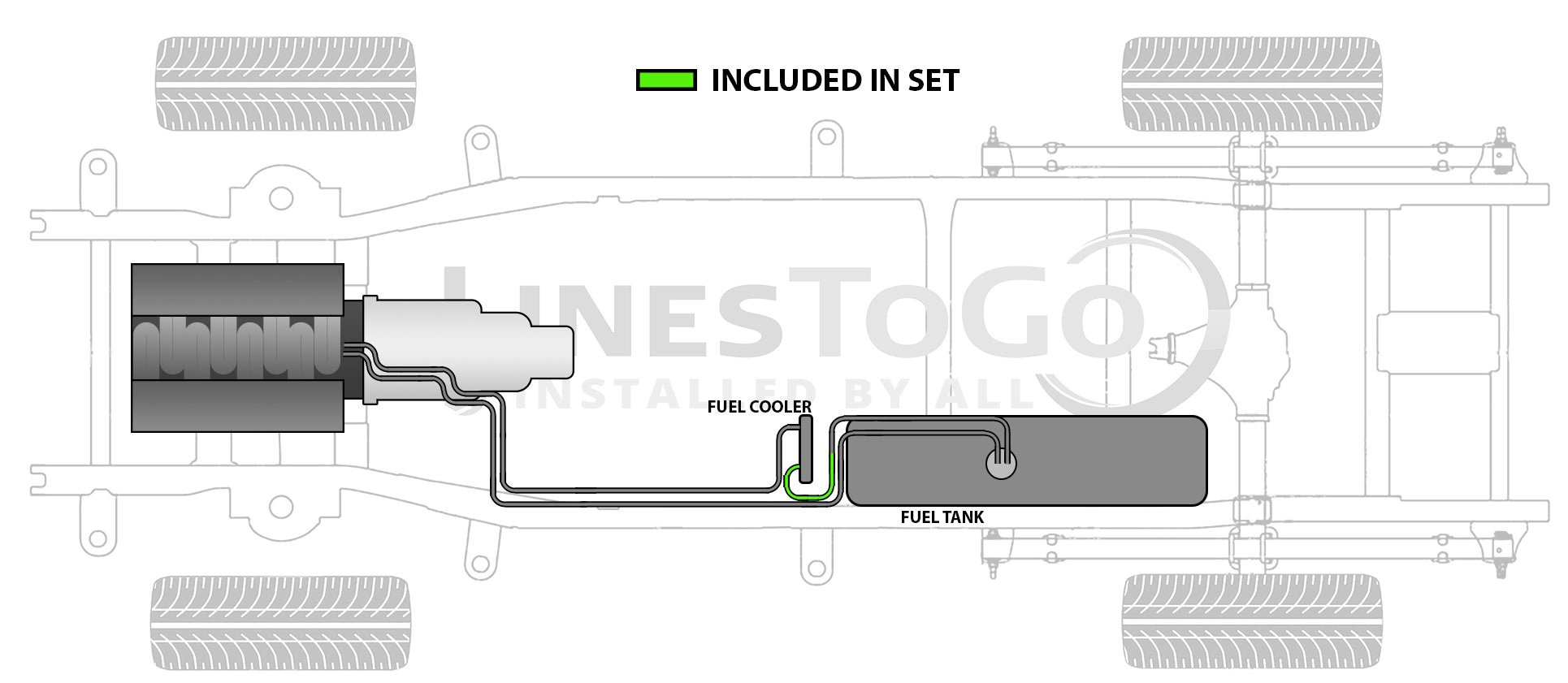

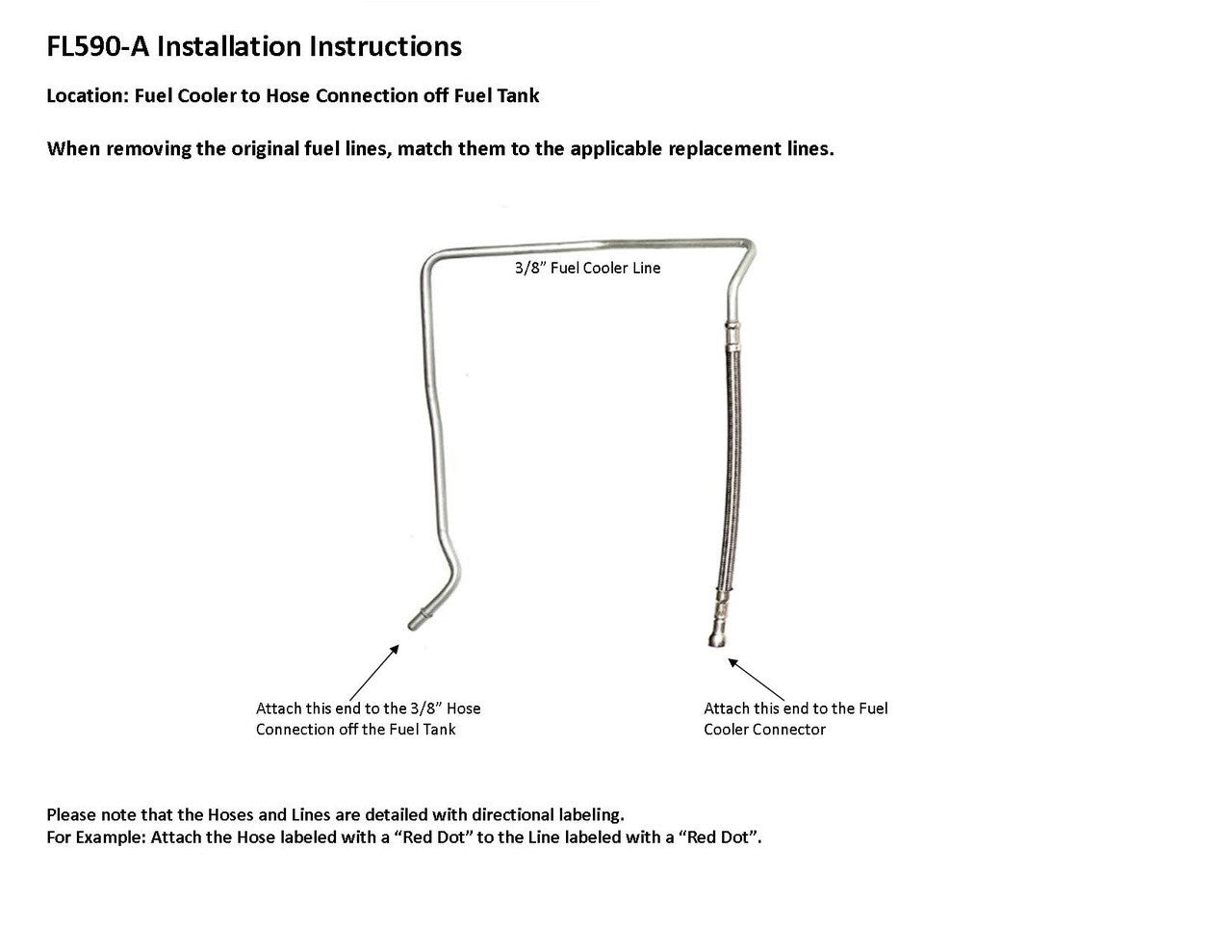

Location: Fuel Cooler to Hose Connection off Fuel Tank

Please Note: If you have purchased an aftermarket replacement fuel cooler, the fuel cooler connector lines attached to the fuel cooler may be different than the OEM fuel cooler connector lines. As shown in Illustration A, the aftermarket fuel cooler connector lines are made with a straight sharp edge. When these are plugged into the fuel cooler line, they will cut the o-ring inside the connector causing a leak. If you wish to replace the fuel cooler connector lines before installation of the fuel cooler line, they are available to purchase under part number FL591-A as shown in Illustration B.

We are unable to warranty any of our products that are damaged by aftermarket fuel cooler connector lines.

Illustration A                                                                             Illustration B

Aftermarket fuel cooler connector line:                           FL591-A/OEM fuel cooler connector line

Straight Sharp Edge                                                                  Rounded Beveled Edge

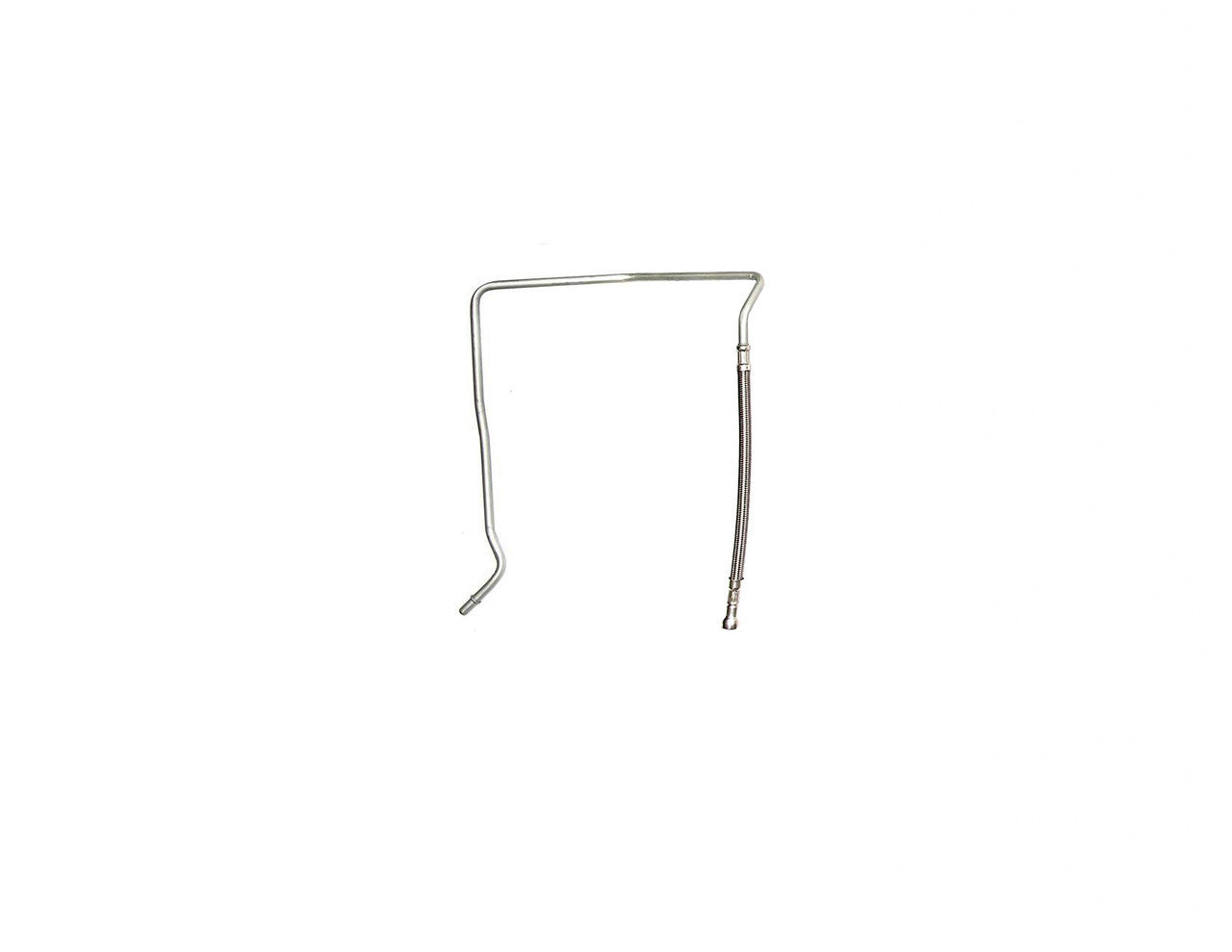

Included in Set: 1 fuel cooler line 3/8" , hose to fuel cooler

Tube Construction: Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 20" X 12" X 7"
